Approvals
• ABS Option
• Fully 316 Stainless Steel Option
• Shroud or unshrouded
• Robust structure for harsh environments
• LED lighting under button on ES2
• 2NC + 1NO contact options
• IP69K rating (Stainless Steel version)
The Emergency Stop units are designed to fit in manufacturing areas. The ES units can come with or without a padlockable shroud. The ES1 & ES2 can be operated by pressing the emergency stop button (Red), and it can then be reset by twisting the emergency stop button.
The ES1 & ES2 use force guided contacts, which allow them to be safely guarded and adhere to the machinery directive.

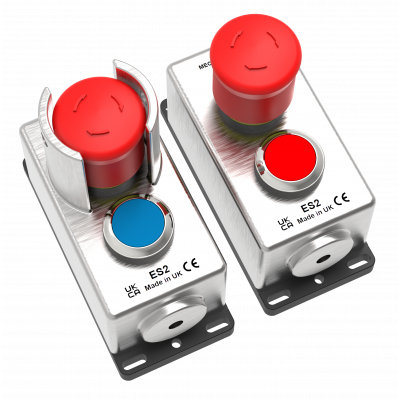

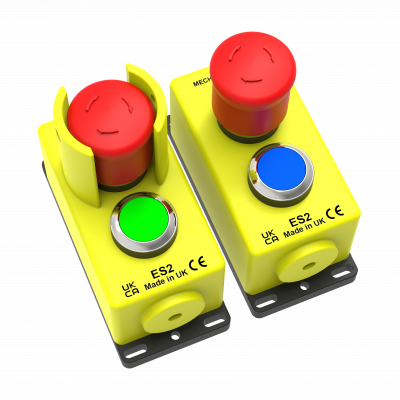

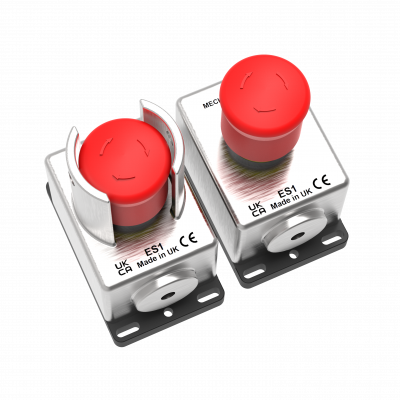

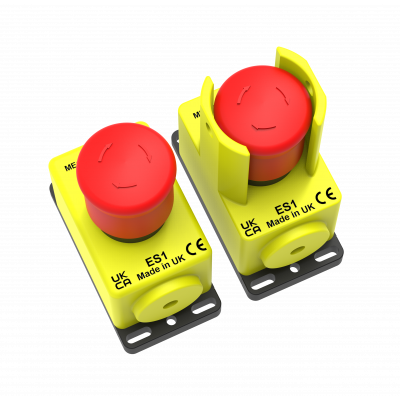

The ES1 & ES2 units are available in ABS, or 316 Stainless Steel housing. They are easy to install with correct installation, these safety switches comply with the guidelines given in EN60947-5-1.
Fit & Forget - Safety from Mechan
The Emergency Stop units are designed to fit in manufacturing areas. The ES units can come with or without a padlockable shroud. The ES1 & ES2 can be operated by pressing the emergency stop button (Red), it can then be reset by twisting the emergency stop button.
SYSTEM OPERATION
The ES1 & ES2 operates by the pressing of the red button into the switch to cause the contacts to switch simultaneously.
By twisting or pulling the red button, the user can achieve positive actuation.
An ES1 & ES2 with a shroud is available in ABS or stainless steel, this is to stop nuisance activation of the E-stop and to padlock the E-stop so that it cannot be restarted.
INSTALLATION
The Foot of the E/Stop base needs to be screwed down first.
The E/stop can now be slid into position under the foot.
Now the top part of the E/stop can be screwed into position.
Now the E/stop device is fitted securely into position.
