TG1 ACCESSORIES

TG1 ACCESSORIES TG1 ACCESSORIES

Approvals

CE Approved TUV UL

Housing:
    316 Stainless Steel Head
Components:
    Standard Actuator, Flat Actuator, Flexible Actuator, Actuator Guide
Contact Rating:
    None
Contact Force Min:
    None
Indication:
    None
Ingress Protection Rating:
    IP67

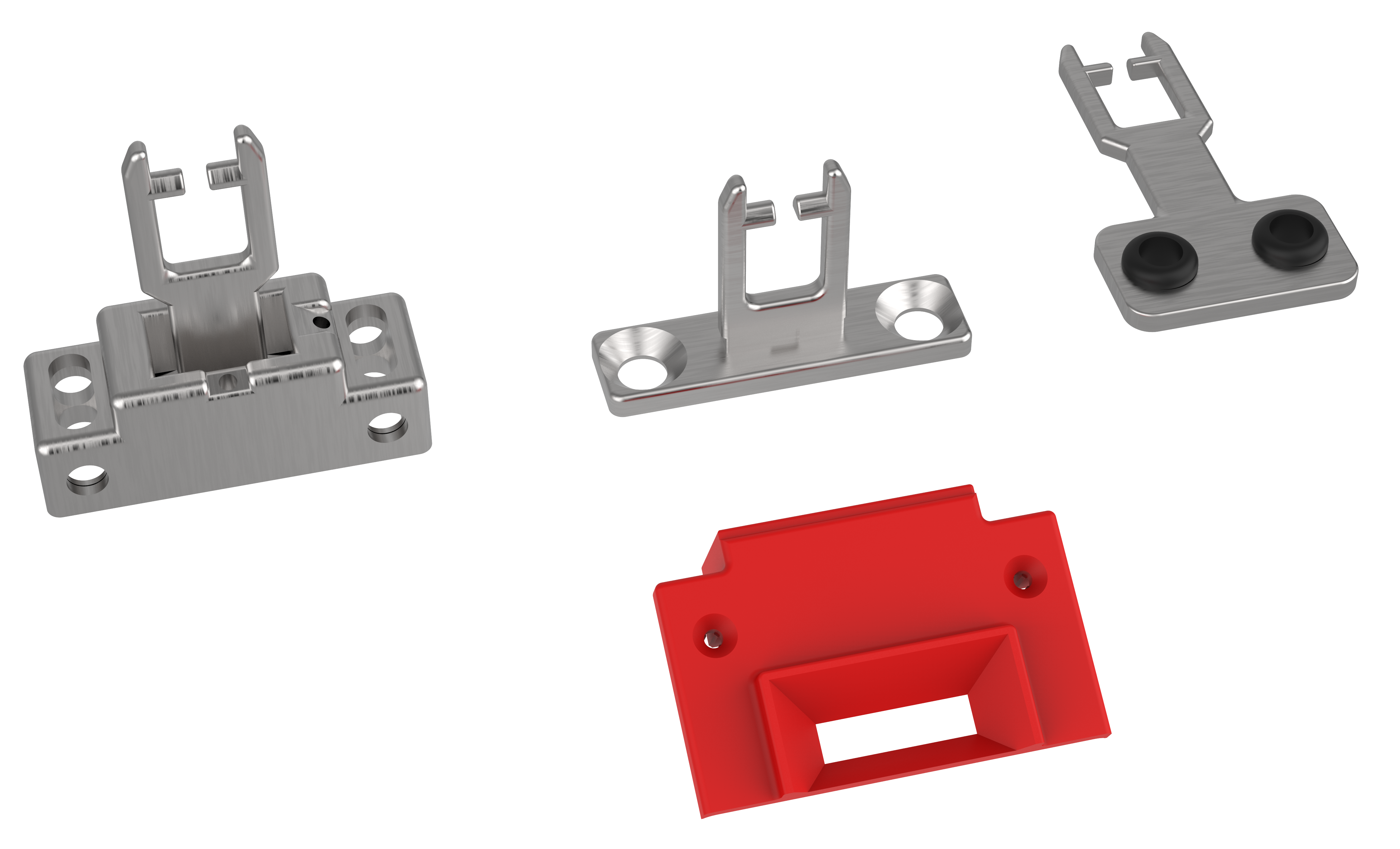

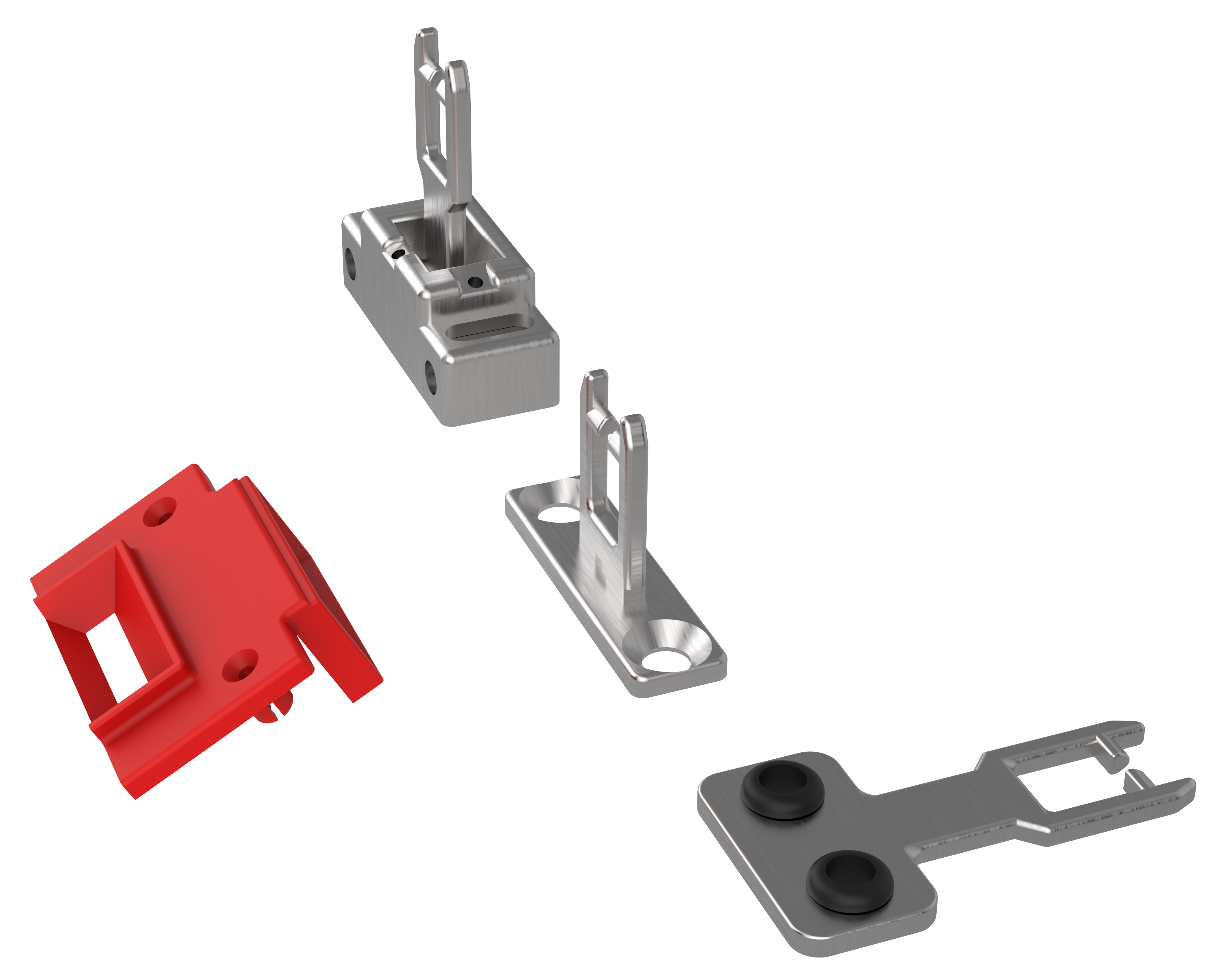

The TG1 accessories consist of 4 parts. Standard actuator that can be used with all TG1's. Flat actuator that is only 3.5mm in height. Flexible actuator that has great flexibility in all directions, this is most suitable for gate sagging.

The actuator guide adds another level of flexibility to the TG1 as it guides the actuator into position. This compensates for any gate sag or misalignment.



Product Code Description Part No. Quote options Added to Basket
316.020 ST / TG1 Standard Actuator ST (TG1 Standard Actuator SS)
Qty: - +

316.021 FLX / TG1 Flexible Actuator FLX (TG1 Flexible Actuator SS)
Qty: - +

316.022 FLT / TG1 Flat Actuator FLT (TG1 Flat Actuator SS)
Qty: - +

316.023 TG1 Actuator Guide TG1 ACT GUIDE SET
Qty: - +

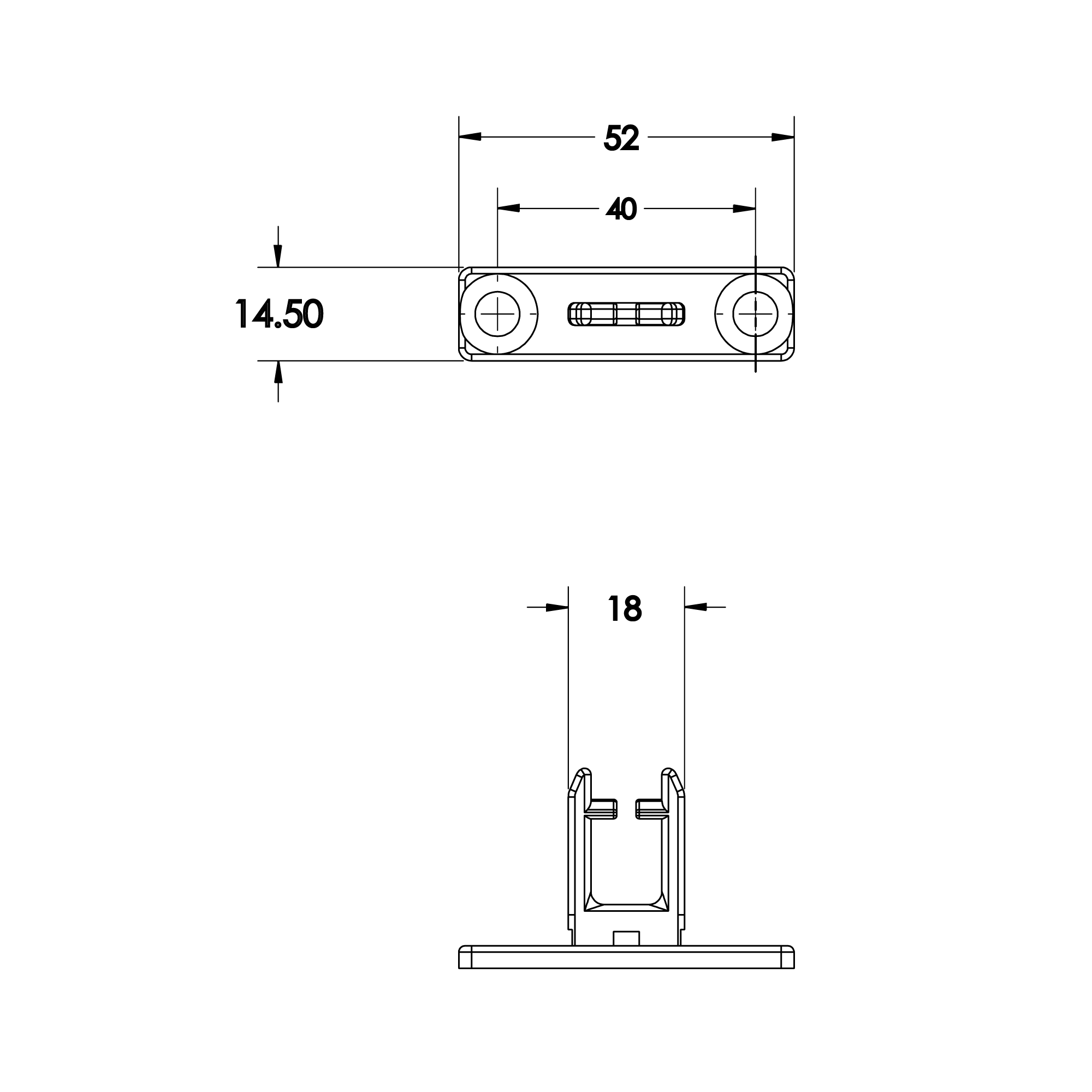

STANDARD ACT DIMENSION DRAWING

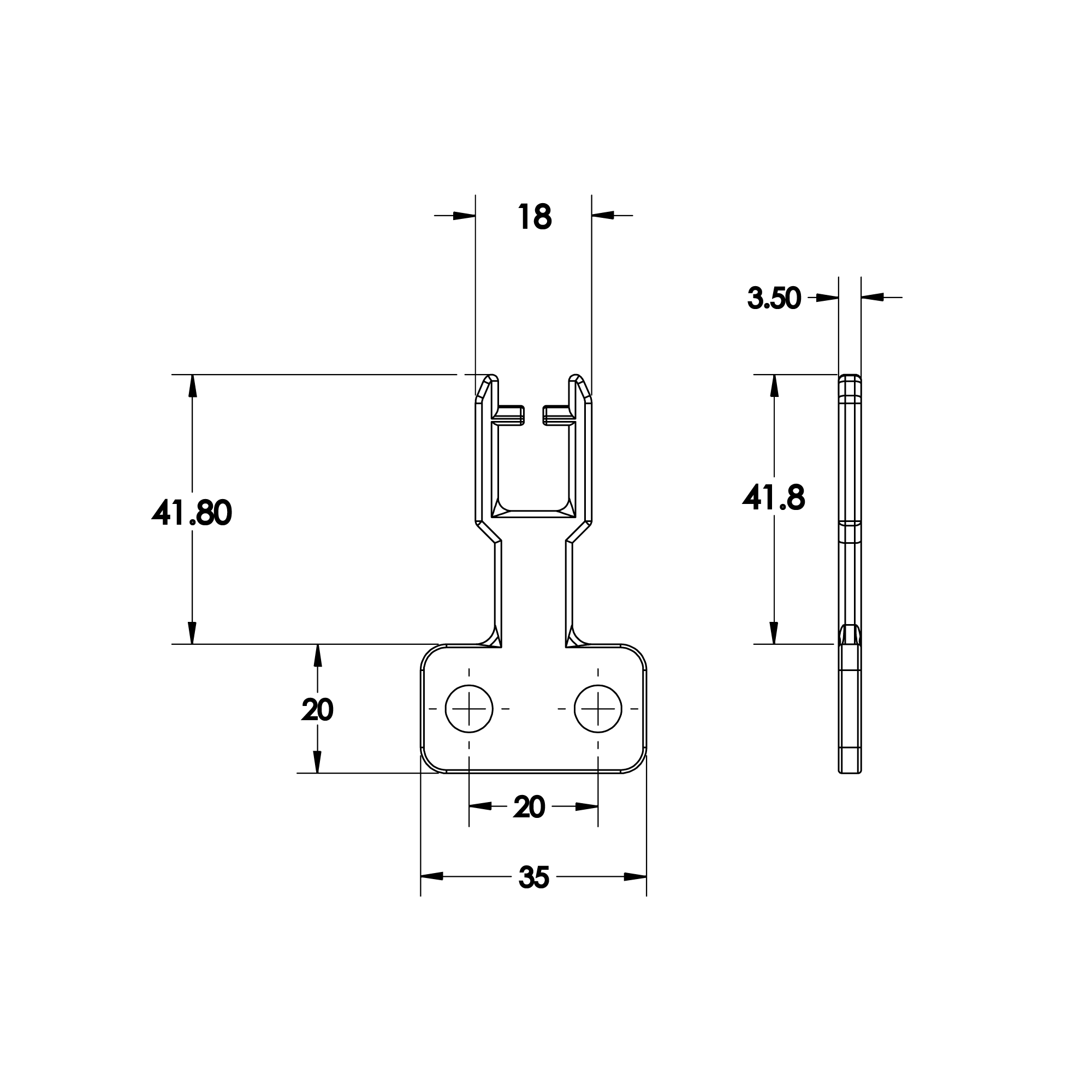

FLAT ACT DIMENSION DRAWING

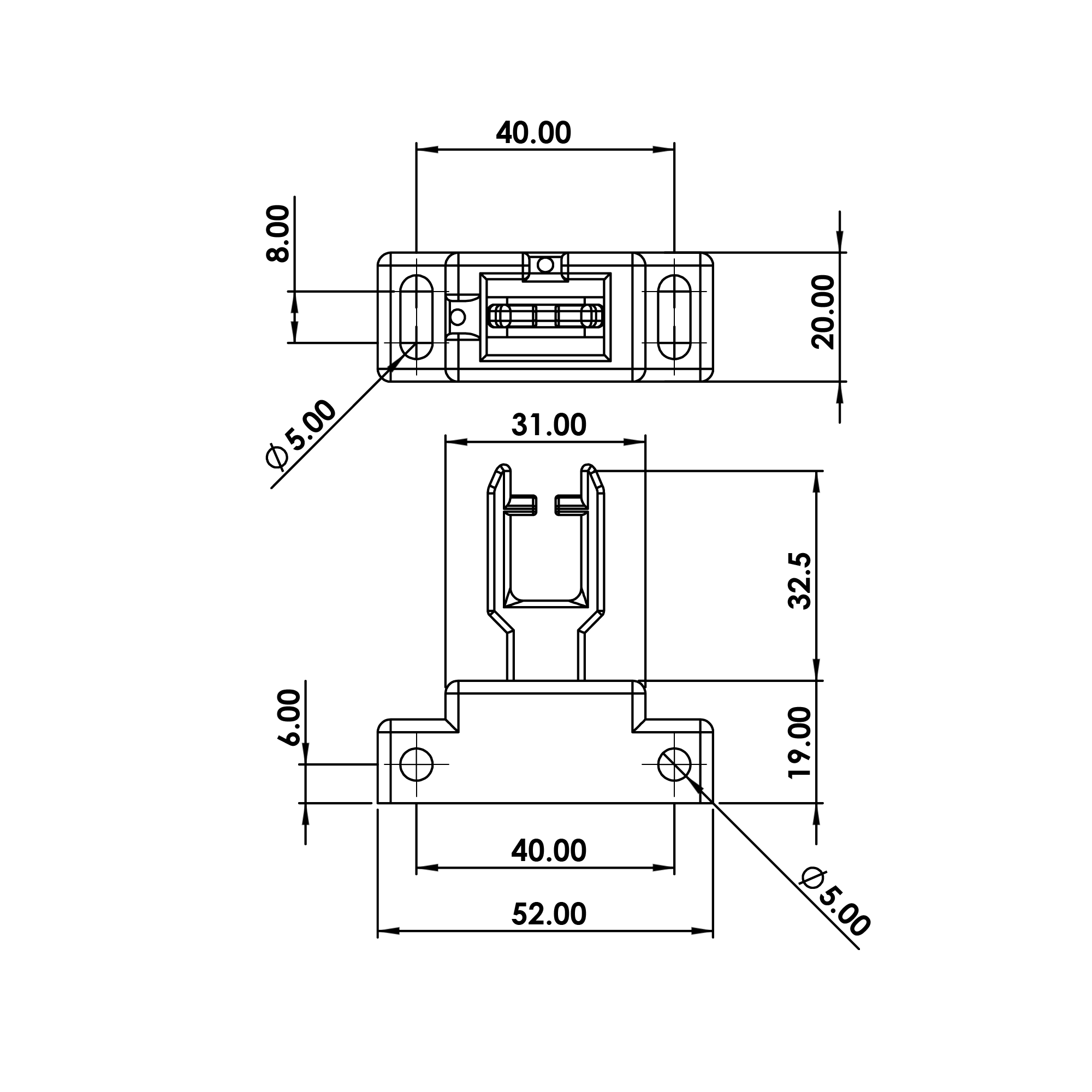

FLEXIBLE ACT DIMENSION DRAWING

Technical Specifications
Construction 316 Stainless Steel Head
IP Rating IP67
Mounting M4 Torx security screws (tightening torque 1.0NM)
Environmental Specifications
Safety Related Data
File Title File Name Download File
XXX XXX Iss1 MECHAN TG1 Installation Guide XXX-XXX-Iss1-MECHAN-TG1-Installation-Guide.pdf PDF (925 KB)
