TG1 ABS WITH SSH

TG1 ABS WITH SSH TG1 ABS WITH SSH

Approvals

CE Approved TUV UL

Housing:
    ABS with 316 Stainless Steel Head
Contacts:
    2NC + 2NO (with door open)  or  3NC + 1NO (with door open)
Contact Rating:
    2Amp - 24VDC
Contact Force Min:
    20N
Indication:
    None
Ingress Protection Rating:
    IP67

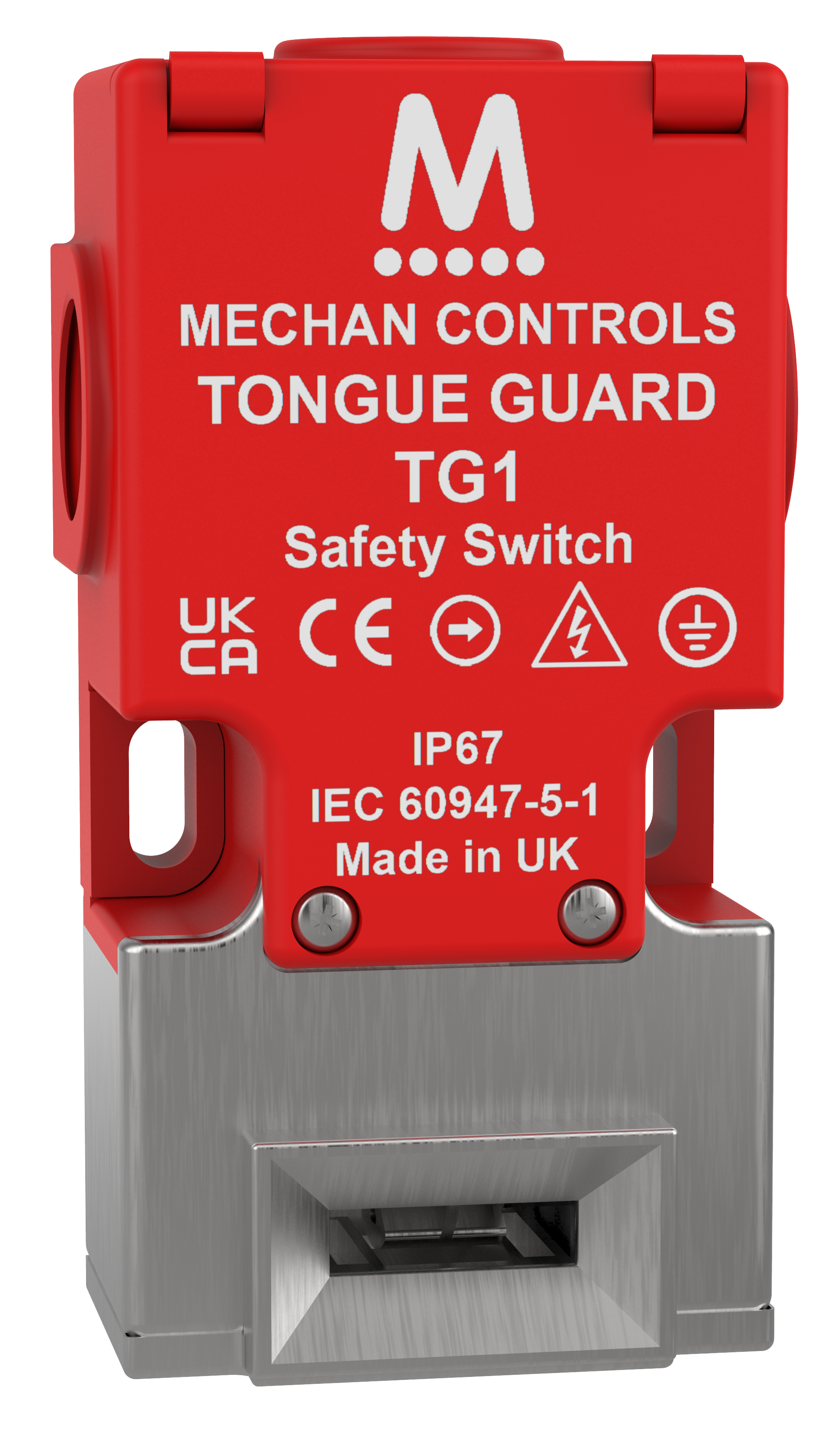

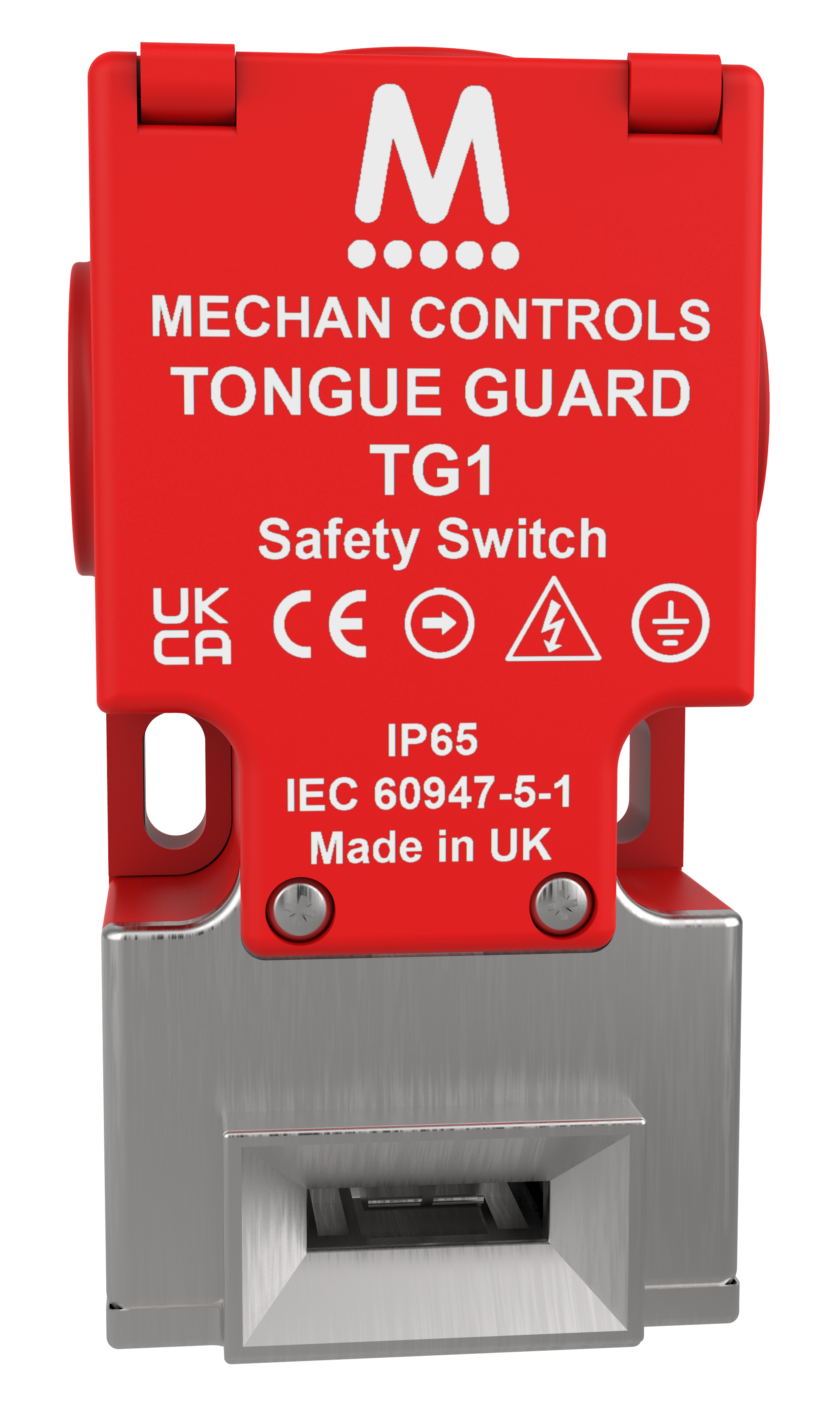

TG1 is standalone, mechanical interlock safety device. With 2NC or 3NC safety outputs and 2NO or 1NO auxiliary contacts, capable of switching 2A at 24Vdc. The TG1 is mechanically operated safety device, maintaining PL-e.

The TG1 includes a rotatable head for switching at different positions. The TG1 mechanical safety interlock does not come wired and would need to be installed by an engineer on site.



Product Code Description Part No. Quote options Added to Basket
316.005 TG1 / 2NC + 2NO contacts / 316 Stainless Steel Head TG1-22-SSH
Qty: - +

316.006 TG1 / 3 NC + 1 NO contacts / 316 Stainless Steel Head TG1-31-SSH
Qty: - +


DIMENSION DRAWING 1

DIMENSION DRAWING 2

DIMENSION DRAWING 3

Technical Specifications
Safety Contacts 2NC or 3NC
Rated Insulation Voltage (Ui) 500V
Thermal Current 10A
Construction ABS Body + 316 Stainless Steel Head
IP Rating IP67
Mounting M4 Torx security screws (tightening torque 1.0NM)
Auxilliary Output 2NO or 1NO
Coding Mechanical
Dimensions of Switch (mm) 101 x 52 x 33
Head Rotation 360 Degrees
Environmental Specifications
Operating Temperature -20°C to +80°C
Safety Related Data
PL in accordance with EN ISO 13849-1 PL-e
SIL CL in accordance with EN IEC 62061 SIL3
PFHd in accordance with EN IEC 62061 4.3 x 10-8
PFH 6.52 x 10-8
B10d 2,000,000
MTTFd High > 100 Years (Based on usage rate of 360 Days/
TM > 20 Years
DC 99%
SFF 98%
File Title File Name Download File
XXX XXX Iss1 MECHAN TG1 Installation Guide XXX-XXX-Iss1-MECHAN-TG1-Installation-Guide.pdf PDF (925 KB)
