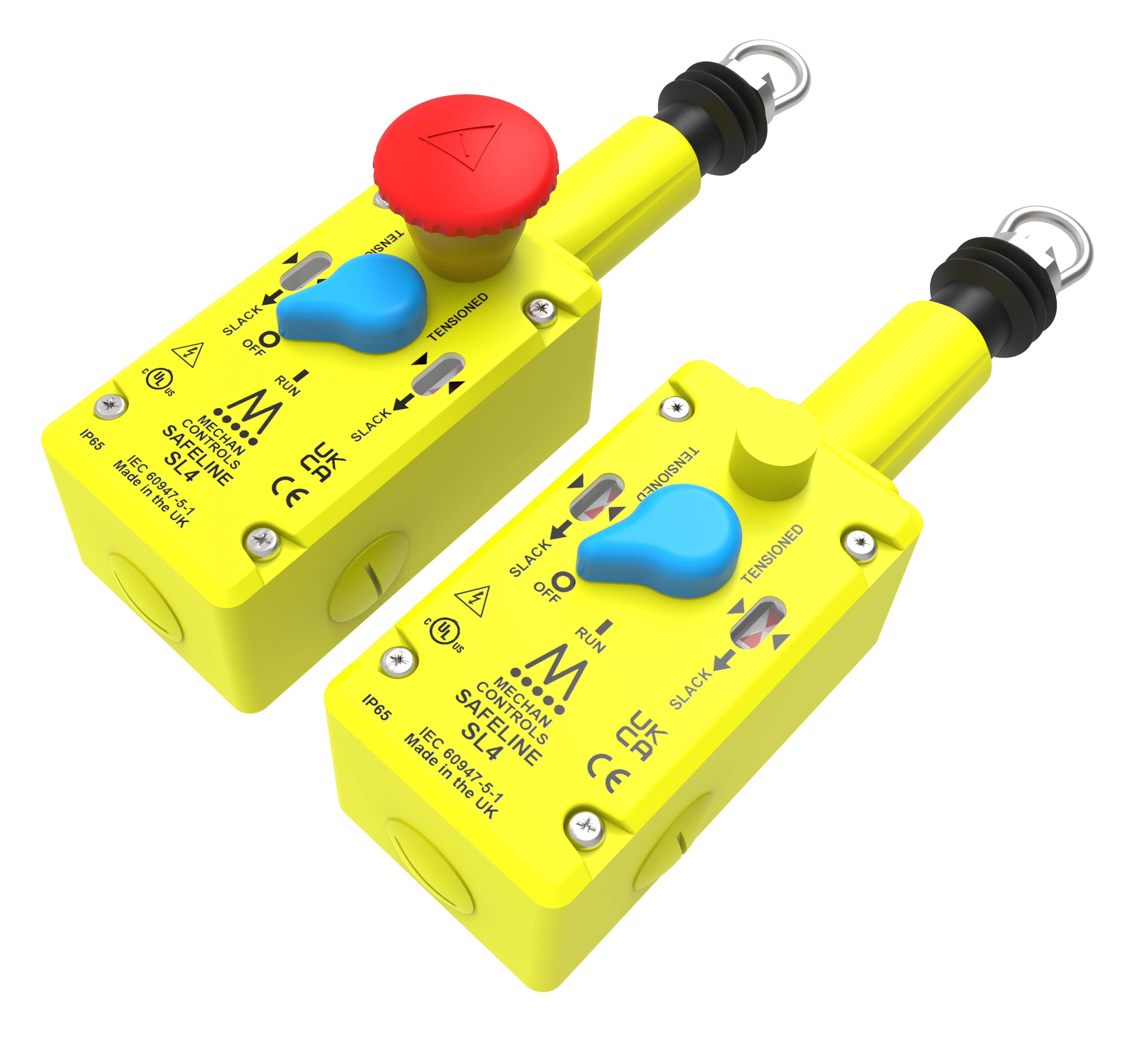

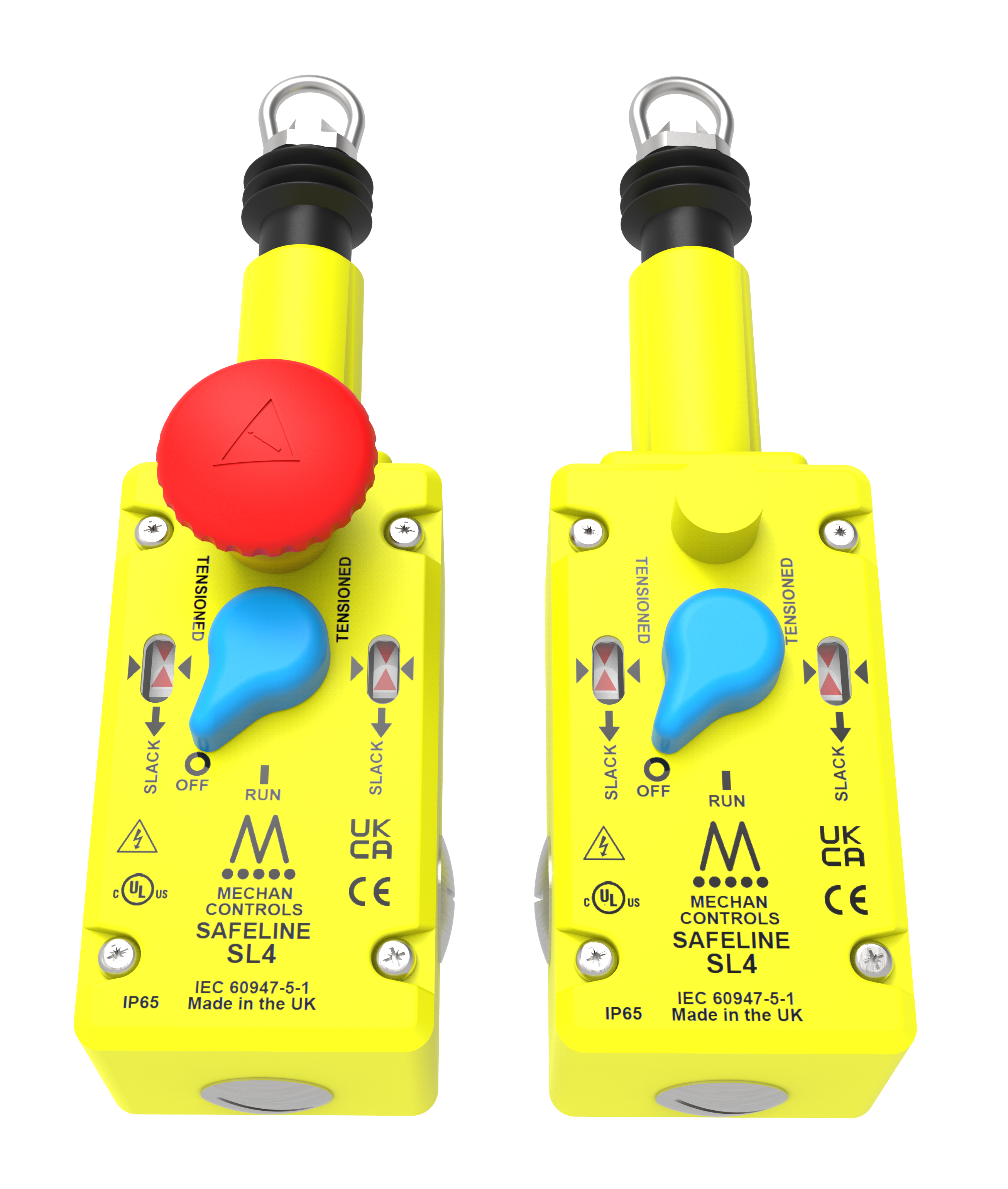

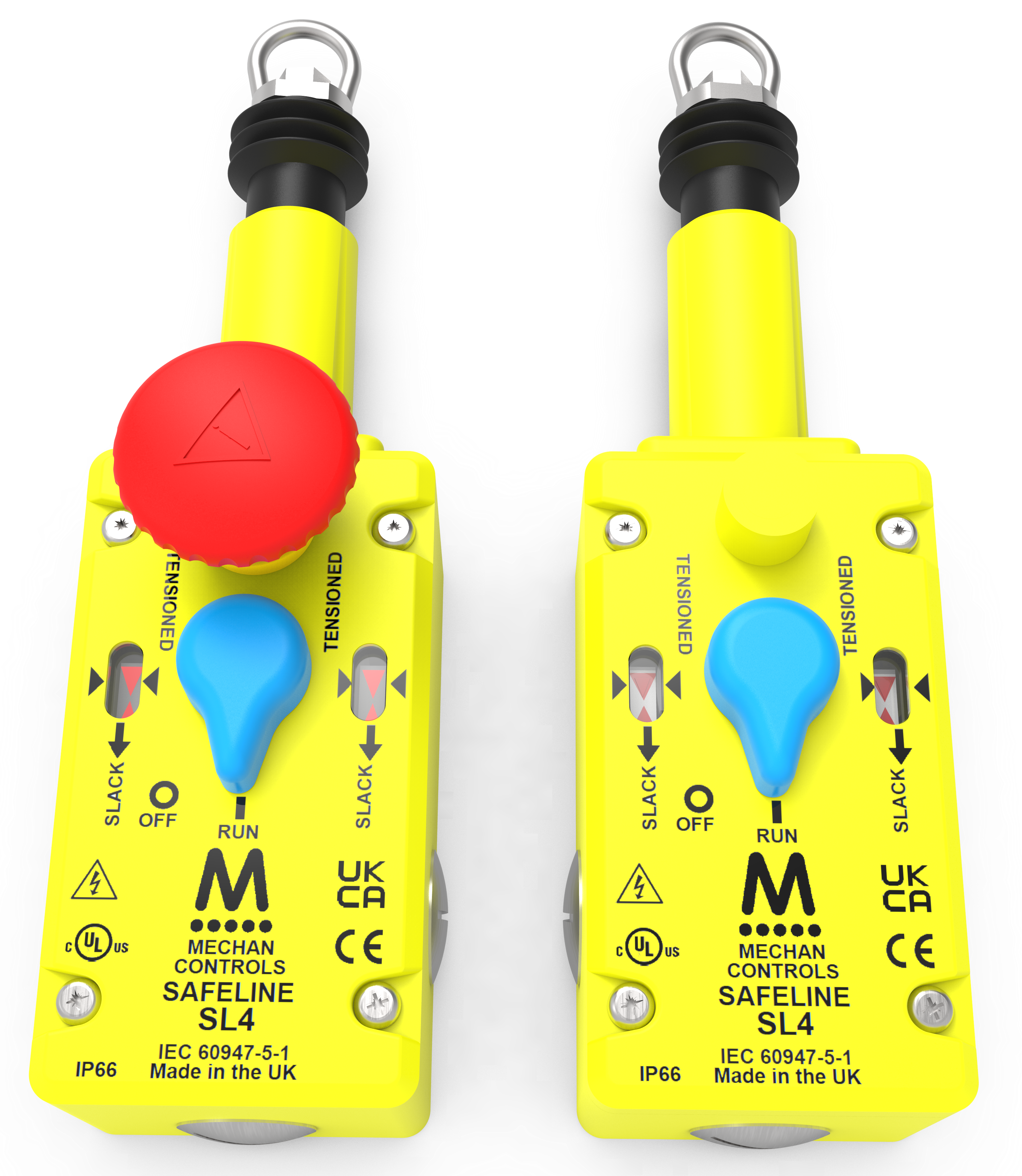

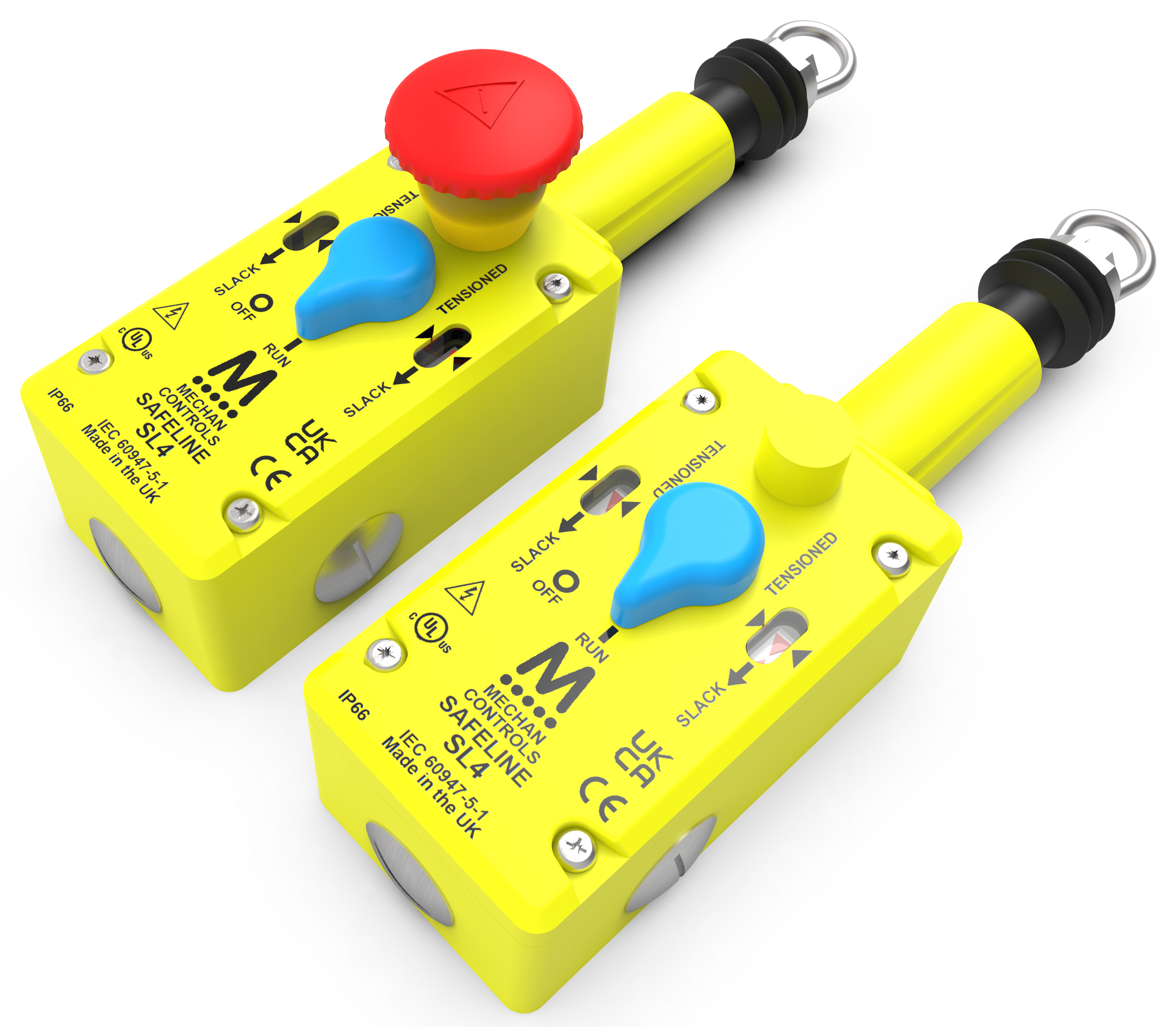

SL4 Diecast Grabwire

SL4 Diecast Grabwire SL4 Diecast Grabwire

Approvals

CE Approved TUV UL

Housing:
    Diecast
Contacts:
    2NC + 2NO or 3NC + 1NO
Technology:
    Mechanical
Indication:
    2 x Tension Indication Screens
Ingress Protection Rating:
    IP66

The diecast Safeline 4 cable/push button operated system can be installed where no physical guard is present on conveyors and provide constant emergency stop access. This switch is made from zazak3 and is suitable for internal use applications.

Product Code Description Part No. Quote options Added to Basket
SL4 (Diecast) / With E|Stop / 2NC + 2NO contacts SL4-E-22
Qty: - +

SL4 (Diecast) / With E|Stop / 3NC + 1NO contacts SL4-E-31
Qty: - +

SL4 (Diecast) / Without E|Stop / 2NC + 2NO SL4-22
Qty: - +

SL4 (Diecast) / Without E|Stop / 3NC + 1NO contacts SL4-31
Qty: - +


DIMENSION DRAWING 1

DIMENSION DRAWING 2

Technical Specifications
Safety Contacts 2 NC + 2 NO or 3 NC + 1 NO
Rated Insulation Voltage (Ui) 500V
Withstand Voltage 2500V
Thermal Current 10A
Operational Rating AC15 A300 240V. 3A / 120V 6A AC 24V. 2.5A DC Inductive
Rating Utilisation Category: AC15
Operating Range <125N @ 300mm Deflection
Tension Force 103N
Rope Spans Up to 75m
Rope Supports 2.3m
Reset Options Blue Reset Switch
Construction Zamak 3
Indication Duel Tension Indication Windows
IP Rating IP66
Weight 1.55kg
Mounting 4 x M5 Security Screws
Environmental Specifications
Operating Temperature -25°C to +80°C
Safety Related Data
PL in accordance with EN ISO 13849-1 PL-e
SIL CL in accordance with EN IEC 62061 SIL 3
PFHd in accordance with EN IEC 62061 1.12 x 10-9
PFH 1.1 x 15-9
B10d 2,000,000
MTTFd High > 385 Years (Based on usage rate of 360 Days/
TM >100 Years
DC 99%
SFF 99.5%
File Title File Name Download File
314 400 Safeline SL4 Grabwire Installation Manual v18 314-400-Safeline-SL4-Grabwire-Installation-Manual-v18.pdf PDF (6.3 MB)
