Proton Accessories

Approvals

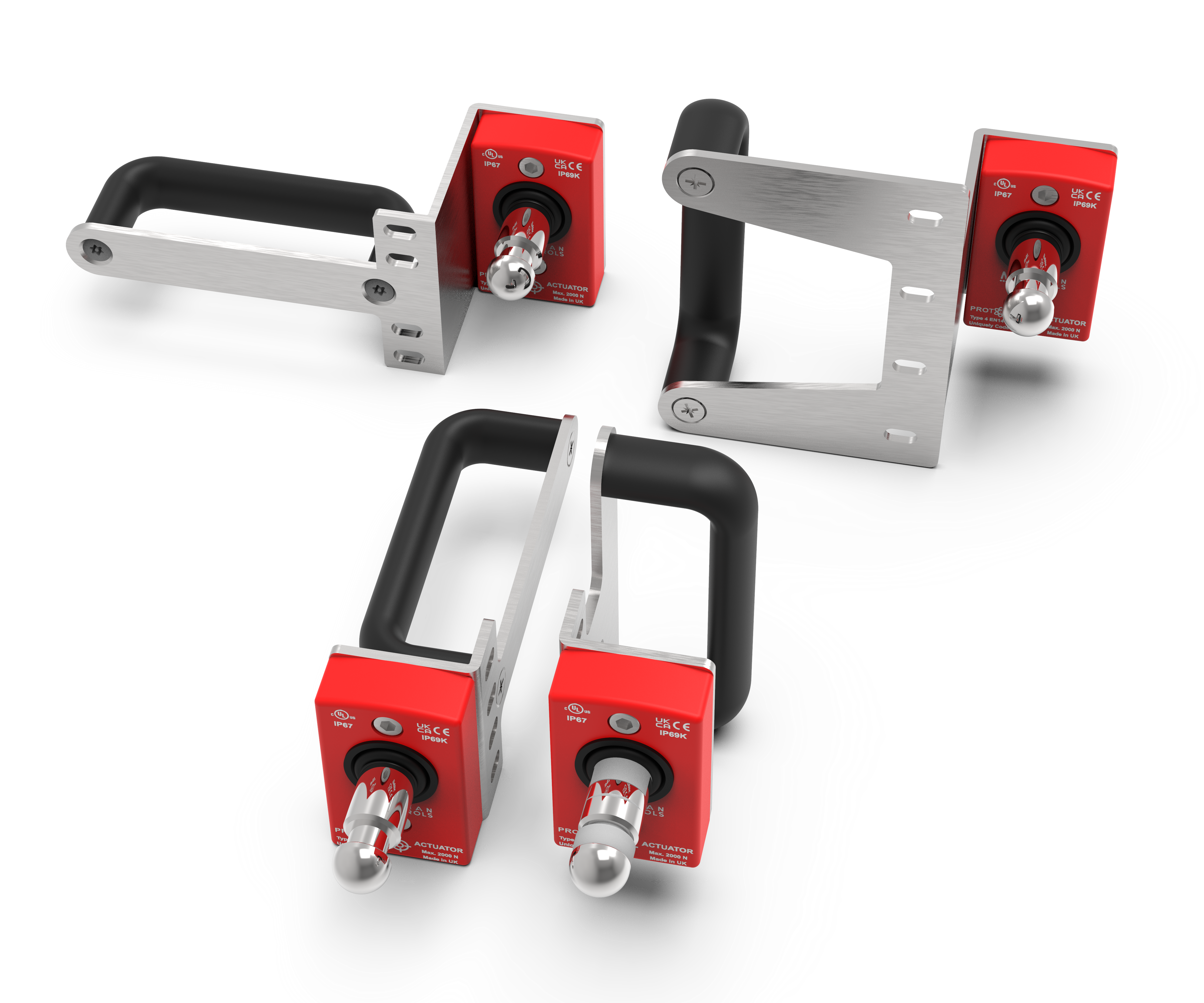

Proton Actuators can be mounted on actuator handles depending on the machine.

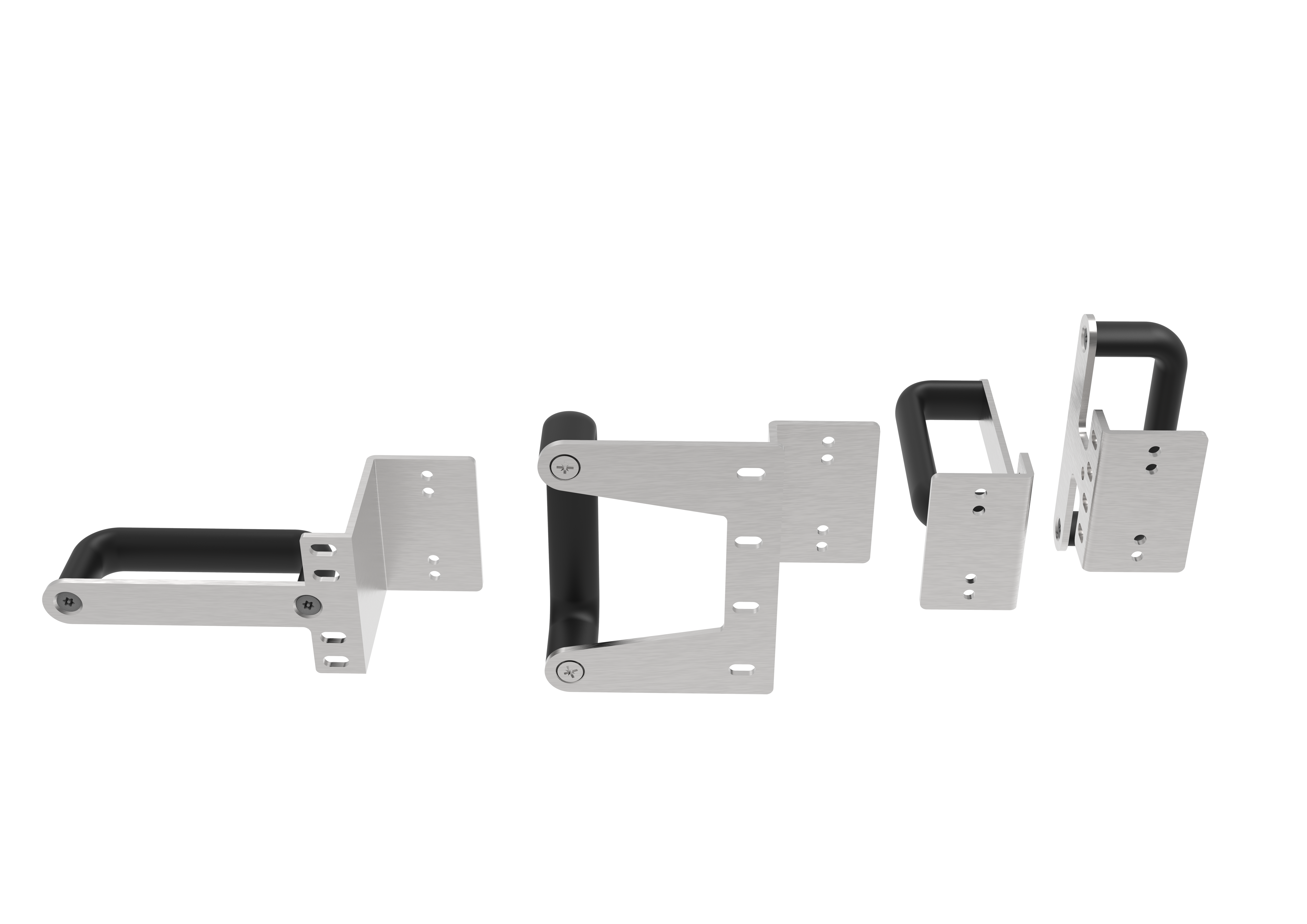

These 4 brackets are designed to fit any mounting position of the Proton for ease of opening and shutting the door.

Product Code	Description	Part No.	Quote options
317.015	Horizontal Hinged Door Bracket	PROTON-ACT HINGED DOOR BRACKET HORIZONTAL	Qty: - +
317.016	Vertical Hinged Door Bracket	PROTON-ACT HINGED DOOR BRACKET VERTICAL	Qty: - +
317.017	Horizontal Sliding Door Bracket	PROTON-ACT SLIDING DOOR BRACKET HORIZONTAL	Qty: - +
317.018	Vertical Sliding Door Bracket	PROTON-ACT SLIDING DOOR BRACKET VERTICAL	Qty: - +

DIMENSION DRAWING 1

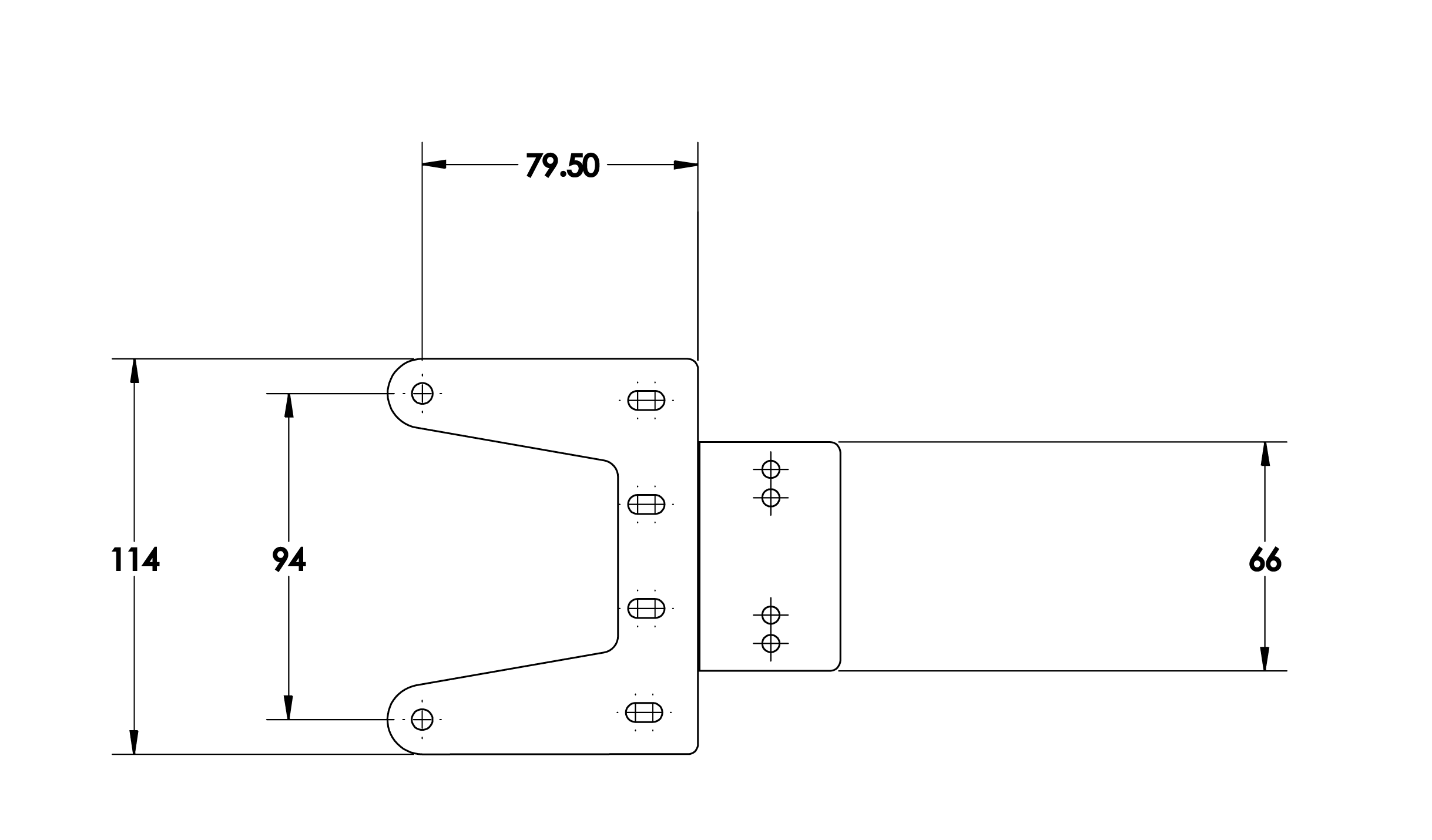

Proton Actuator Bracket Hinged Vert iss1

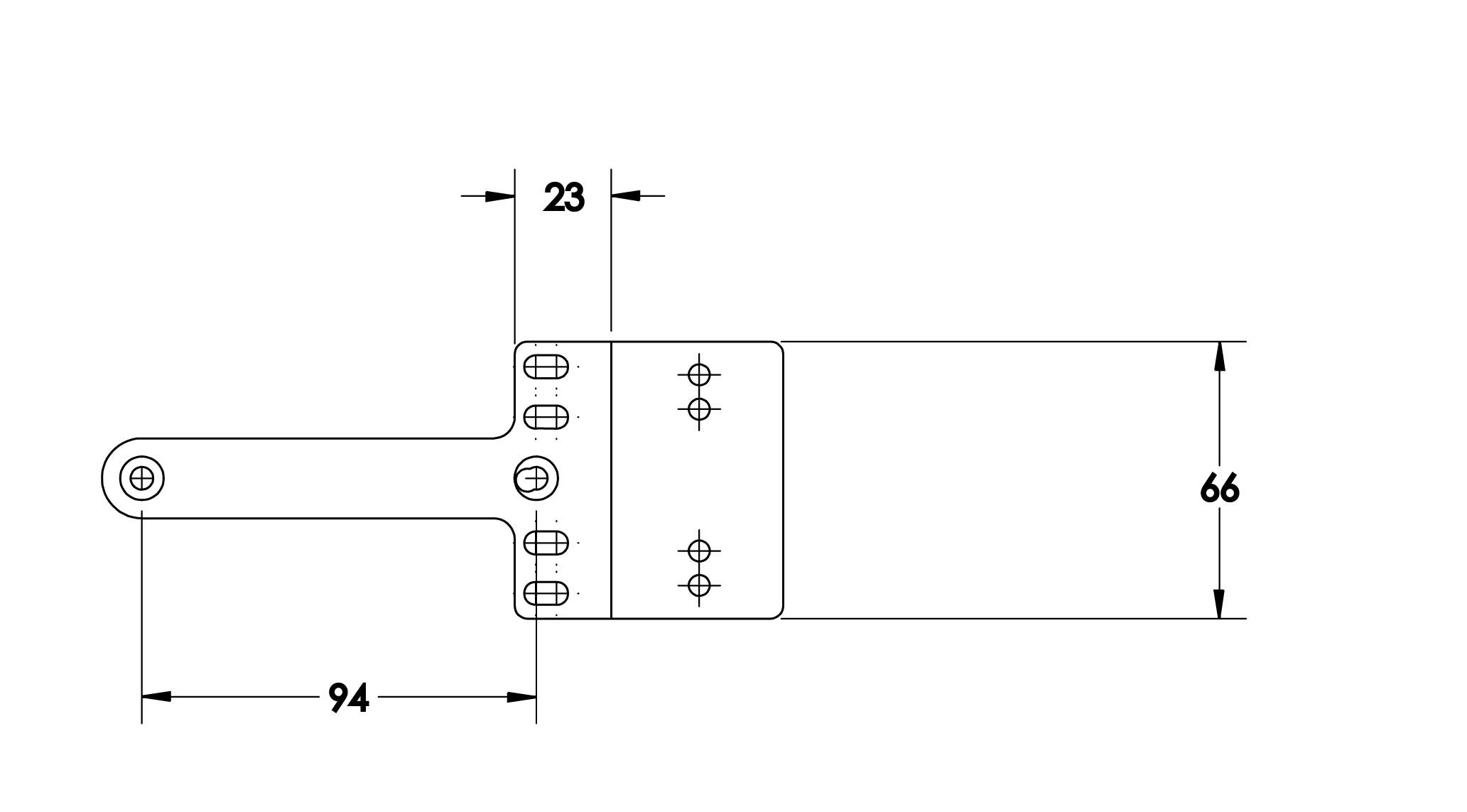

Proton Actuator Bracket hinged horiz iss1

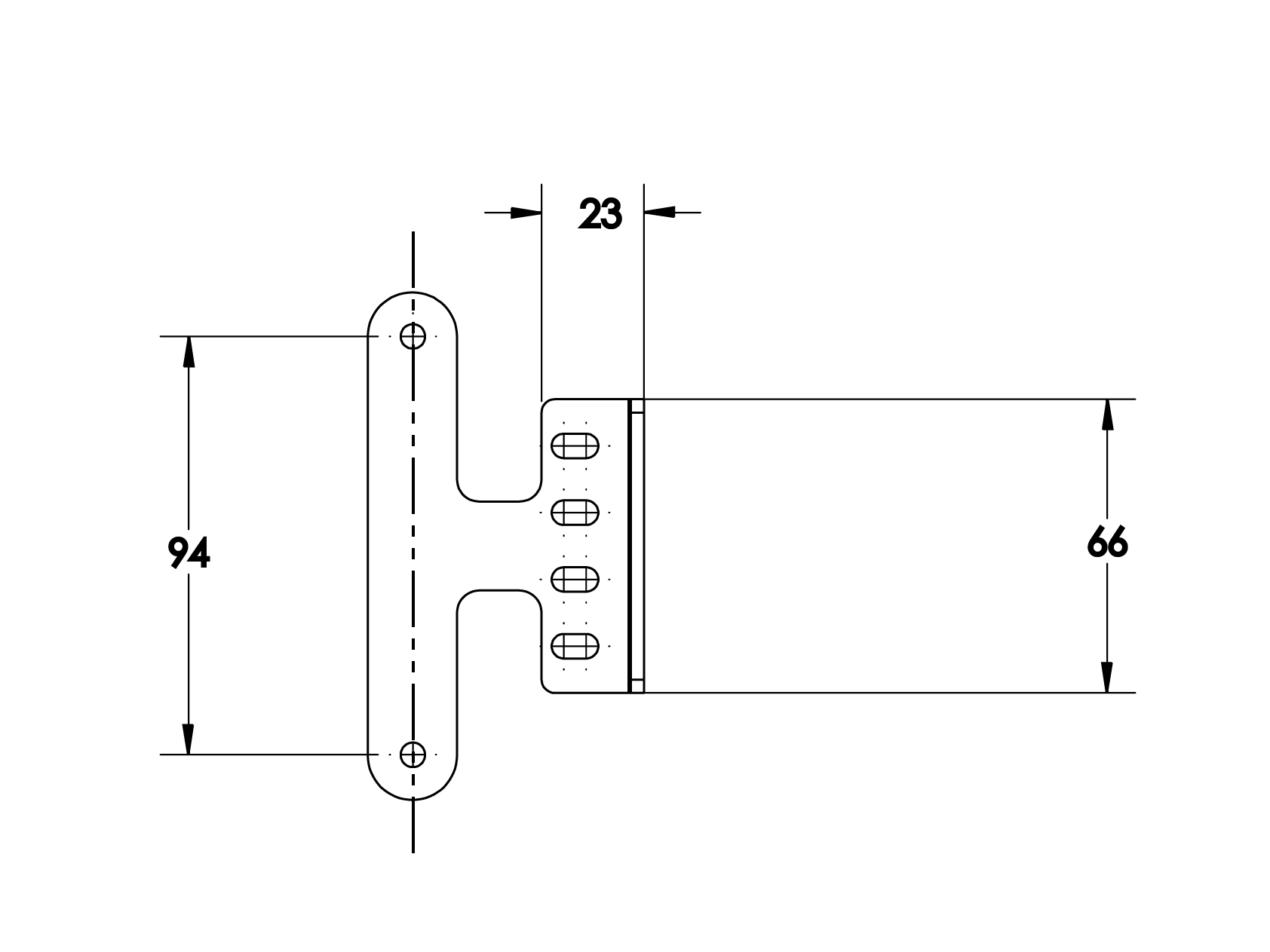

ProtonActuator Bracket sliding vert iss1

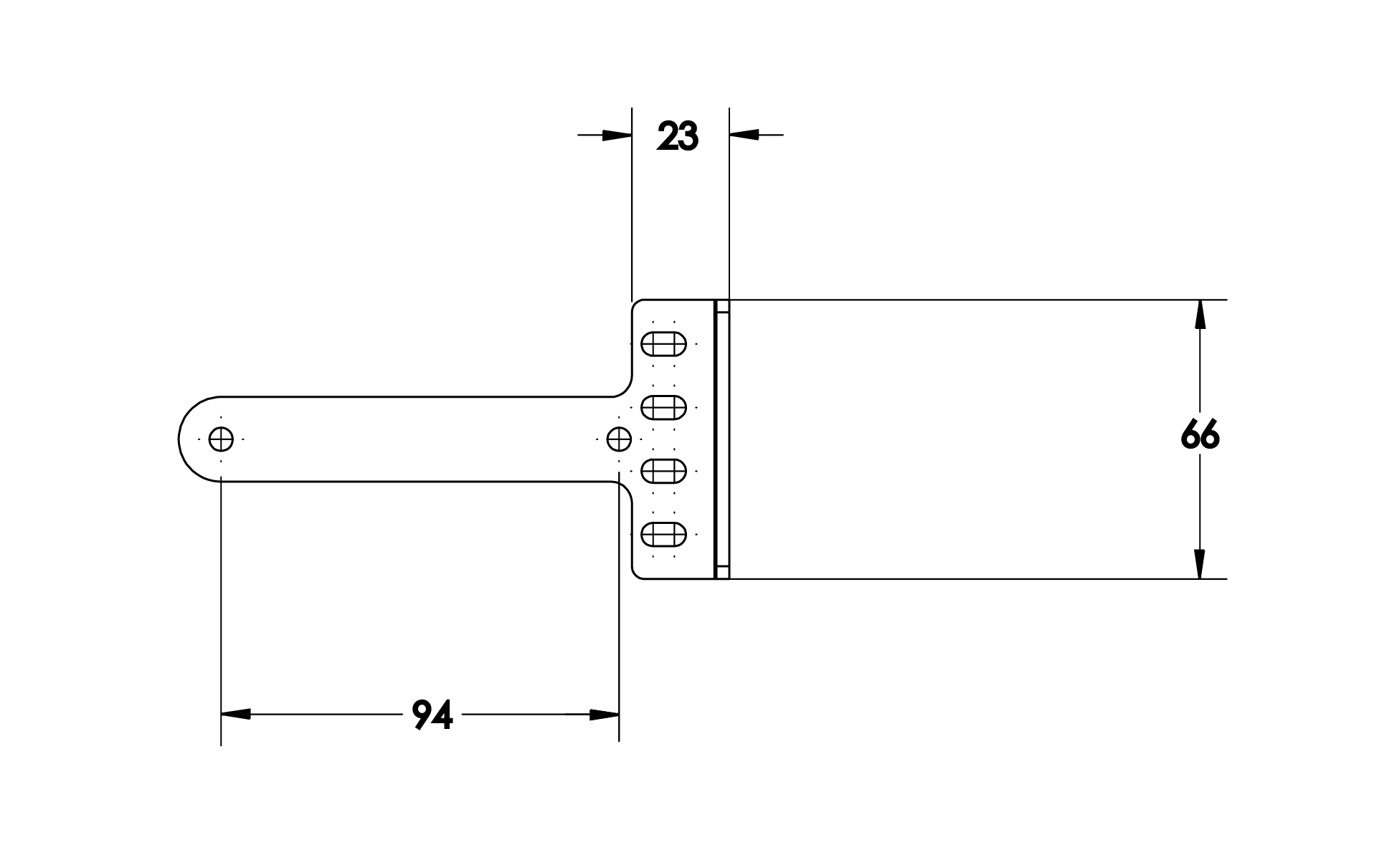

Proton Actuator Bracket sliding horiz iss1
