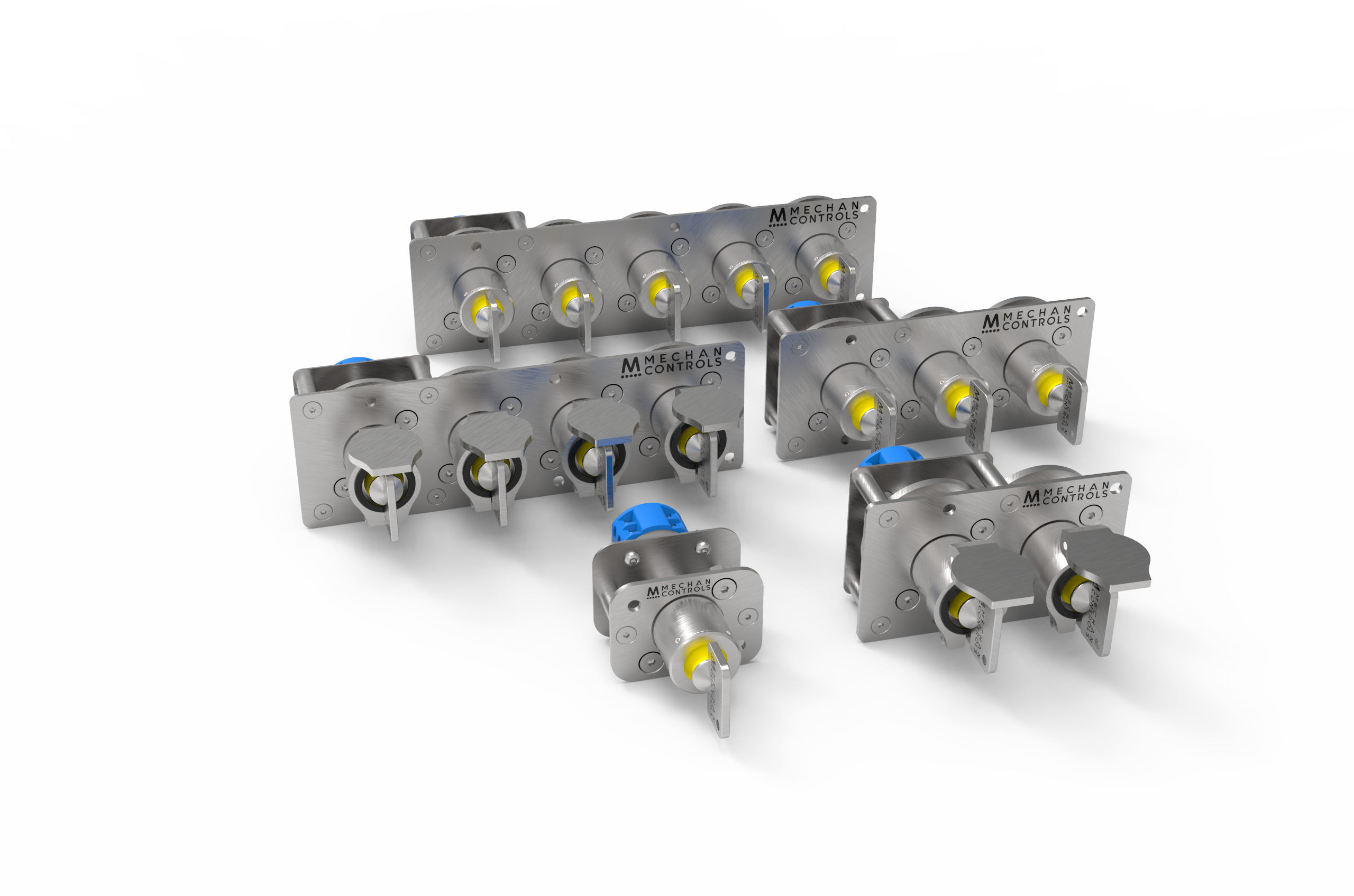

MK-Safe Key Controlled Switch Range

MK-Safe Key Controlled Switch Range Zoom
MK-Safe Key Controlled Switch Range

Approvals

CE Approved TUV UL

SW key controlled switch is designed to work for the control isolation. The 2NO2NC contacts can be monitored by the safety relays. SW1 is the single lock barrel option. SW2-SW5 are the multiple lock barrel option.

Product Code Description Part No. Quote options Added to Basket
SW1 Switch isolator with 1 barrel SW1
Qty: - +

SW2 Switch isolator with 2 barrels SW2
Qty: - +

SW3 Switch isolator with 3 barrels SW3
Qty: - +

SW4 Switch isolator with 4 barrels SW4
Qty: - +

SW5 Switch isolator with 5 barrels SW5
Qty: - +


CONNECTION DRAWING 1

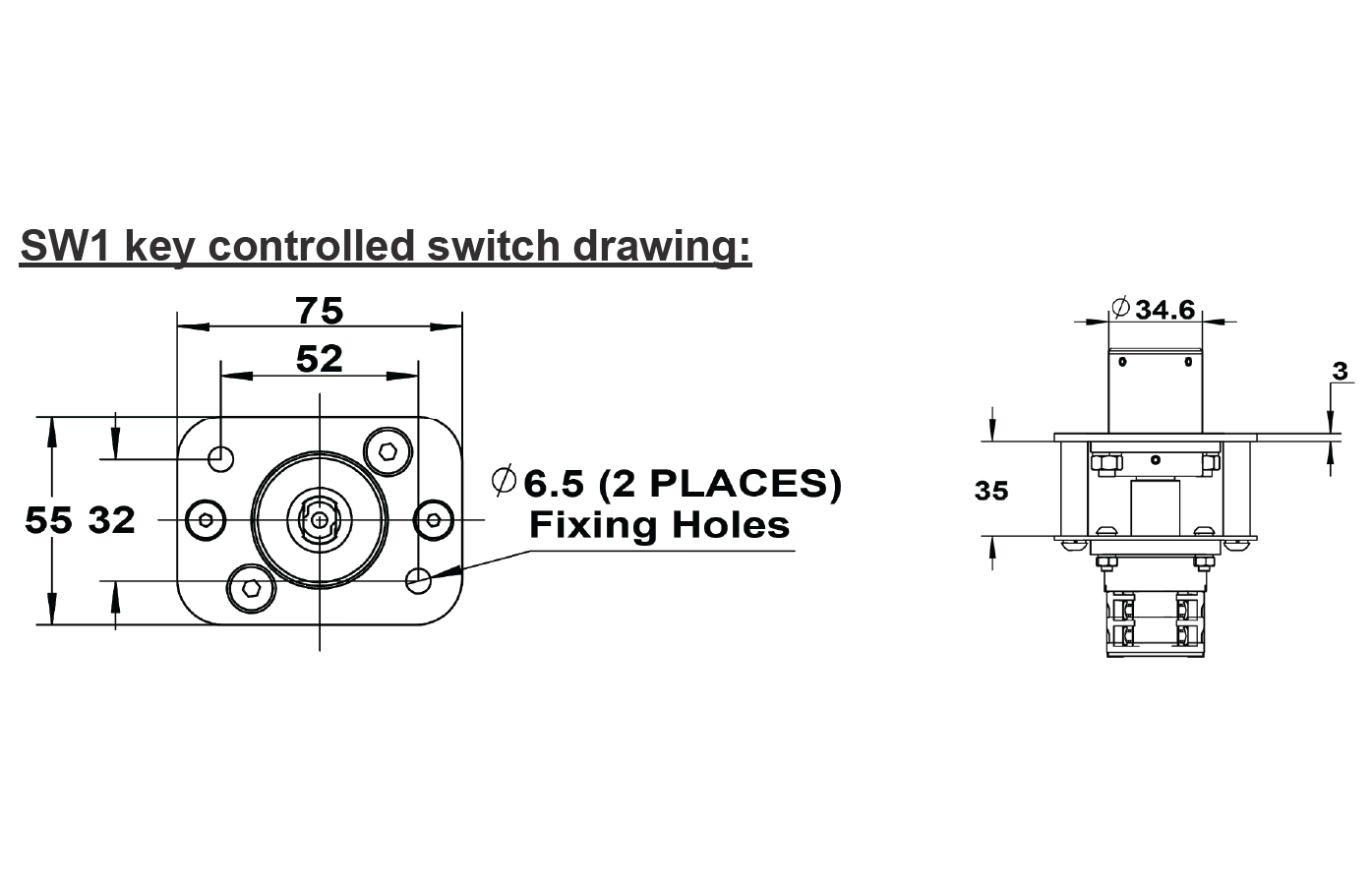

SW1 Dimensionv3

CONNECTION DRAWING 2

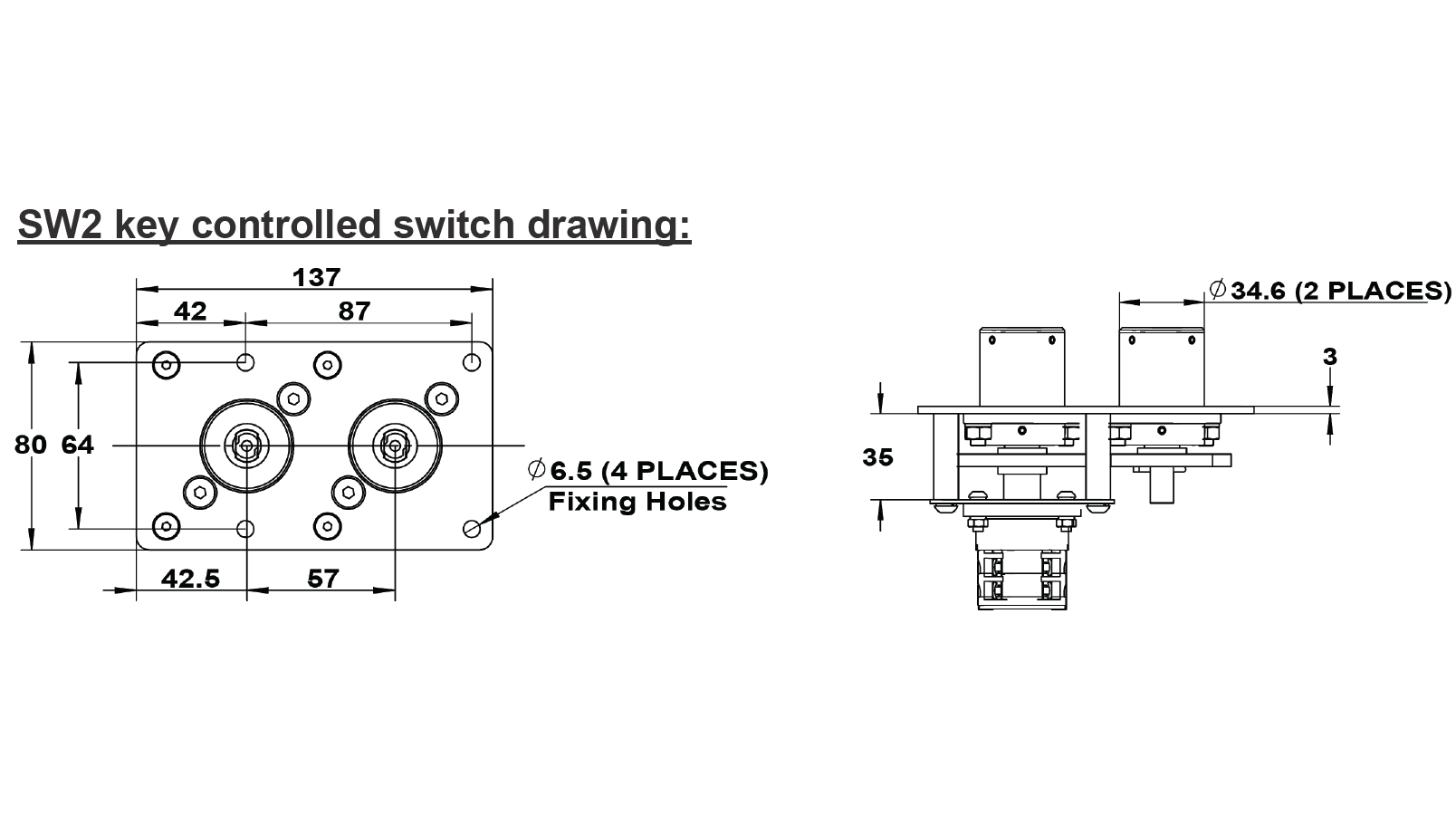

SW2 Dimensionv3

CONNECTION DRAWING 3

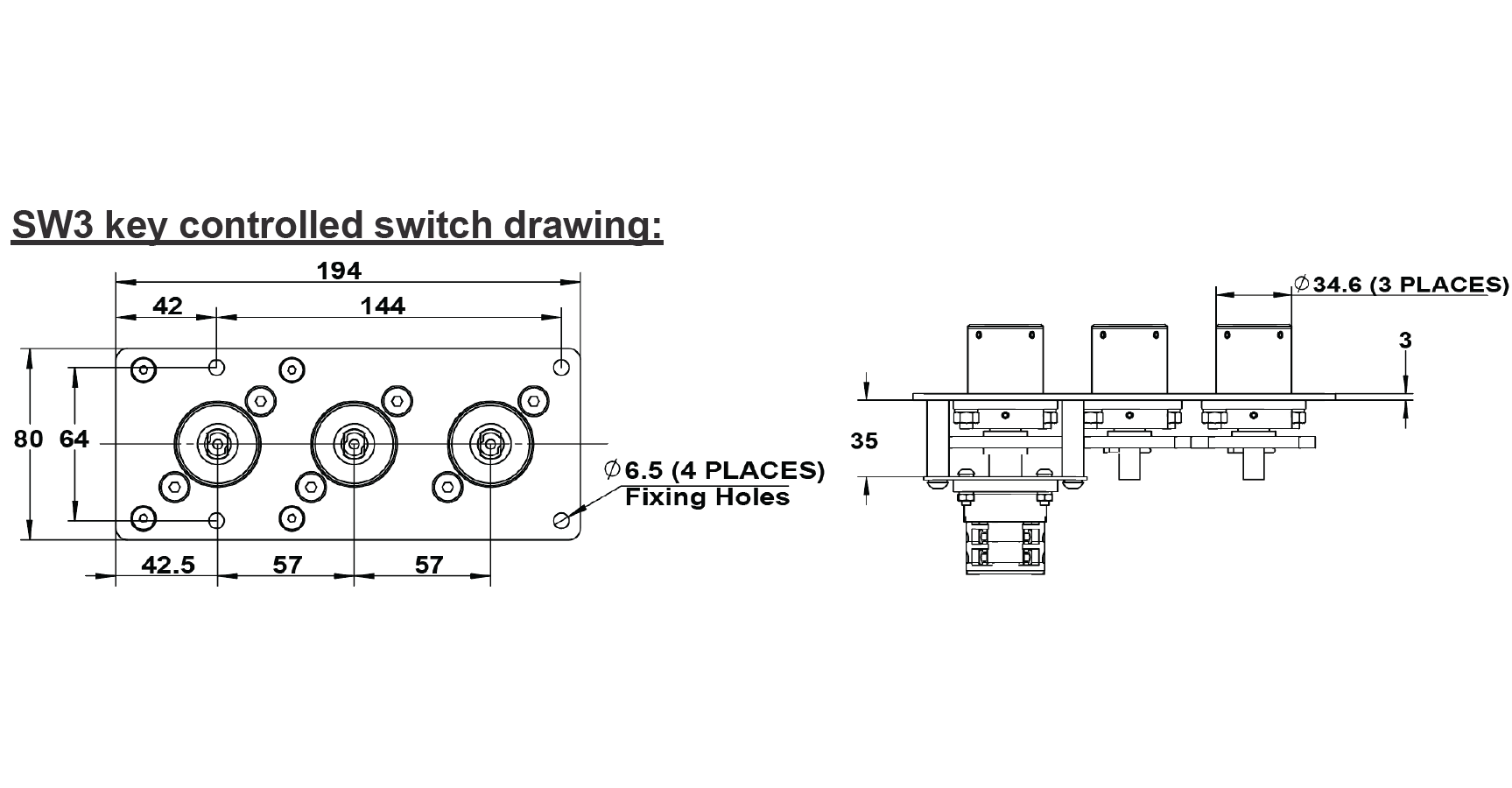

SW3 Dimensionv3

CONNECTION DRAWING 4

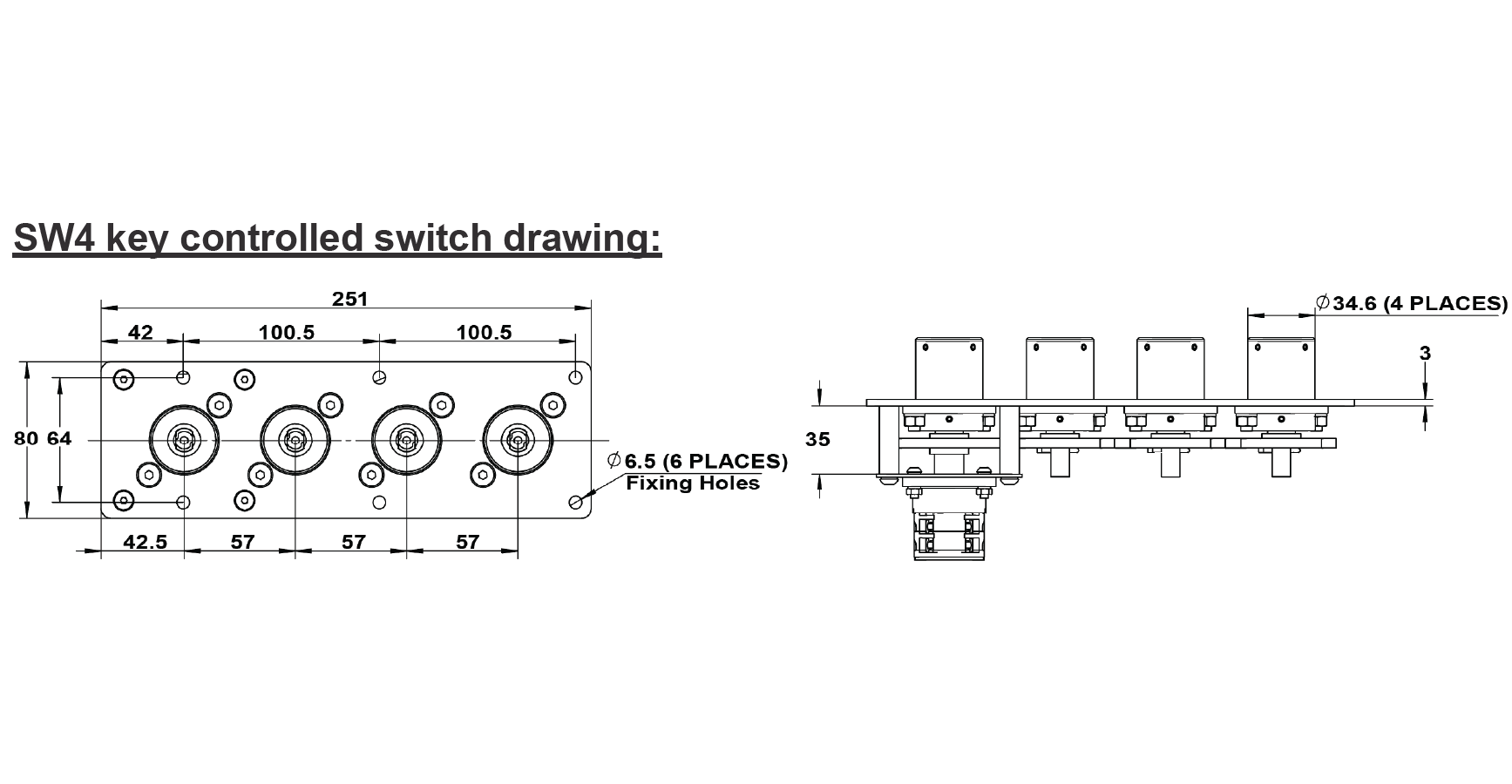

SW4 Dimensionv3

CONNECTION DRAWING 5

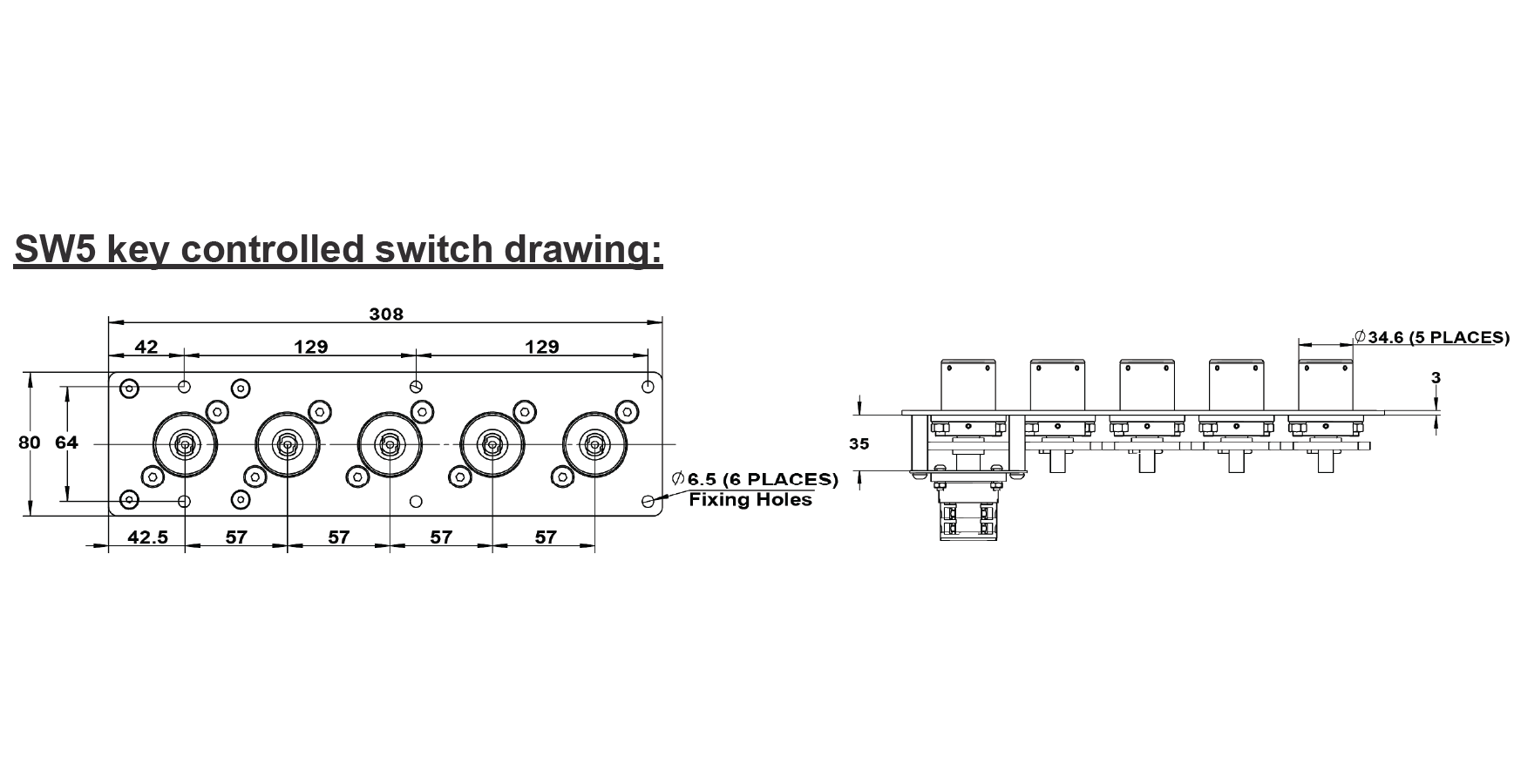

SW5 Dimensionv3

Technical Specifications
Safety Contacts 2 NC + 2 NO
Construction 316 Stainless Steel
Mounting M6 Hex Screw
Supply Voltage Options 24vDC, 110vAC, 240vAC
Mechanical Lifetime of Lock Barrels 400,000
Electrical Lifetime of Switch 200,000 - DC13, 50ms @ 0.5A 24VDC
Environmental Specifications
Operating Temperature 0ºC - 40ºC
Safety Related Data
PL in accordance with EN ISO 13849-1 PL-e
SIL CL in accordance with EN IEC 62061 SIL 3
B10d 2,000,000
DC 99%
File Title File Name Download File
MK Safe SW Range Installation Manual v5 condensed MK-Safe-SW-Range-Installation-Manual-v5-condensed.pdf PDF (1.9 MB)
