Approvals

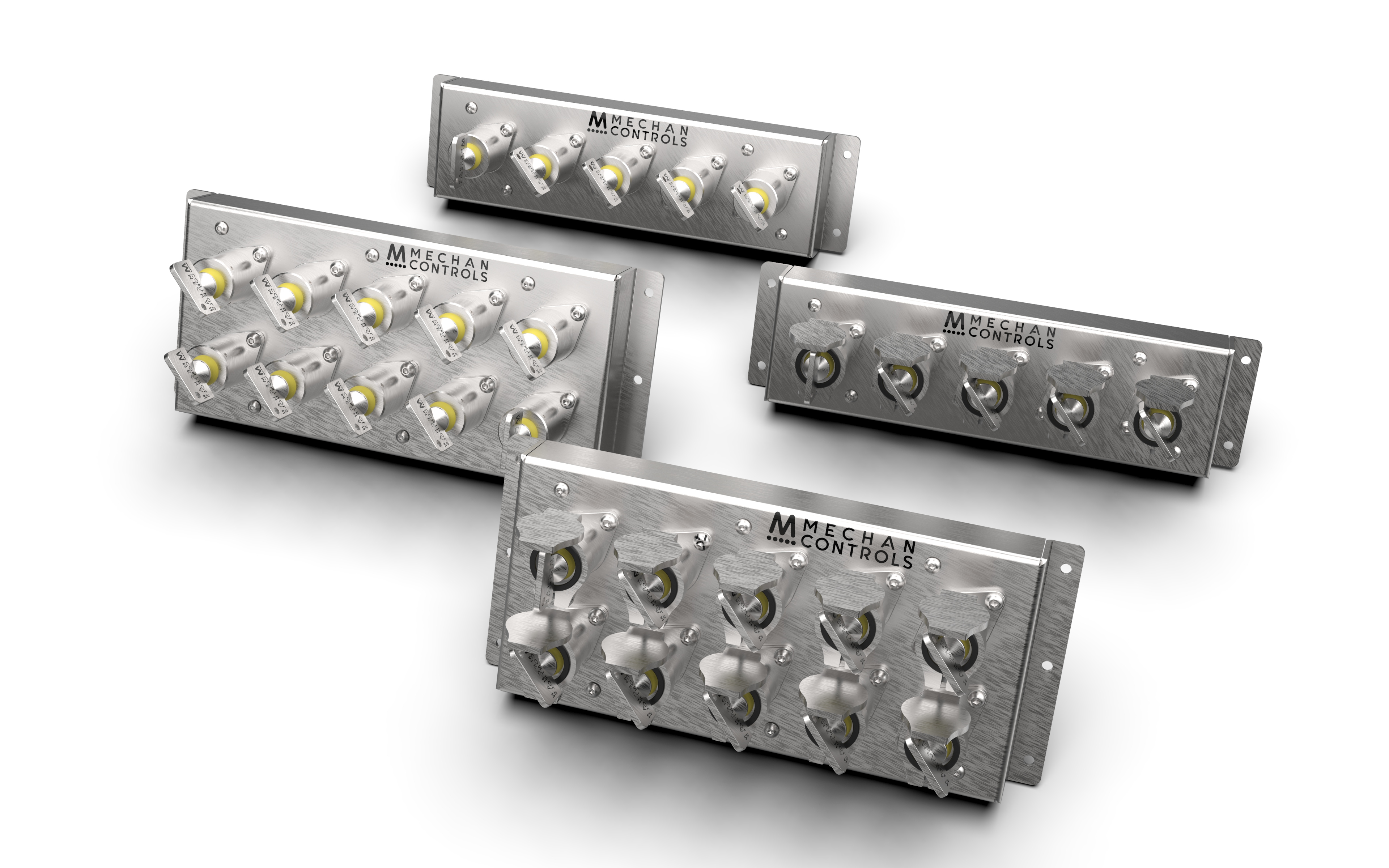

KEB key exchange box is a mechanical interlock device which is designed to achieve an intermediate key transfer function. One or more keys are inserted in the KEB unit to release one or more keys with different coding. Please contact Mechan Controls regarding the key exchange logic and the layout of the KEB unit.
| Technical Specifications | |
|---|---|
| Construction | 316 Stainless Steel |

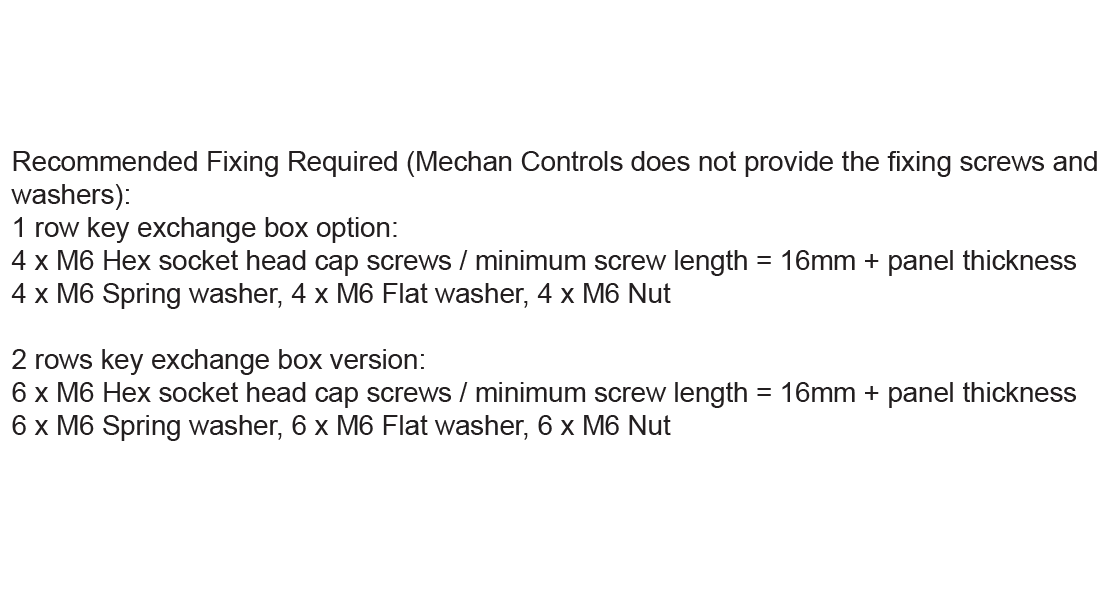

| Mounting | See Technical Drawings |

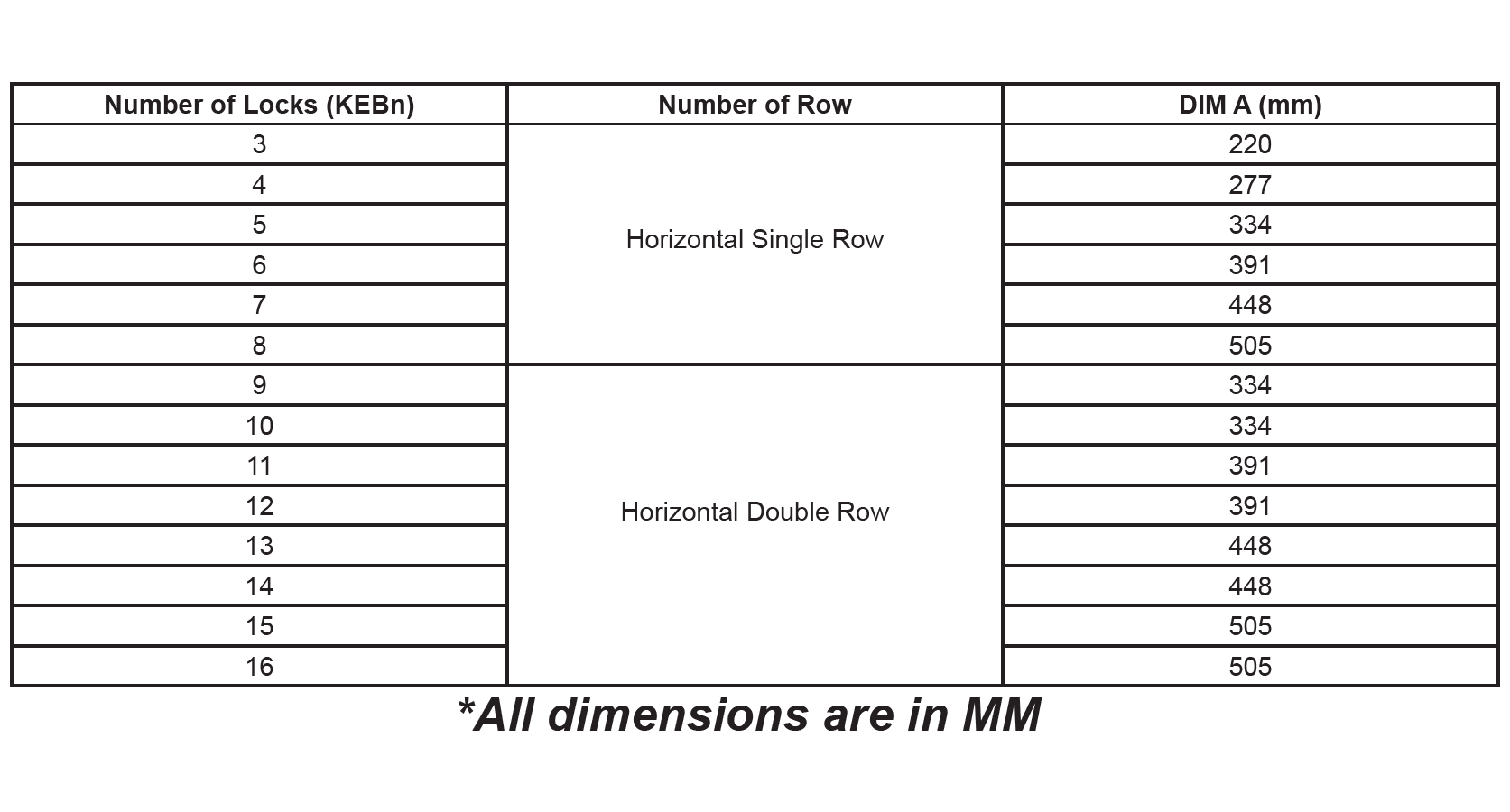

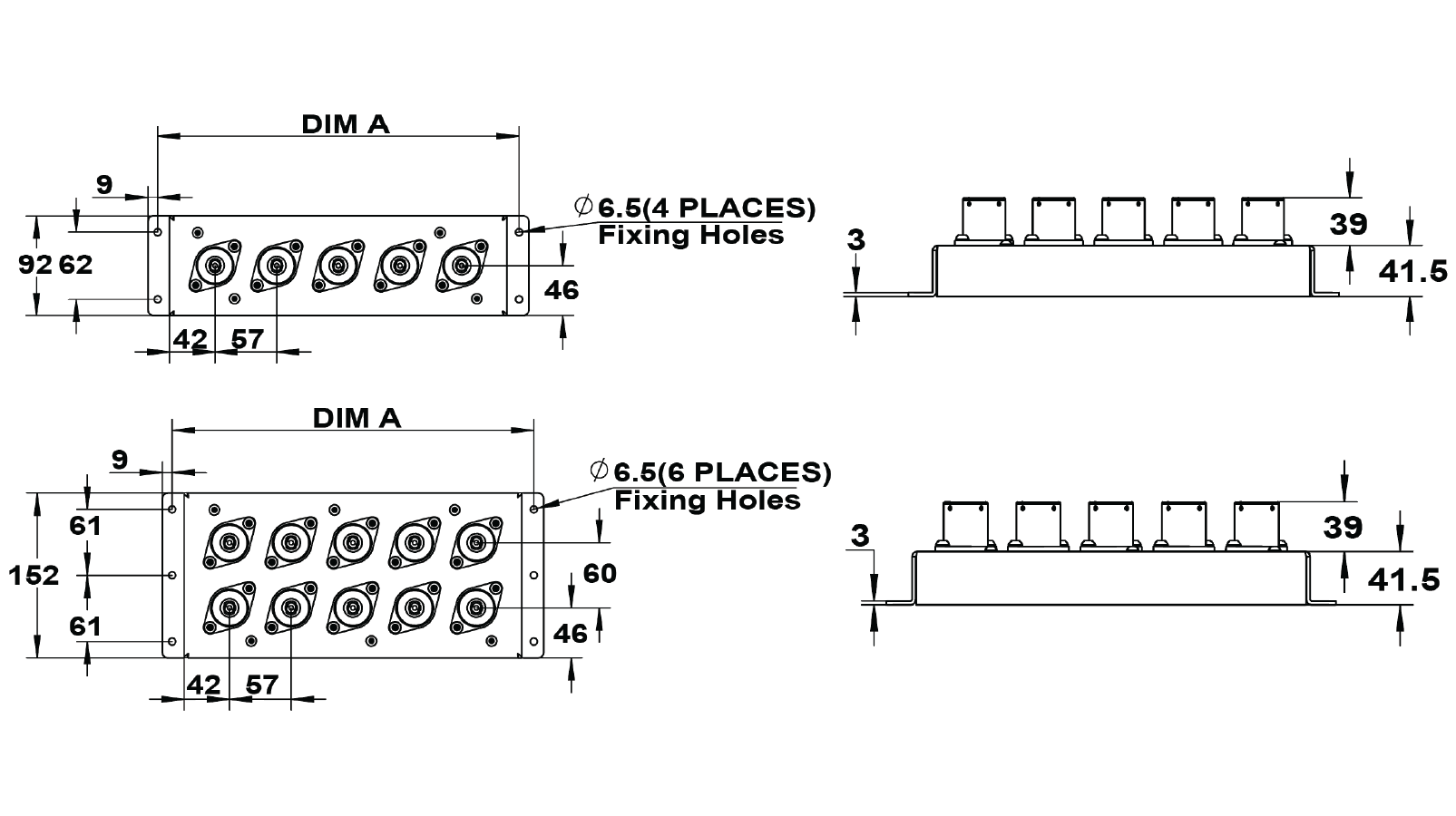

| Dimensions of Switch (mm) | See Technical Drawings |
| Mechanical Lifetime of Lock Barrels | 400,000 Operations |
| Environmental Specifications | |
| Operating Temperature | 0ºC - 80ºC |
| Safety Related Data | |
| PL in accordance with EN ISO 13849-1 | PL-e acc. to EN ISO 13849-1 |
| SIL CL in accordance with EN IEC 62061 | SIL 3 acc. to EN 62061 |
| B10d | 2,000,000 |
| File Title | File Name | Download File |
|---|---|---|
| MK Safe KEB Range Installation Manual v5 condensed | MK-Safe-KEB-Range-Installation-Manual-v5-condensed.pdf | PDF (557 KB) |
