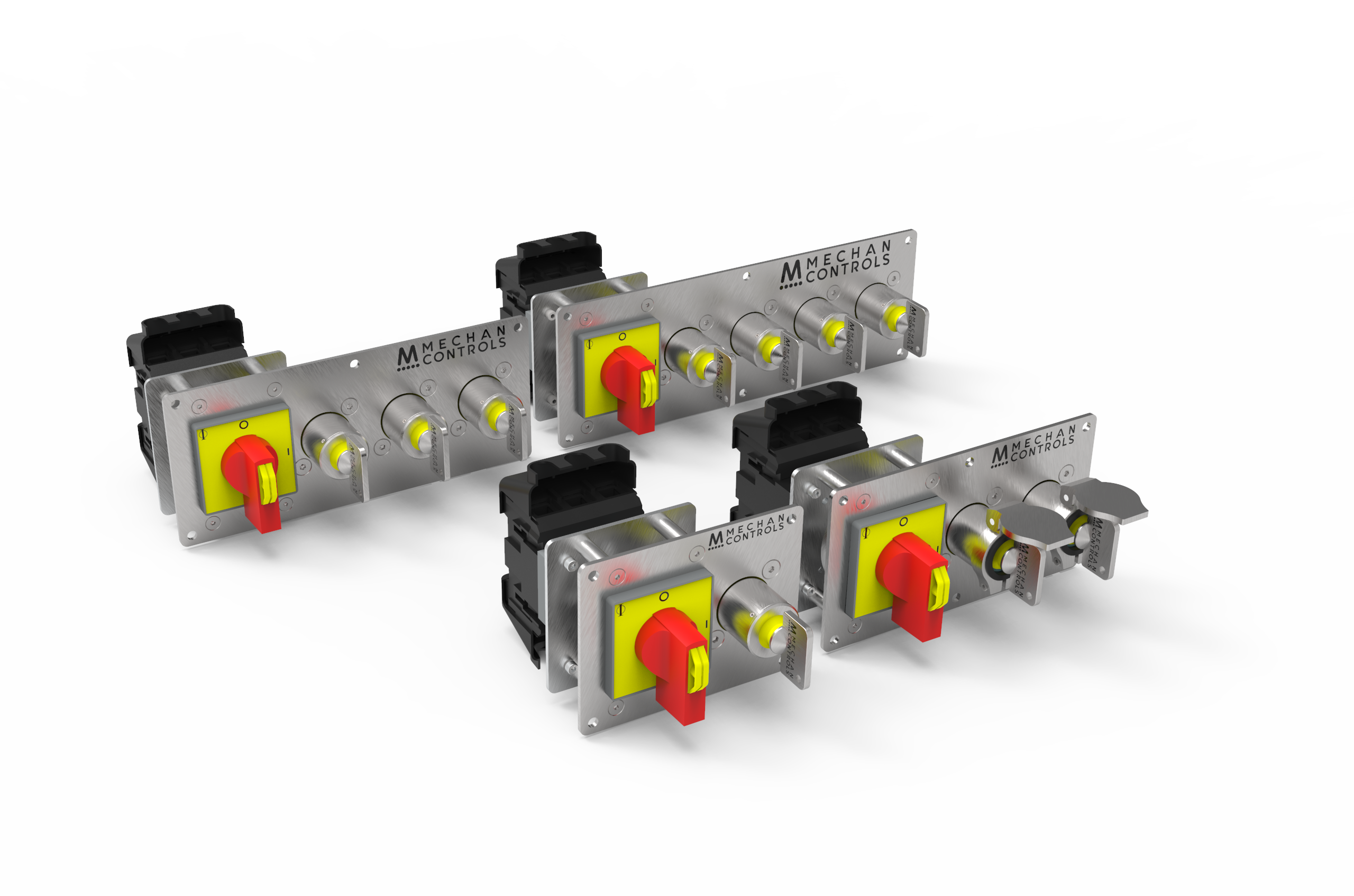

ISOL key controlled isolator is designed to work for power isolation. Mechan offers different isolators from 20A AC up to 100A AC. The contact arrangement is 3 pole, 4 pole with or without the 1NO & 1NC auxiliary contacts to suit various applications.

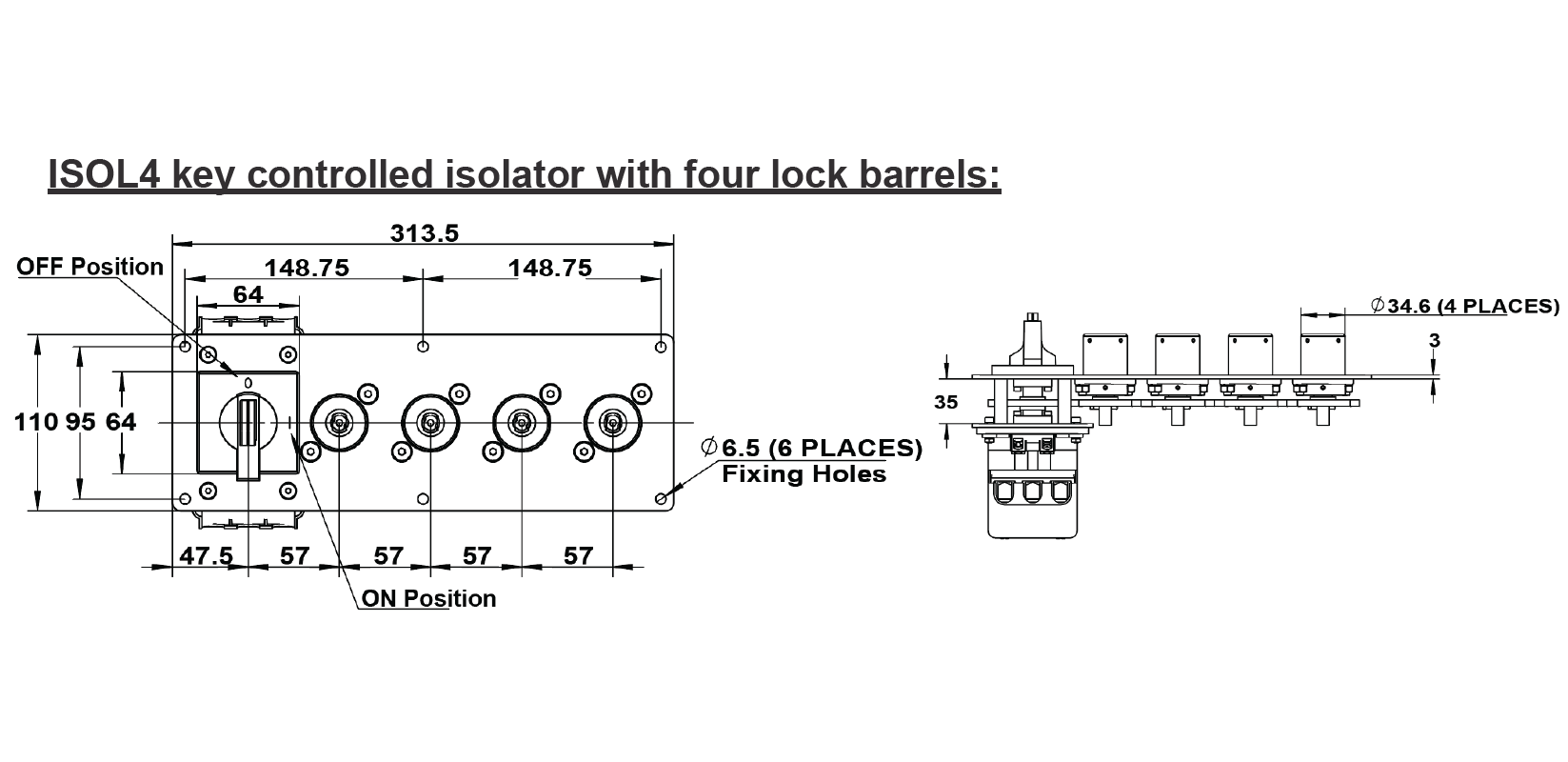

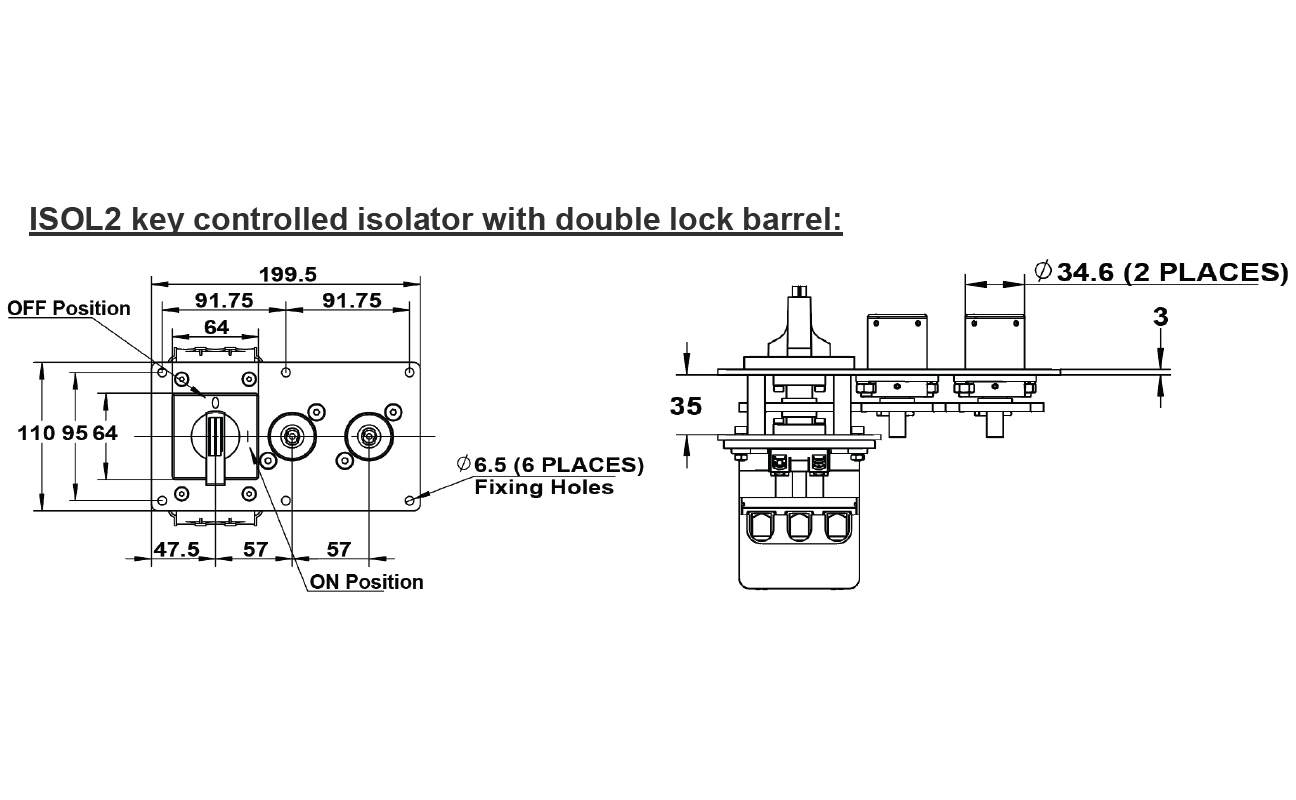

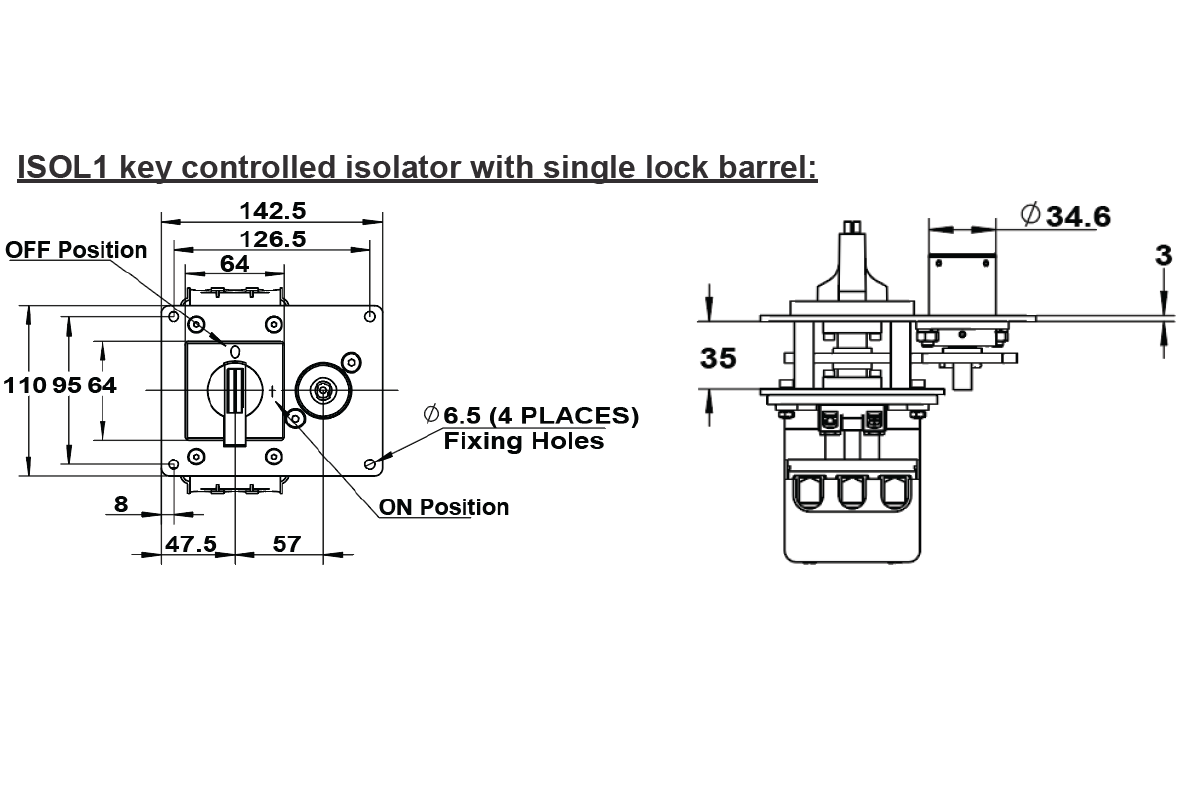

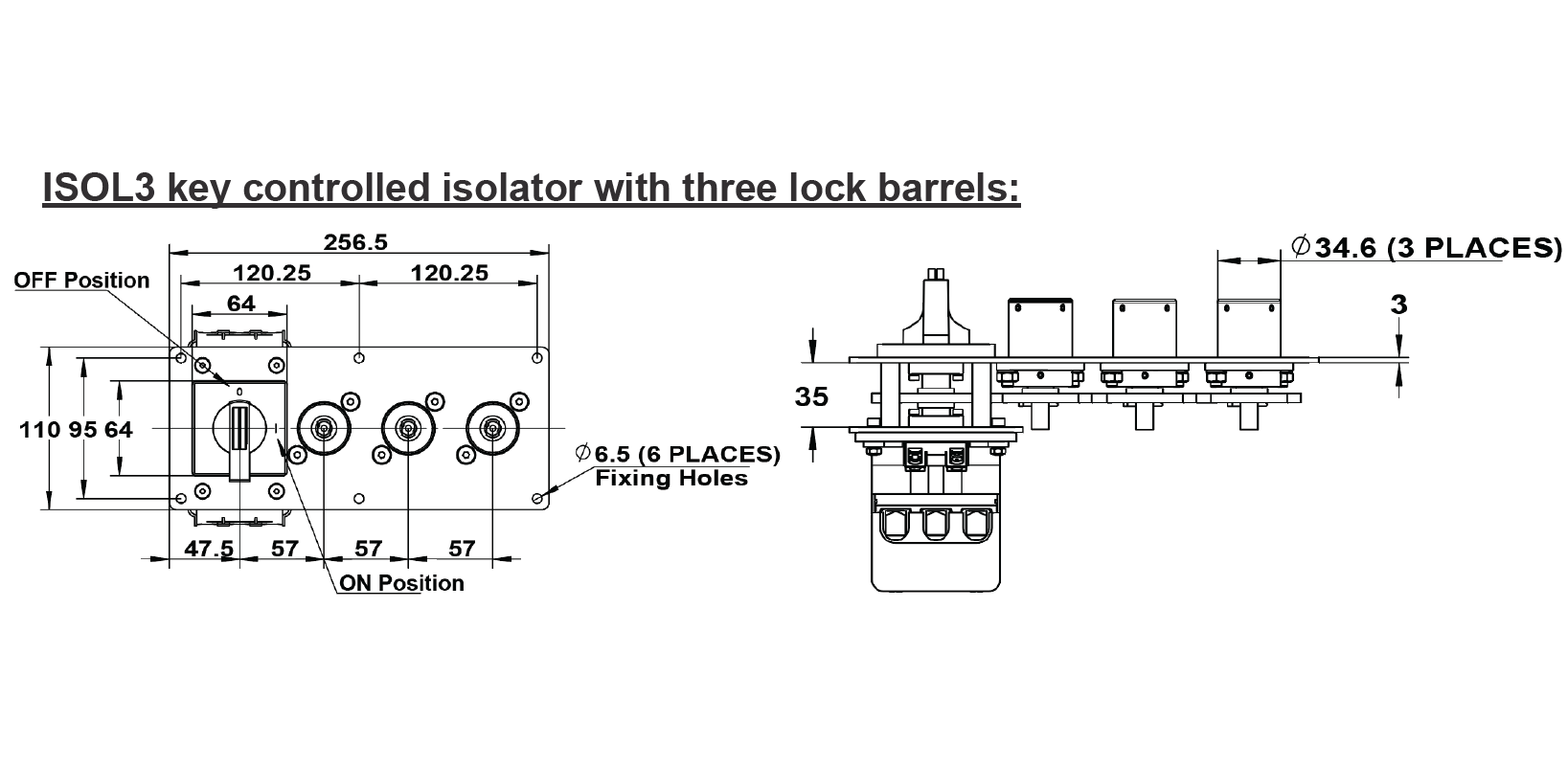

ISOL1 is the single lock barrel option. ISOL2-ISOL4 are the multiple lock barrel options.
| Technical Specifications | |
|---|---|
| Safety Contacts | 3 Pole, 3 Pole + Auxiliary, 4 Pole, 4 Pole + Auxiliary |
| Construction | 316 Stainless Steel |
| Mounting | M6 Hex Screws |
| Supply Voltage Options | 24vDC, 110vAC, 240vAC |
| Power Consumption | 4kW - 37kW |
| Environmental Specifications | |
| Operating Temperature | 0ºC - 40ºC |
| Safety Related Data | |
| PL in accordance with EN ISO 13849-1 | PL-d |
| SIL CL in accordance with EN IEC 62061 | SIL 2 |
| B10d | 20A&32A 200,000-40A&63A 150,000-80A&100A 100,000 |
