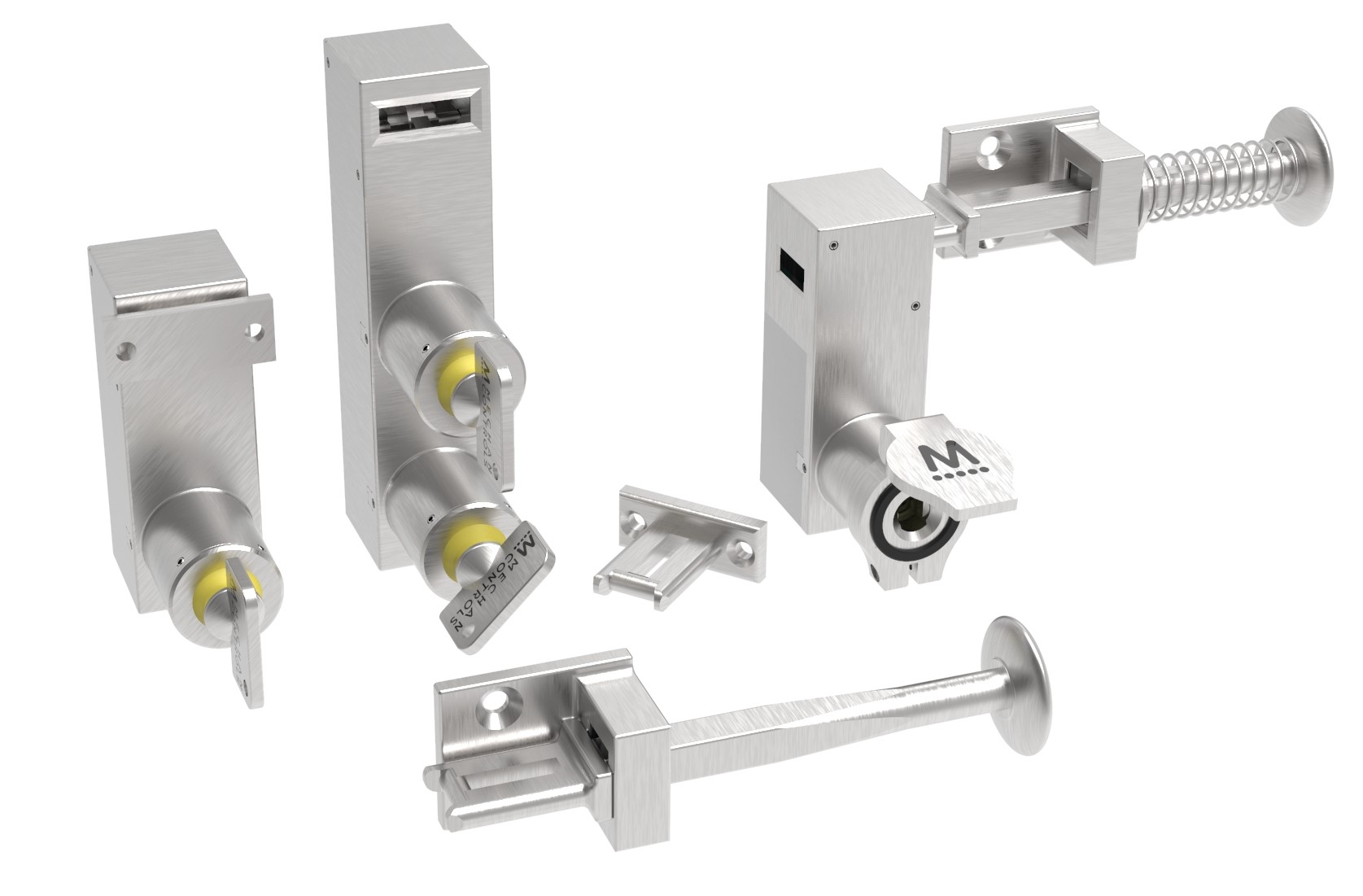

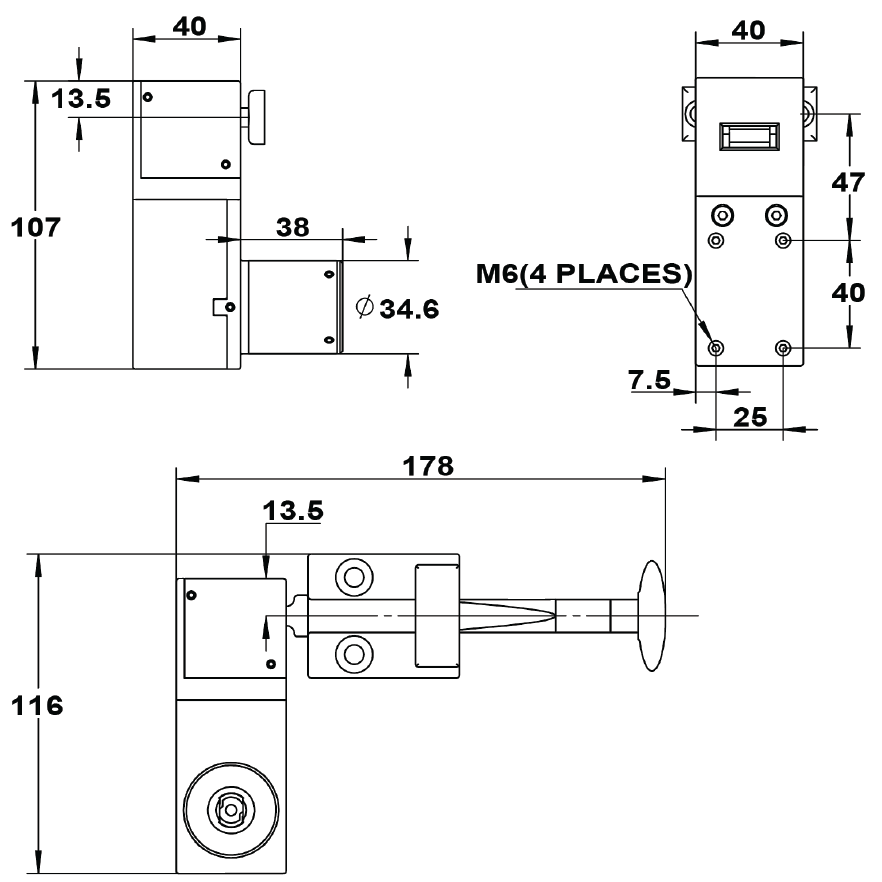

DL1 access lock is mounted on the access door of the safe guarding area. It is designed to control the access to the protected area. DL1 is the single barrel access lock to
suit tongue type actuator.

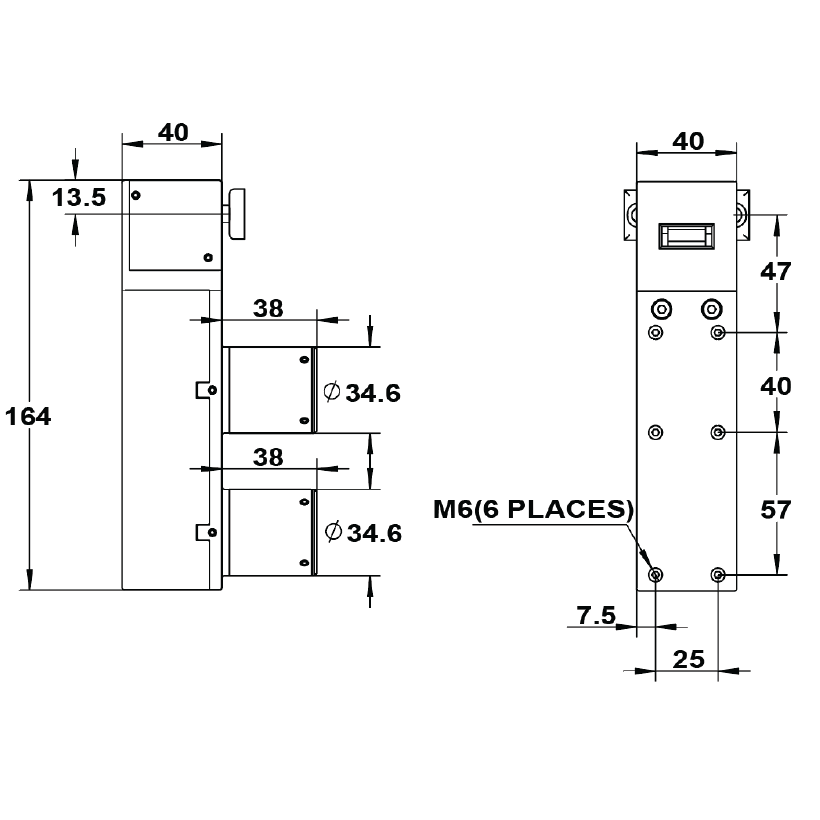

DL2 is mounted on the access door of the safeguarding area. It is designed to control the access to the protected area. DL2 is the double barrel access lock to suit tongue
type actuator. DL2 has 2 options, SA type and AA type. DL2-SA type is composed of one safety lock barrel and one access lock barrel. DL2-AA is composed of 2 access lock barrels.
| Technical Specifications | |
|---|---|
| Construction | 316 Stainless Steel |
| Mounting | M6 Security Screws |
| Retention Force | 2500N Max |
| Head Rotation | 4 Positions at 90º increments |
| Mechanical Lifetime of Lock Barrels | 400,000 Operations |
| Environmental Specifications | |
| Operating Temperature | 0ºC - 80ºC |
| Safety Related Data | |
| PL in accordance with EN ISO 13849-1 | PL-e |
| SIL CL in accordance with EN IEC 62061 | SIL 3 |
| B10d | 2,000,000 |
