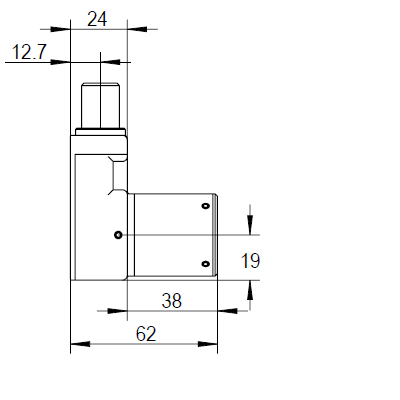

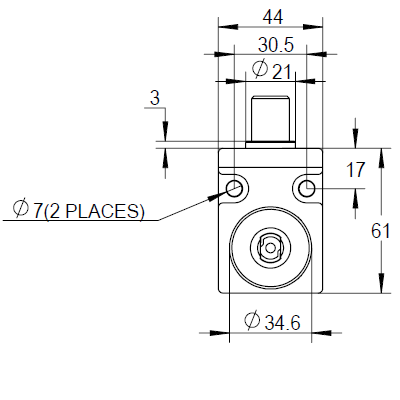

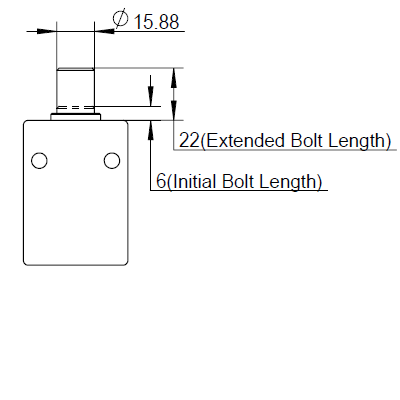

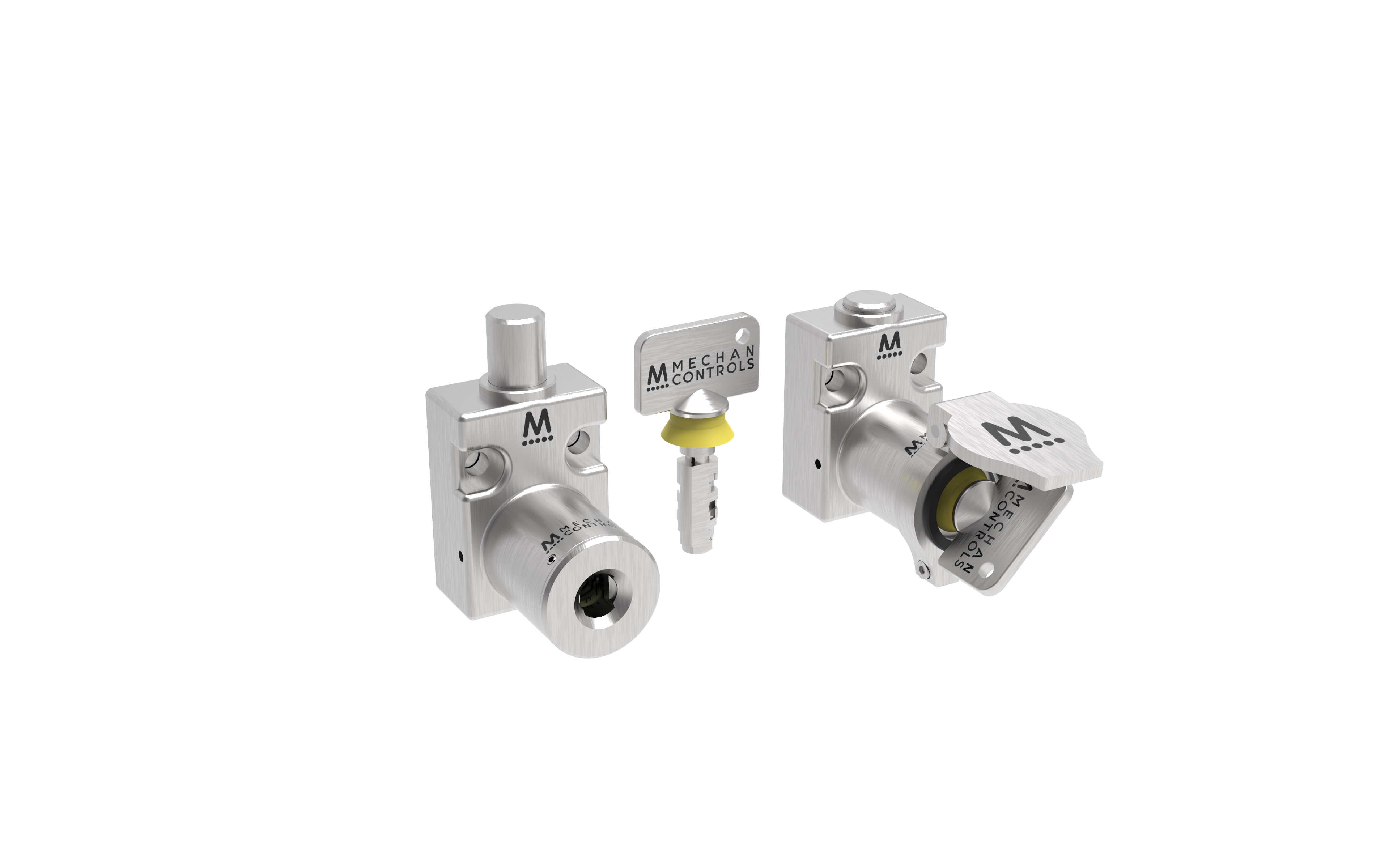

BL1 single barrel bolt lock is the mechanical interlocking device which extends a bolt to lock a device or object. For example, BL bolt lock can be used to lock an isolator switch, valves or circuit breakers. The bolt size is 15.88mm in diameter with 16mm of travel. The operating sequence is the bolt is extended to the longest length 22mm when the key is removed from the BL1 unit.
| Technical Specifications | |
|---|---|
| Construction | 316 Stainless Steel |
| Max Bolt Strength | 5000N Front & Side Load |
| Mechanical Lifetime of Lock Barrels | 400,000 Operations |
| Environmental Specifications | |
| Operating Temperature | 0ºC - 80ºC |
| Safety Related Data | |
| PL in accordance with EN ISO 13849-1 | PL-e acc. to EN ISO 13849-1 |
| SIL CL in accordance with EN IEC 62061 | SIL 3 acc. to EN 62061 |
| B10d | 2,000,000 Cycles |
