MS8-D

MS8-D MS8-D MS8-D

Approvals

CE Approved TUV UL

Housing:
    316 Stainless Steel, Resin Encapsulated
Contacts:
    2NO + 1NC (with door open)
Contact Rating:
    400mA 24VDC
Connection Type:
    Pre-Wired Cable, 6 cores
Operating Distance:
    30mm ON / 50mm OFF
Ingress Protection Rating:
    IP67 and IP69K

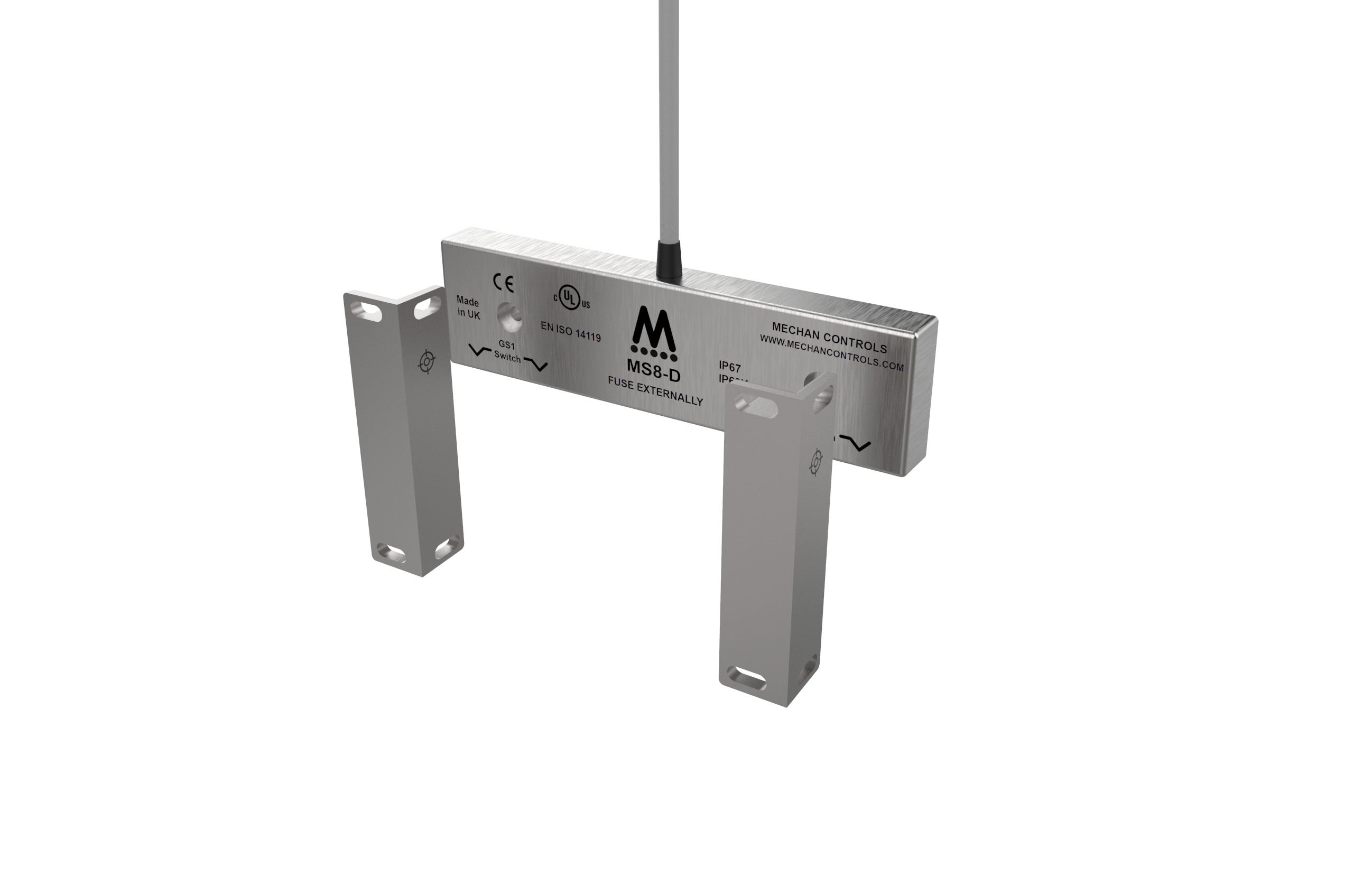

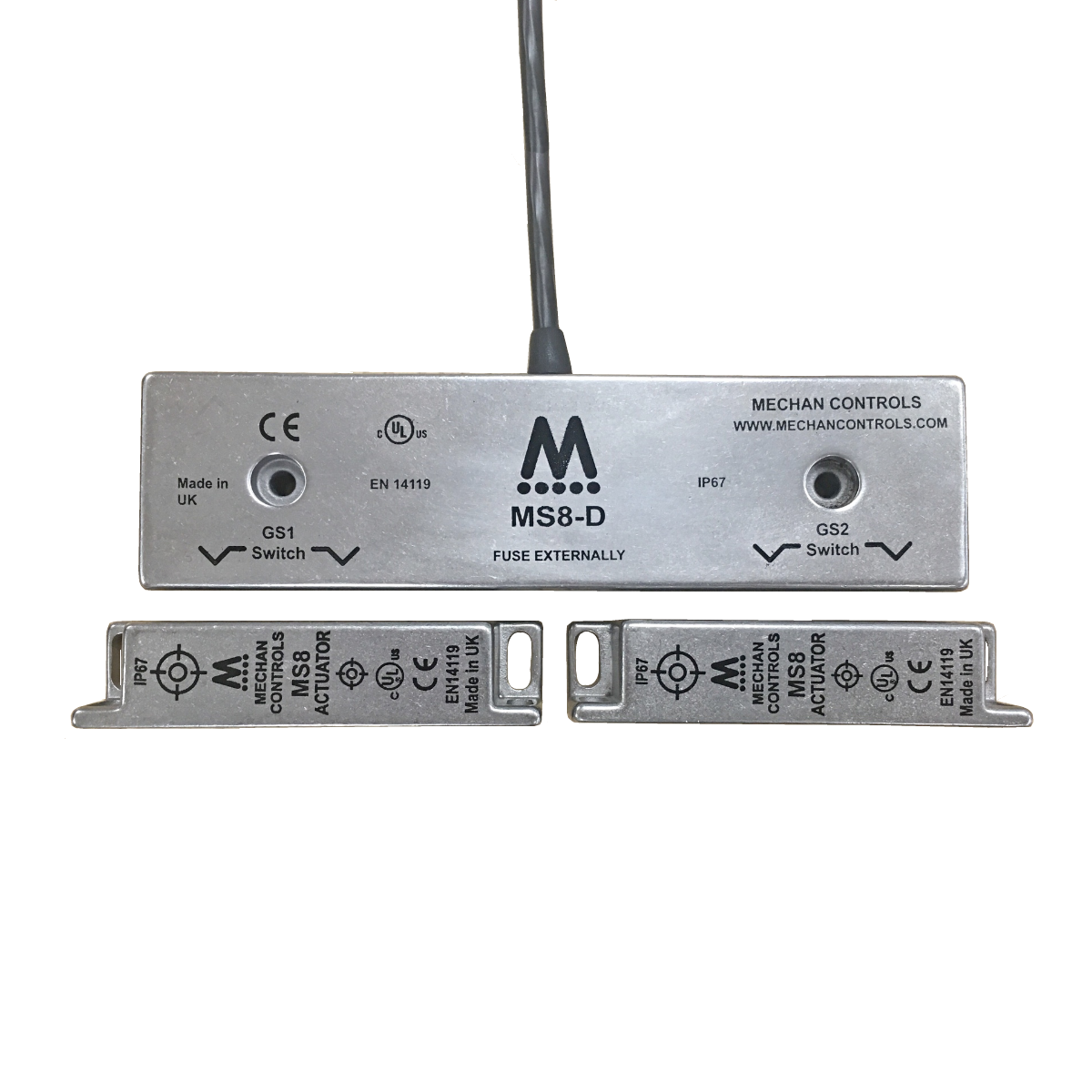

The MAGNASAFE MS8-D non-contact safety switches are a UNIQUE product, slim-line, space saving housing made from 316 Grade Stainless Steel, Fully Encapsulated. The MS8 safety switches have been designed to use with double doors. This is the first switch of its kind, replaces 2 safety switches with 1, half the wiring, cheaper than purchasing two switches and tolerant to misalignment. The non-contact operation has a 30 - 50 mm switching distance helping to ensure a long and trouble free operating life where guarding alignment is an issue.

Product Code Description Part No. Quote options Added to Basket
358.015 MS8-SS-21-DC-05M-D SWITCH & 2 ACTUATORS MS8-SS-21-DC-05M-D
Qty: - +

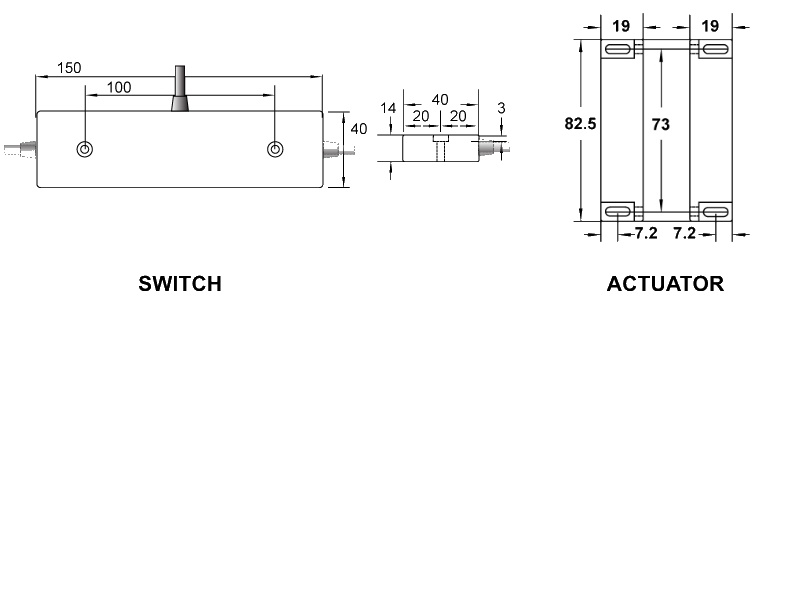

Dimensions in millimetres

2 Normally Open Contacts + 1 Normally Closed

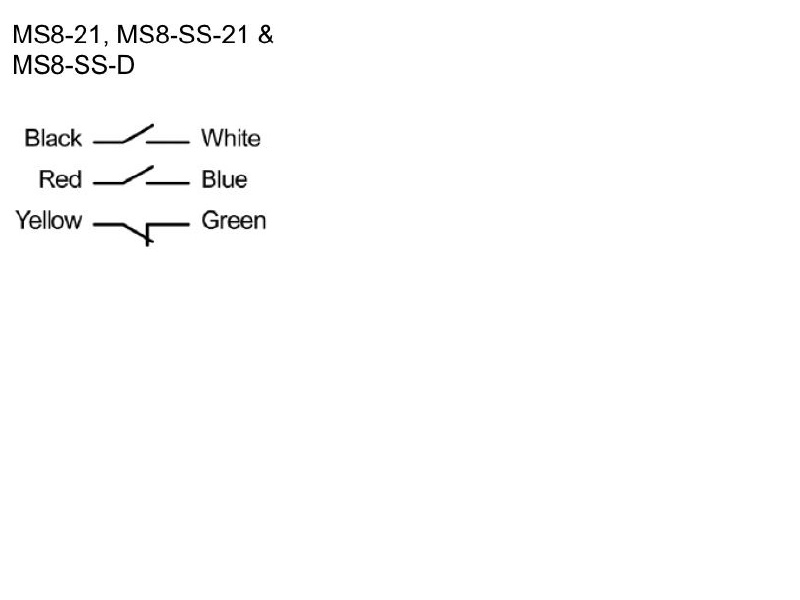

MS8 Connection

Technical Specifications
Construction 316 Grade Stainless Steel
Indication 1 x Volt Free Contact
IP Rating IP67 / IP69K
Weight na
Mounting 4 x M4 Security Screws
Safety Output Up to 2 x NO
Safety Output Rating 24Vdc / 400mA
Auxilliary Output Up to 1 x NC
Auxilliary Output Rating 15W / 10VA
Cable / Connector Pre-wired
Cable Length 3, 5 or 10 metre
Coding Magnet & Reed
Dimensions of Switch (mm) 82.5 x 150 x 19
Dimensions of Actuator (mm) 81.5 x 19 x 19
Environmental Specifications
Operating Temperature -25°C to 55°C
Storage Temperature -20°C to 60°C
Safety Related Data
PL in accordance with EN ISO 13849-1 na
SIL CL in accordance with EN IEC 62061 na
PFHd in accordance with EN IEC 62061 4.3 x 10-8
PFH 6.52 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM > 20 Years
DC 99%
SFF 98%
Notes

1)
Based on dual channel wiring according to CAT 4. Diagnostic coverage provided by downstream control logic. DC - medium, MTTFd = 100 Years

File Title File Name Download File
350 403 Iss7 MS8 MS8 D Installation Guide 350-403-Iss7-MS8-MS8-D-Installation-Guide.pdf PDF (927 KB)
