CE Approved

Housing:                                                                                                               Legacy Product
    Blue ABS, Resin Encapsulated                                                            (For Replacement Parts Only)
Contacts:
    1NO + 1NC or 2NO (with door open)
Connection:
    M12, 6-Pole
Coding:
    Single Code, RFID
Indication:
    Guard Status Indication
Ingress Protection Rating:
    IP67 and (IP69K: Pre-Wired Only)

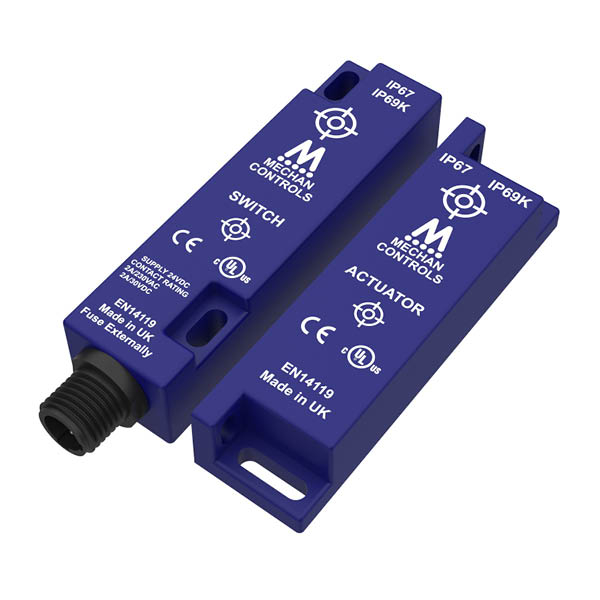

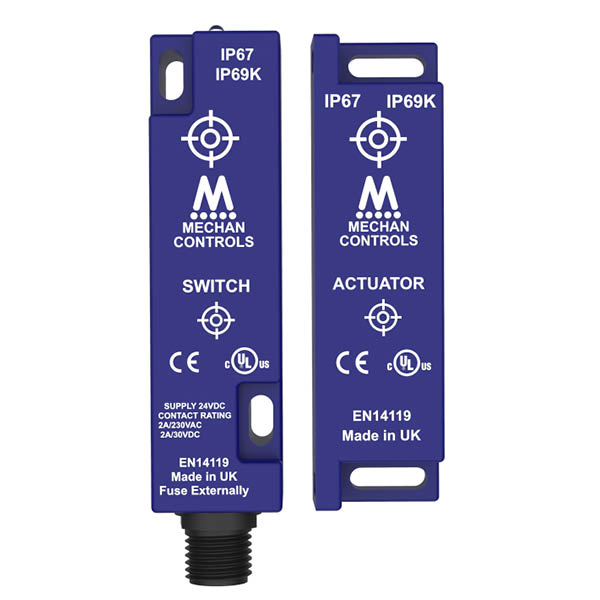

The SSS are standalone RFID, non-contact, safety switches. With 1NO + 1NC or 2NO contacts, capable of switching 3A at 30Vdc or 230Vac.

With tamper resistant, RFID switching, the SSS are suitable for use with most safety relays. A dual colour, built in LED, helps the operator in speedy fault diagnosis. The SSS safety switches are available with M12 quick disconnect and 5 or 10 metre cables.

Product Code Description Part No. Quote options Added to Basket
360.002 SSS / Plastic / 2NO / 24VDC / 6-Pole M12 (Switch and Actuator) - No Cable SSS-20-DC-QD
Qty: - +

360.003 SSS / Plastic / 1NO + 1NC / 24VDC / 6-Pole M12 (Switch and Actuator) - No Cable SSS-11-DC-QD
Qty: - +

360.005 SSS / Plastic / 2NO / 24VDC / 6-Pole M12 (Switch and Actuator) - 05M Cable SSS-20-QD-05M
Qty: - +

360.006 SSS / Plastic / 1NO + 1NC / 24VDC / 6-Pole M12 (Switch and Actuator) - 05M Cable SSS-11-QD-05M
Qty: - +

Get Quote

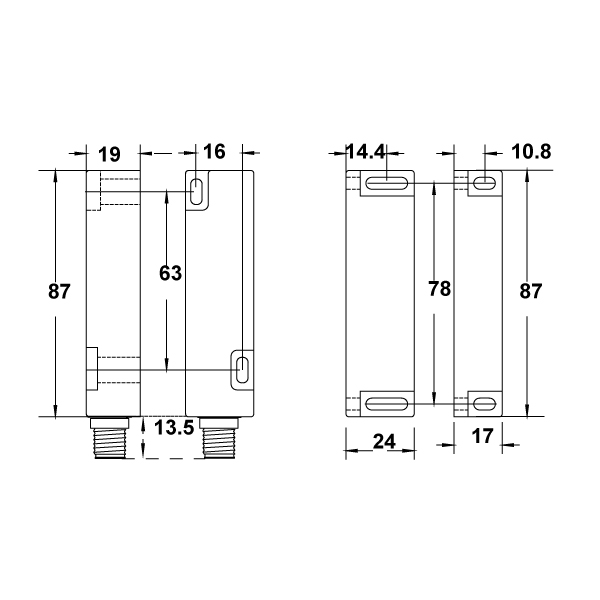

DIMENSIONS (MM)

Dimensions in millimetres

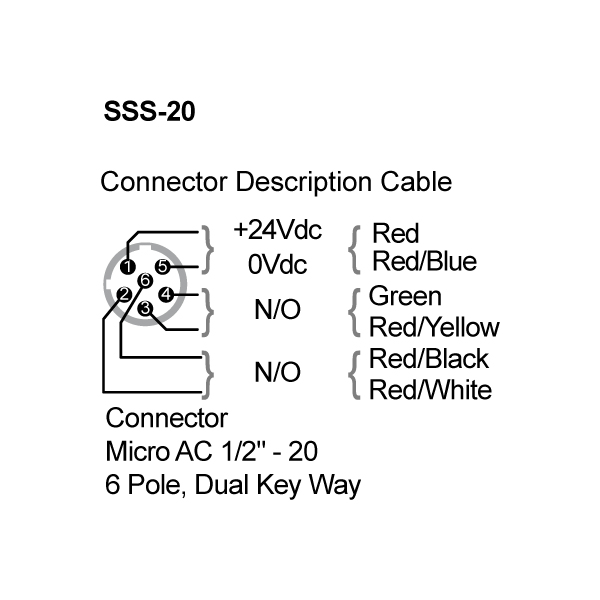

Quick Disconnect : 2 Normally Open Contacts

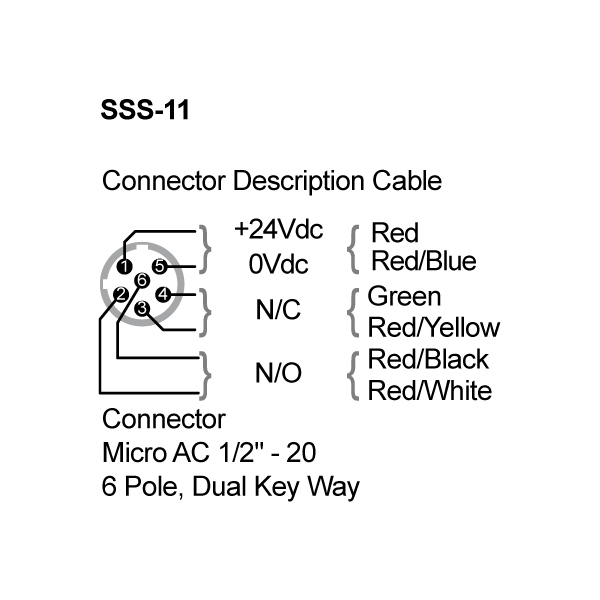

Quick Disconnect : 1 Normally Open Contact + 1 Normally Closed

Technical Specifications
Supply Voltage Options 24VDC
Power Consumption na
Safety Output Up to 2 x NO
Safety Output Rating 230Vac / 2Amps or 30Vdc / 2Amps
Auxilliary Output Up to 1 x NC
Auxilliary Output Rating 230Vac / 2A or 30Vdc / 2A
Cable / Connector Quick disconnect
Cable Length 5 or 10 metre
Coding Electronic, Generic code
Input GREEN LED
Indication 1 x Volt Free Contact
Dimensions of Switch (mm) 87 x 24 x 19mm
Dimensions of Actuator (mm) 87 x 24 x 17mm
Weight na
IP Rating IP67
Construction Blue ABS, Resin Filled
Mounting 4 x M4 Security Screws
Environmental Specifications
Operating Temperature -25°C to +55°C
Storage Temperature -25°C to +55°C
Safety Related Data
PL in accordance with EN ISO 13849-1 na
SIL CL in accordance with EN IEC 62061 na
PFHd in accordance with EN IEC 62061 4.3 x 10-8 See Note 1
PFH 6.52 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM > 20 Years
DC 99%
SFF 99%
Notes

1)
Based on dual channel wiring according to CAT 3. Diagnostic coverage provided by downstream control logic. DC - medium, MTTFd = 100 Years

File Title File Name Download File
360 400 Iss10 MECHAN S Type Installation Guide 360-400-Iss10-MECHAN-S-Type-Installation-Guide.pdf PDF (1.8 MB)
