ISIS

Approvals

CE Approved

•   CAT 3 SIL 3 PL-E safety system
•   Control unit monitors safety switches & e'stops
•   Guard status indication
•   Tamper resistant coded magnetic
•   Simple 2 wire connection

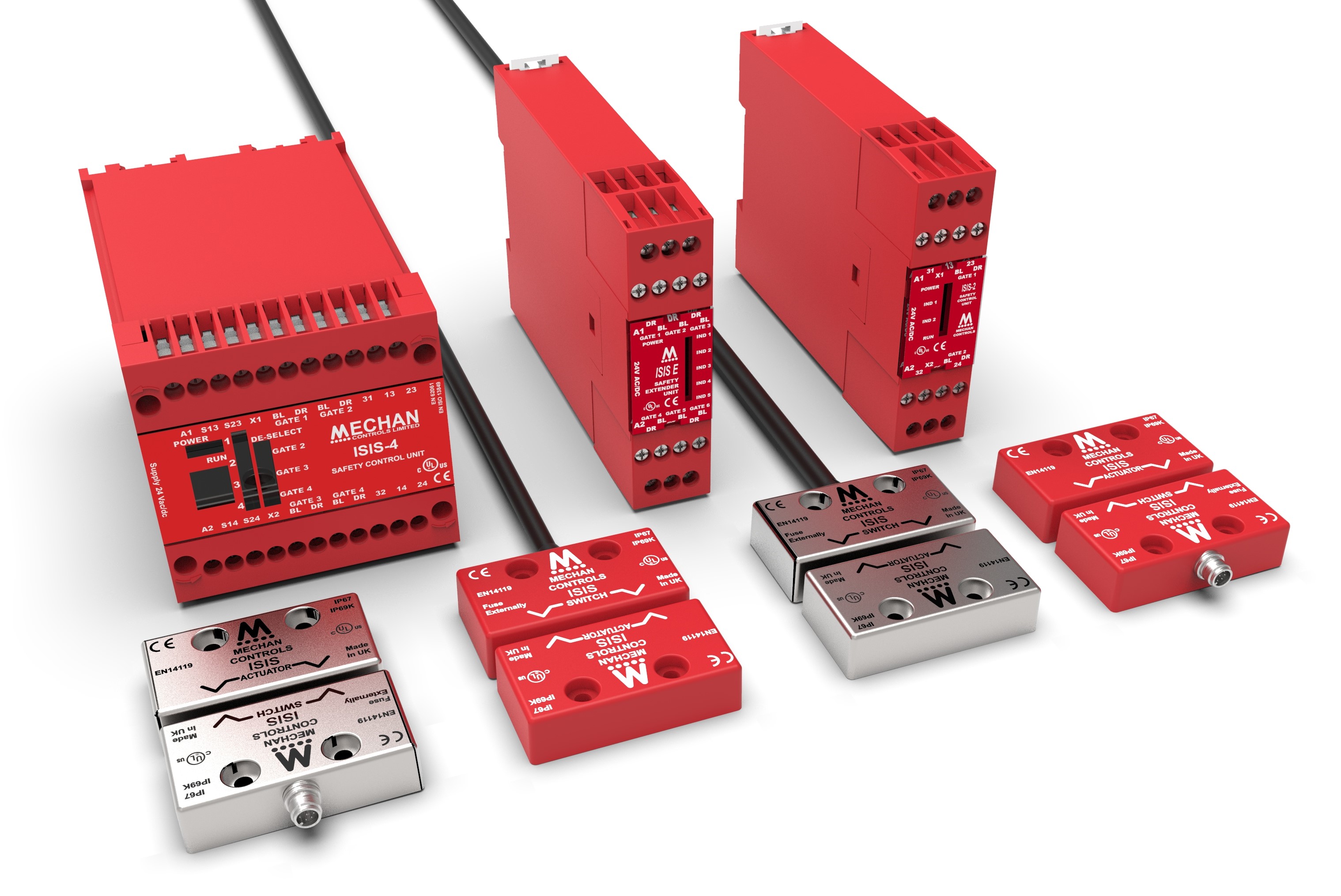

The ISIS safety system is a tamper resistant non-contact safety switch system, suitable for use in most types of machine guarding applications where guard locking is not required.
The ISIS Safety control units can monitor 2 (ISIS-2) or 4 (ISIS-4) safety switches with the ISIS-E being used to add more safety switch inputs to a system. The ISIS-4 can also be used to monitor the emergency stop button.
The non-contact safety switches are available in stainless steel or ABS and have a simple 2 wire connection to the control unit which can detect open and short circuit faults as they happen.

Fit & Forget - Safety from Mechan






The ISIS safety system is a tamper resistant non-contact safety switch system, suitable for use in most types of machine guarding applications where guard locking is not required.
Tested and approved by TUV to CAT 3 SIL 3 PLe performance the ISIS system is also UL approved for the USA.
The ISIS Safety control units can monitor 2 (ISIS-2) or 4 (ISIS-4) safety switches with the ISIS-E being used to add more safety switch inputs to a system. The ISIS-4 has the additional feature of combining and Emergency Stop button input with the safety switch control unit.
The non-contact safety switches have a simple 2 wire connection to the control unit inputs and are easy to install, tolerant to misalignment. The Control units have indicator LED’s for system/guard status along with safety control output and re-set options. Using a combination of ISIS-4 or ISIS-2 and the ISIS-E extender unit systems can be assembled to monitor up to 30 safety switches while maintaining CAT 3 SIL 3 PLe performance.



CONTROL MODULES

The ISIS Safety System has two main control module options and one extender module.

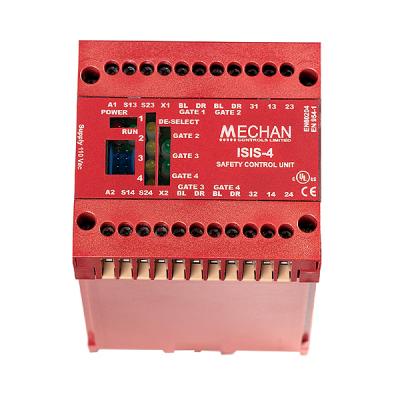

The ISIS-4 isis4_safety_control_unit.jpgcan monitor up to 4 ISIS safety switches and has separate inputs to monitor an Emergency Stop Button (or other safety device with 2 NO outputs). A DIP switch located beneath the lid is used to select the number of active safety switches, indicator LED’s show the number of gates that have been selected (1 to 4) . The ISIS-4 is easy to install, mounting on 35mm DIN rail, and provides LED status  indication for power, run and fault, along with 2 NO safety and 1 NC  auxiliary output contacts (4A /230V ac).

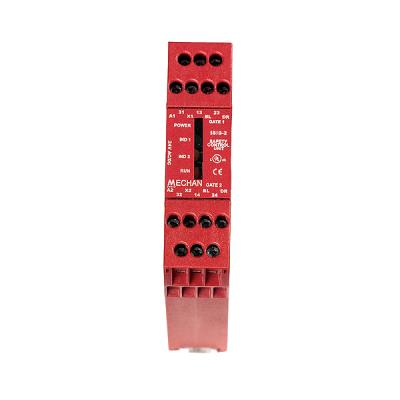

The ISIS-2 control unit can monitor up to 2 ISIS safety switches and is housed in a slim-line (22.5mm), 35mm DIN Rail mounting housing. This unit is suitable for 24V ac/dc operation and provides 2 NO safety and 1 NC auxiliary output contacts (4A / 230Vac). Indicator LED’s show power, run and gate status and a DIP switch located beneath the lid selects the number of active safety switches (1 or 2)

ISIS-E Extender module provides 5 safety switch inputs for either the ISIS-2 or ISIS-4 control units. Multiple ISIS-E extender modules can be connected together making it possible to monitor systems with up to 30 ISIS safety switches. The ISIS-E is suitable for 24V ac/dc operation. LED indication is available from all gate switches showing guard status.

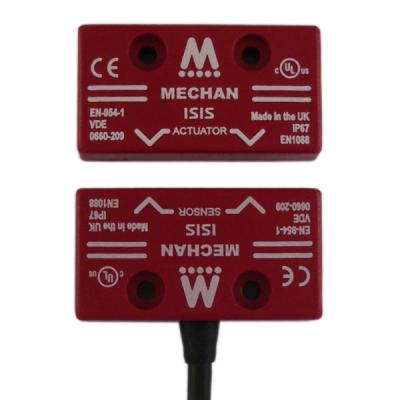

SAFETY SWITCHESisis_coded_magnetic_safety_switch.jpg

The ISISsafety switches use coded magnet technology, are compact, tamper-resistant, and yet still have 8mm switching, making them ideal for all types of applications where additional security is required. The switches and actuators are fully encapsulated, sealed to IP67 standards, and available in either ABS or 316 Grade stainless steel housings.

The simple 2-wire connection to the control unit has a major advantage over most other systems in that it can detect both open and short circuit faults in the connection as they occur. This gives immediate indication to the control unit moving the output contacts to a safe state, and eliminating the possibility of faults accumulating without detection.

Connect the required number of safety switches to the ISIS control unit (an internal switch is used to select how many are in operation). With the power on and all the safety switches closed, the system self-check is performed. The output safety contacts will only close if all activated safety switches are operating correctly and the internal self-check is completed successfully.



SYSTEM INSTALLATION



File Title File Name Download File
370-400v13(MECHAN ISIS INSTALLATION GUIDE).pdf 370-400v13MECHAN-ISIS-INSTALLATION-GUIDE.pdf PDF (0)
Product Type Product Code Description Part No.  Quote options Added to basket
isis isis4 safety control unit ISIS ISIS4
  370.000

ISIS-4 24V AC/DC SAFETY CONTROL UNIT

ISIS-4-24V
Qty: - +

  370.001 ISIS-4 110VAC SAFETY CONTROL UNIT ISIS-4-110VAC
Qty: - +

  370.002 ISIS-4 240VAC SAFETY CONTROL UNIT ISIS-4-240VAC
Qty: - +

Get Quote
isis isis2 safety control unit ISIS ISIS2
  371.000

ISIS-2 24VAC/DC SAFETY CONTROL UNIT

ISIS-2-24VDC
Qty: - +

Get Quote

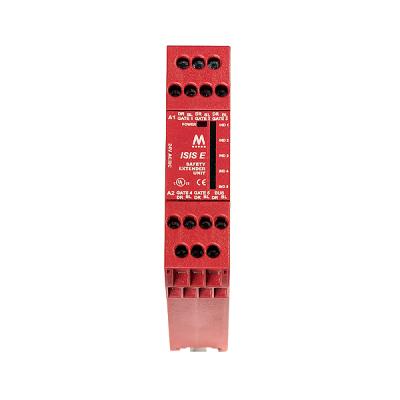

isise_safety_extender_unit.jpg ISIS ISISE
  375.000

ISIS EXTENDER

ISIS-EXT
Qty: - +

Get Quote
isis coded magnetic safety switch ISIS ISIS
  372.000

ISIS-03M SAFETY SWITCH

ISIS-03M
Qty: - +

  372.001 ISIS-05M SAFETY SWITCH ISIS-05M
Qty: - +

  372.002 ISIS-10M SAFETY SWITCH ISIS-10M
Qty: - +

  372.005 ISIS-03M switch only ISIS-03M(SO)
Qty: - +

  372.099 ISIS ACTUATOR ISIS-ACT
Qty: - +

Get Quote

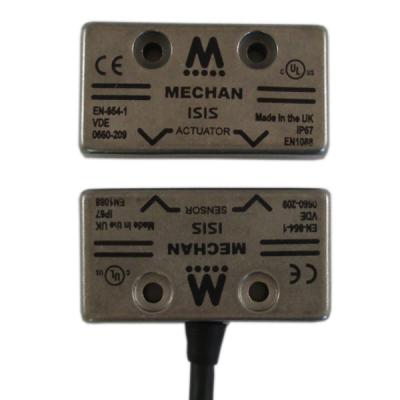

isis isisss coded magnetic safety switch ISIS ISISSS
  372.010

ISIS-SS-03M STAINLESS STEEL SAFETY SWITCH

ISIS-SS-03M
Qty: - +

  372.011 ISIS-SS-05M STAINLESS STEEL SAFETY SWITCH ISIS-SS-05M
Qty: - +

  372.012 ISIS-SS-10M STAINLESS STEEL SAFETY SWITCH ISIS-SS-10M
Qty: - +

  372.006 ISIS-SS-03M switch only ISIS-SS-03M(S0)
Qty: - +

  372.098 ISIS-SS-ACT ACTUATOR ONLY ISIS-SS-ACT
Qty: - +

Get Quote

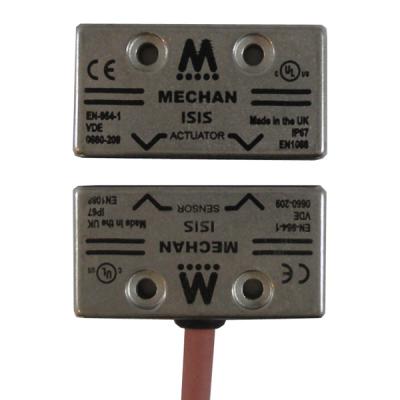

isis isisssht coded magnetic safety switch ISIS ISISSSHT
  372.013 ISIS-SS-03M-HT STAINLESS STEEL SAFETY SWITCH ISIS-SS-03M-HT
Qty: - +

Get Quote

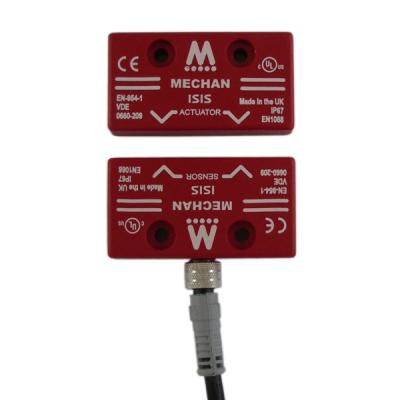

isis isisqd coded magnetic safety switch ISIS ISISQD
  372.020

ISIS-QD-05M ISIS QUICK DISCONNECT C/W 5M CABLE

ISIS-QD-05M
Qty: - +

  372.021 ISIS-QD-15M ISIS QUICK DISCONNECT C/W 15M CABLE ISIS-QD-15M
Qty: - +

  372.026 ISIS-QD ISIS QUICK DISCONNECT SAFETY SWITCH ISIS-QD(NC)
Qty: - +

Get Quote

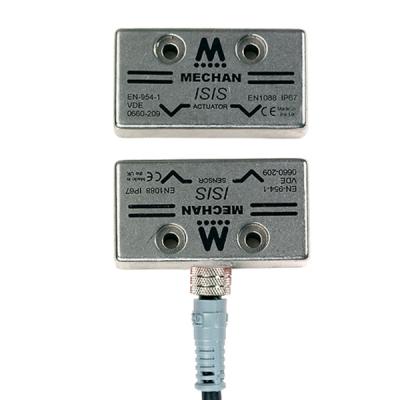

isis isisssqd coded magnetic safety switch ISIS ISISSSQD
  372.022 ISIS-SS-QD-05M ISIS QUICK DISCONNECT STAINLESS 5M ISIS-QD-SS-05M
Qty: - +

  372.023 ISIS-SS-QD-15M ISIS QUICK DISCONNECT STAINLESS 15M ISIS-SS-QD-15M
Qty: - +

  372.027 ISIS-SS-QD ISIS SS QUICK DISCONNECT SAFETY SWITCH ISIS-SS-QD(NC)
Qty: - +

Get Quote
