Approvals
Housing:
Clear/Grey ABS
Contacts:
2NO
Contact Rating:
500mA 24VDC
Coding:
Uniquely Coded, RFID
Indication:
Bi-Colour LED (Open/Close Indication)
Ingress Protection Rating:
IP65

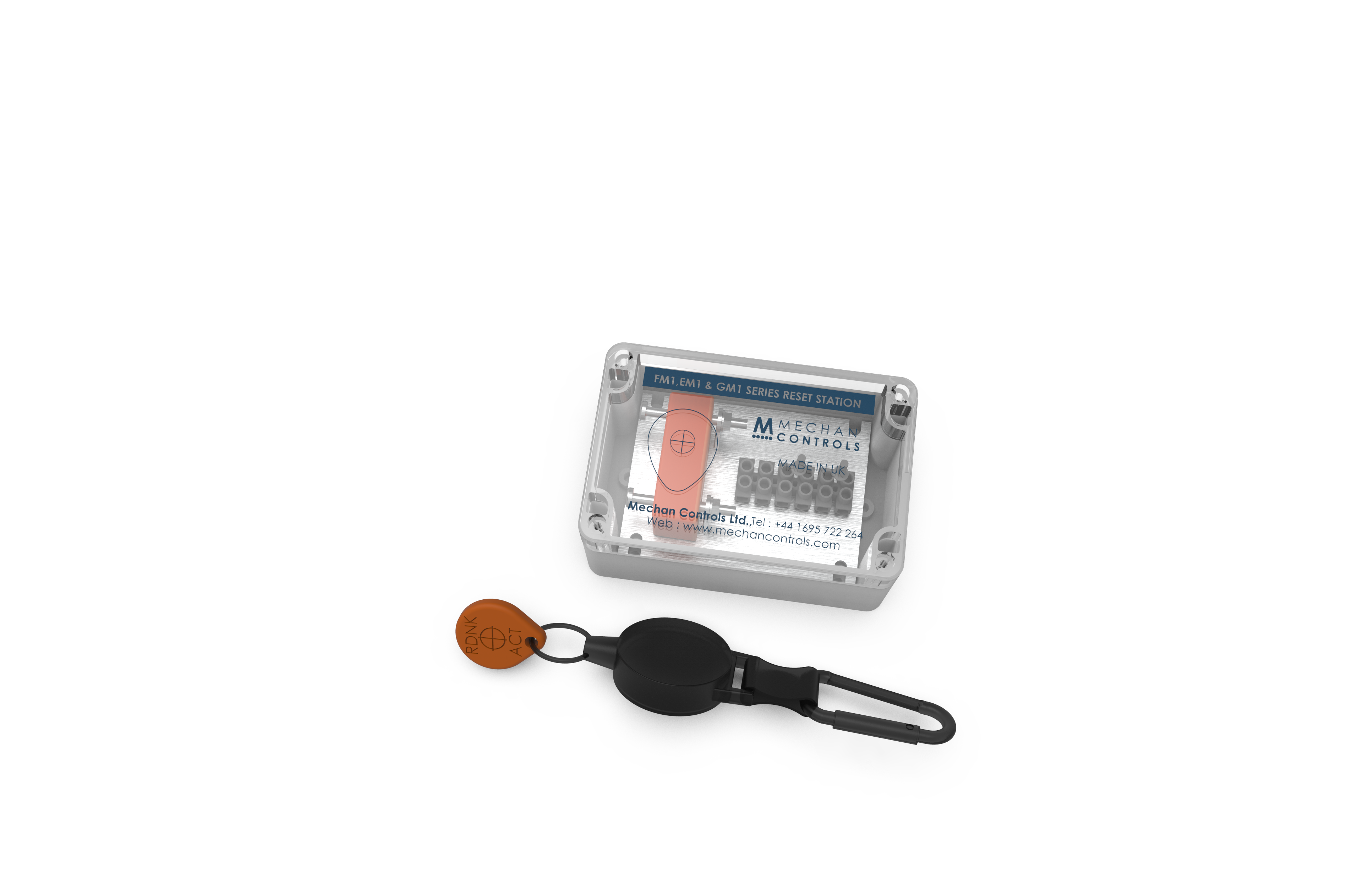

RDNK are standalone, non-contact RFID safety switches. With 2NO + 1NC contacts, capable of switching 500mA at 24Vdc. With tamper proof RFID switching, the RDNK are suitable for use with safety relays with a low inrush current. A dual colour, built in LED helps the operator in speedy fault diagnosis. The RDNK safety switches are available with 3, 6 or 10 metre pre-wired cables which are fully sealed and suitable for use in most wet / harsh environments.
| Technical Specifications | |
|---|---|
| Supply Voltage Options | 24Vdc |
| Power Consumption | 2VA / 2W |
| Safety Output | 2 X NO |
| Safety Output Rating | 24Vdc / 500mA |
| Auxilliary Output Rating | 24Vdc / 500mA |
| Cable / Connector | PRE-WIRED |
| Cable Length | 3, 6 OR 10 METRE |
| Coding | RFID, UNIQUELY CODED |

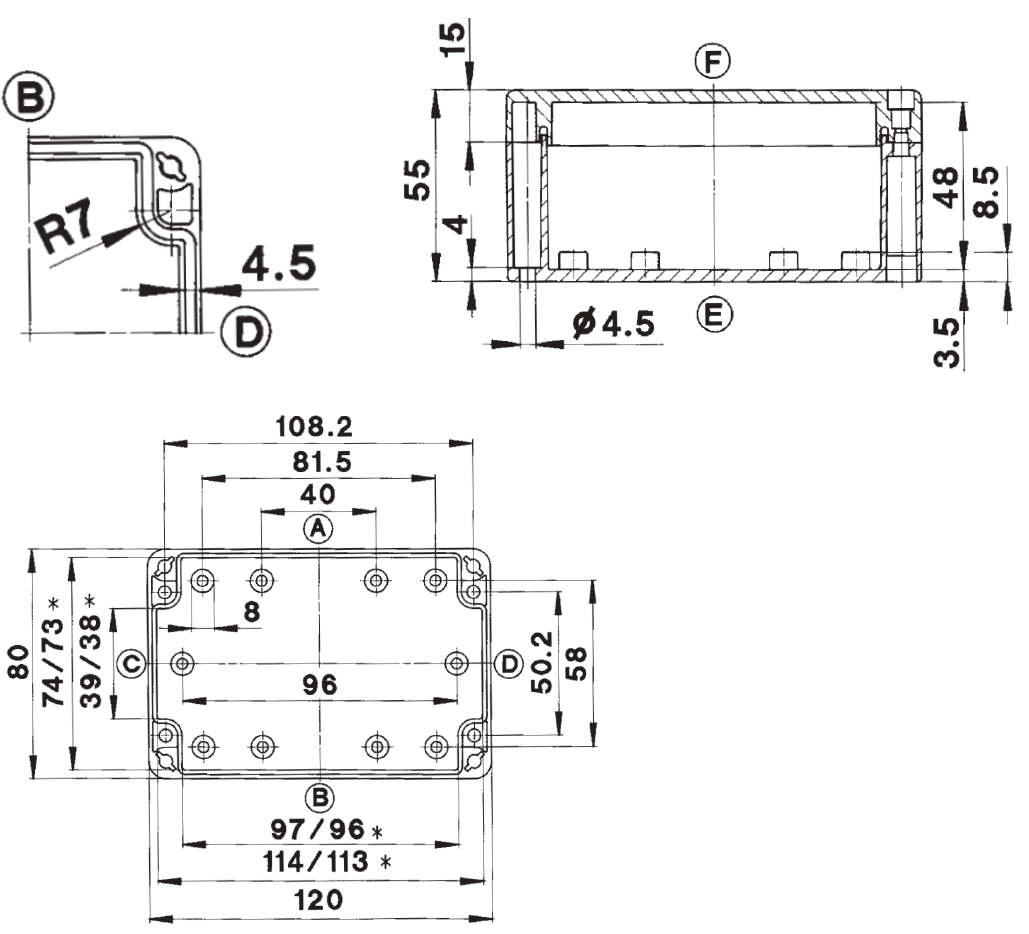

| Dimensions of Switch (mm) | |
| Dimensions of Actuator (mm) | |
| Weight | NA |
| IP Rating | IP65 |
| Construction | Clear/Grey ABS |
| Mounting | 4 x M4 Security Screws |
| Environmental Specifications | |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -10°C to +60°C |
| Safety Related Data | |
| PL in accordance with EN ISO 13849-1 | E |
| SIL CL in accordance with EN IEC 62061 | 3 |
| PFHd in accordance with EN IEC 62061 | 4.3 x 10-8 |
| PFH | 6.52 x 10-8 |
| B10d | 2,000,000 |
| MTTFd | High > 100 Years ( Based on usage rate of 360 Days |
| TM | > 20 Years |
| DC | 99% |
| SFF | 99% |
| Notes | |
1) Based on dual channel wiring according to CAT 4. Diagnostic coverage provided by downstream control logic. DC - medium, MTTFd = 100 Years | |
| File Title | File Name | Download File |
|---|---|---|
| 319 400 Iss1 Reset Station Installation Guide | 319-400-Iss1-Reset-Station-Installation-Guide.pdf | PDF (1.3 MB) |
