CX2

CX2 CX2 CX2 CX2

Approvals

CE Approved

•   Dual safety switch extender module
•   LED and volt free contact indication
•   35mm DIN rail mounting
•   17.5 mm wide

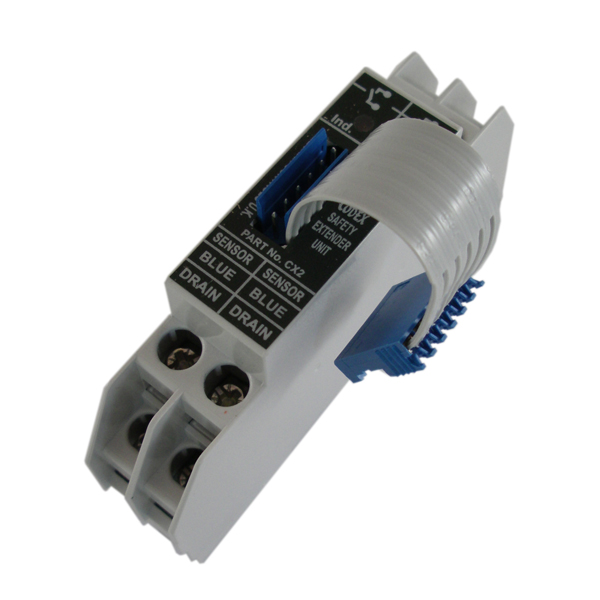

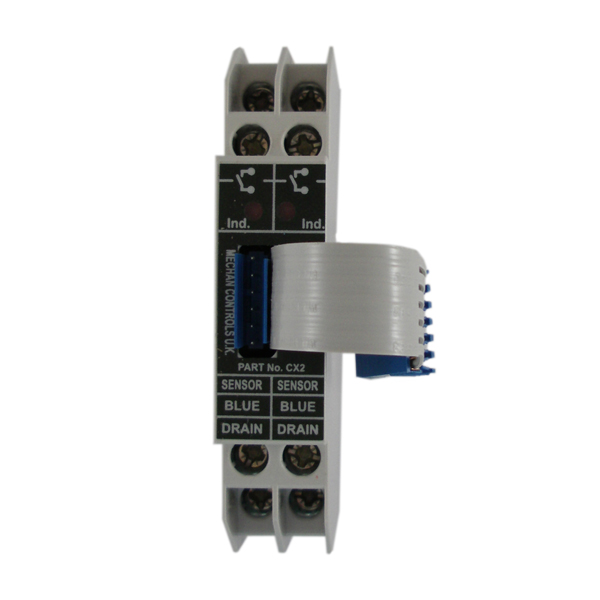

The CX2 extender module adds two safety switch inputs to a CODEX safety system. Connects via a built in 6-way strap to the adjacent CM1 control module (or extender module) and has the indication output, LED and volt free contact, for each switch.

NOTE. An CX2 must have 2 Mechan safety switches connected to it to operate.

Product Code Description Part No. Quote options Added to Basket
321.000 CX1 CODEX SAFETY EXTENDER MODULE CX1
Qty: - +

321.001 CX2 CODEX SAFETY EXTENDER MODULE CX2
Qty: - +

Get Quote

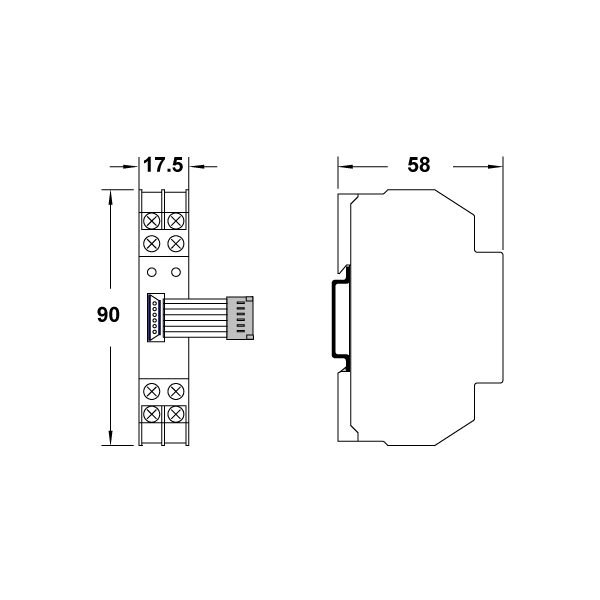

DIMENSIONS (MM)

Dimensions in millimetres

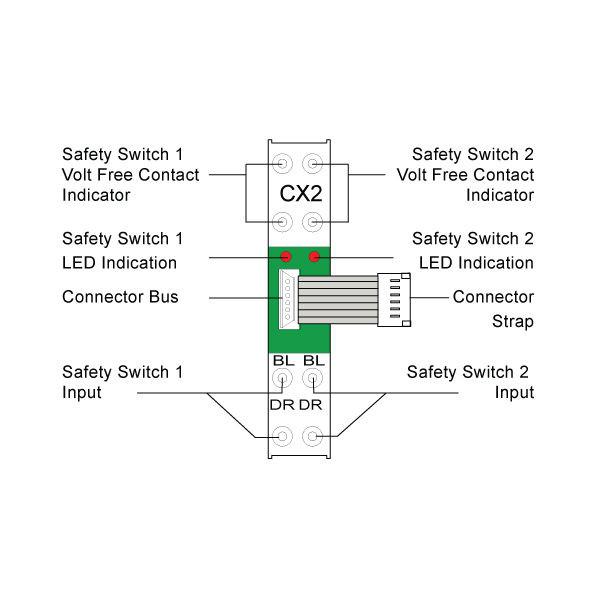

PRODUCT LAYOUT


CONNECTION DRAWING 1

Technical Specifications
Power Consumption NA
Coding Digital Electronic, Generic code
Input 2 Codex Safety Switches
Indication Guard Status LED'S and Volt Free Contact'S
Dimensions of Control Unit (mm) 17.5 x 90 x 58mm
Weight na
IP Rating Housing IP40, Terminals IP20
Construction Grey PC-GF
Mounting 35mm DIN Rail
Environmental Specifications
Operating Temperature 0°C to 45°C
Storage Temperature -20°C to 50°C
Safety Related Data
PL in accordance with EN ISO 13849-1 CAT 4
SIL CL in accordance with EN IEC 62061
PFHd in accordance with EN IEC 62061
PFH
B10d
MTTFd
TM
DC
SFF
Notes

As part of a CODEX system

File Title File Name Download File
MECHAN CODEX INSTALLATION GUIDE 320-400V7-MECHAN-CODEX-INSTALLATION-GUIDE.pdf PDF (526 KB)
