MS6QD

MS6QD MS6QD MS6QD

Approvals

CE Approved

•   Max Contacts 2 Safety 1 Auxiliary
•   Contact Rating 2Amp 230VAC / 1Amp 24VDC
•   M12 Quick Disconnect
•   10mm Switching
•   Slim-line ABS Housing, Fully Sealed IP67

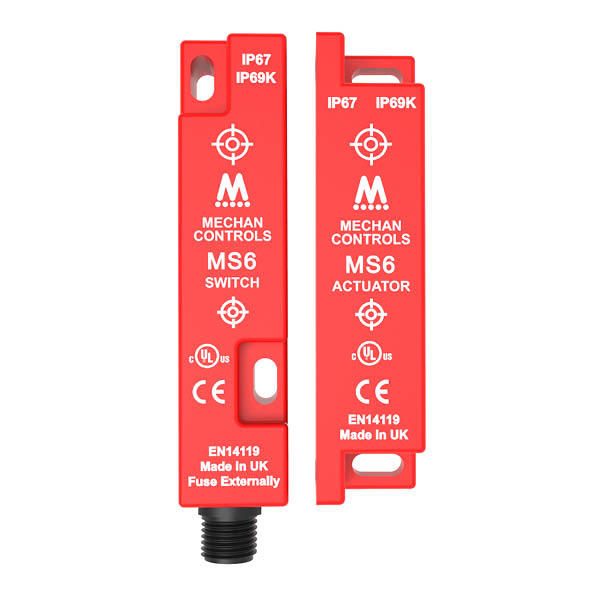

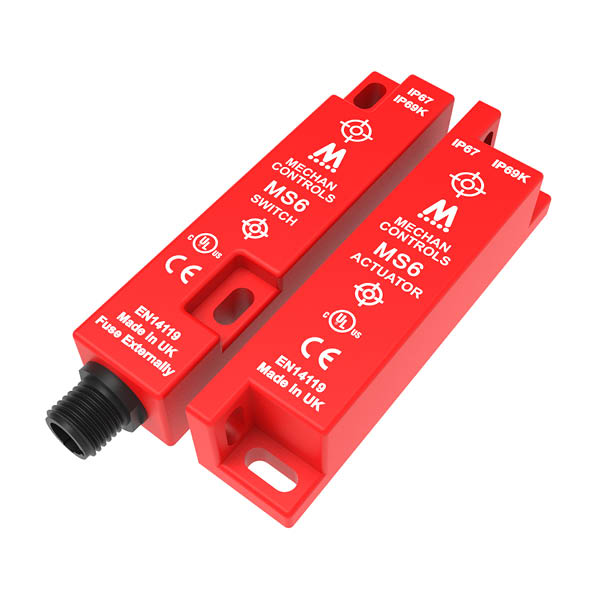

The MAGNASAFE MS6 non-contact safety switches are an industry standard, slim-line, space saving design. Encapsulated into red ABS housings, the MS6 safety switches are easy to install, tolerant to misalignment. The non-contact operation has an 8 – 10 mm switching distance helping to ensure a long and trouble free operating life.

Product Code Description Part No. Quote options Added to Basket
356.016 MS6-10-DC-QD SWITCH AND ACTUATOR (NO CABLE) MS6-10-DC-QD
Qty: - +

356.017 MS6-11-DC-QD SWITCH AND ACTUATOR (NO CABLE) MS6-11-DC-QD
Qty: - +

356.018 MS6-20-DC-QD SWITCH AND ACTUATOR (NO CABLE) MS6-20-DC-QD
Qty: - +

356.019 MS6-21-DC-QD SWITCH AND ACTUATOR (NO CABLE) MS6-21-DC-QD
Qty: - +

356.020 MS6-10-AC-QD SWITCH AND ACTUATOR (NO CABLE) MS6-10-AC-QD
Qty: - +

356.021 MS6-11-AC-QD SWITCH AND ACTUATOR (NO CABLE) MS6-11-AC-QD
Qty: - +

356.022 MS6-20-AC-QD SWITCH AND ACTUATOR (NO CABLE) MS6-20-AC-QD
Qty: - +

356.023 MS6-21-AC-QD SWITCH AND ACTUATOR (NO CABLE) MS6-21-AC-QD
Qty: - +

356.024 MS6-10-DC-QD-05M SWITCH AND ACTUATOR (05M QD CABLE) MS6-10-DC-QD-05M
Qty: - +

356.025 MS6-11-DC-QD-05M SWITCH AND ACTUATOR (05M QD CABLE) MS6-11-DC-QD-05M
Qty: - +

356.026 MS6-20-DC-QD-05M SWITCH AND ACTUATOR (05M QD CABLE) MS6-20-DC-QD-05M
Qty: - +

356.082 MS6-20-DC-QD-10M SWITCH AND ACTUATOR (10M QD CABLE) MS6-20-DC-QD-10M
Qty: - +

356.027 MS6-21-DC-QD-05M SWITCH AND ACTUATOR (05M QD CABLE) MS6-21-DC-QD-05M
Qty: - +

356.037 MS6-21-DC-QD-10M SWITCH AND ACTUATOR (10M QD CABLE) MS6-21-DC-QD-10M
Qty: - +

356.028 MS6-10-AC-QD-05M SWITCH AND ACTUATOR (05M QD CABLE) MS6-10-AC-QD-05M
Qty: - +

356.029 MS6-11-AC-QD-05M SWITCH AND ACTUATOR (05M QD CABLE) MS6-11-AC-QD-05M
Qty: - +

356.030 MS6-20-AC-QD-05M SWITCH AND ACTUATOR (05M QD CABLE) MS6-20-AC-QD-05M
Qty: - +

356.031 MS6-21-AC-QD-05M SWITCH AND ACTUATOR (05M QD CABLE) MS6-21-AC-QD-05M
Qty: - +

Get Quote

DIMENSIONS (MM)

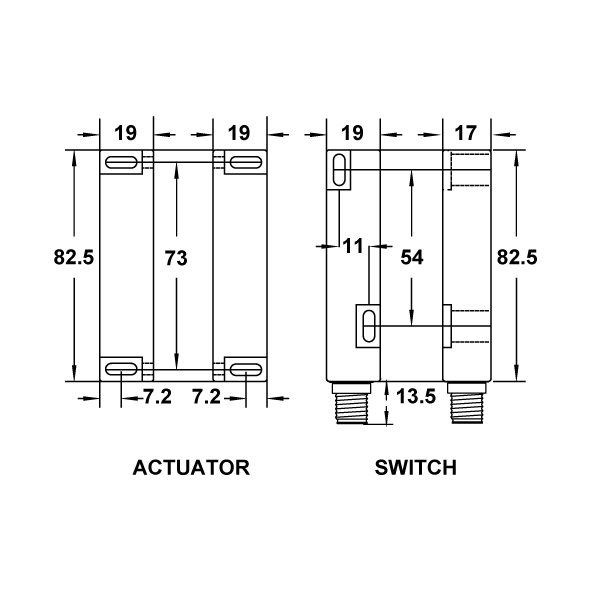

Dimensions in millimetres

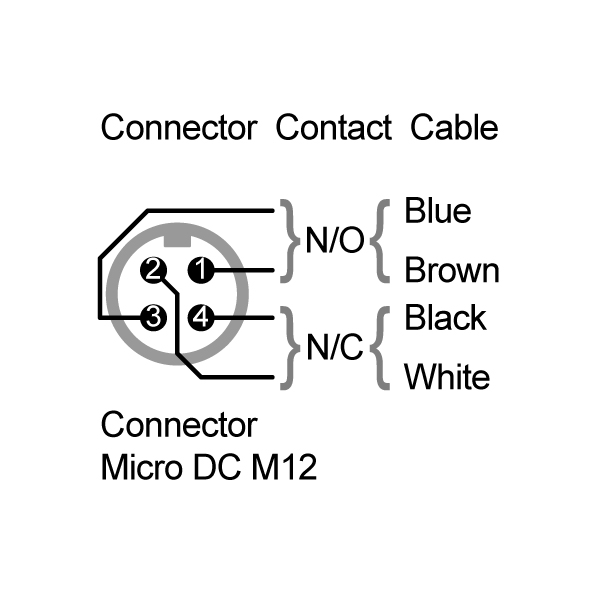

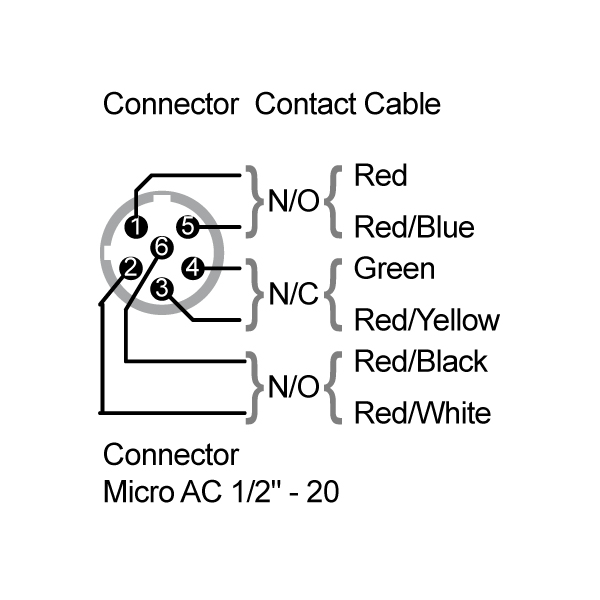

M12 Connector : 2 Normally Open Contacts + 1 Normally Closed Contact

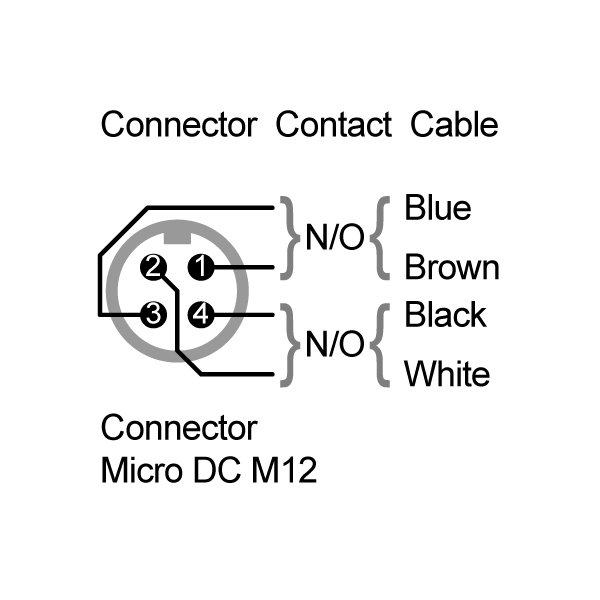

M12 Connector : 2 Normally Open Contacts

M12 Connector : 1 Normally Open Contact + 1 Normally Closed Contact

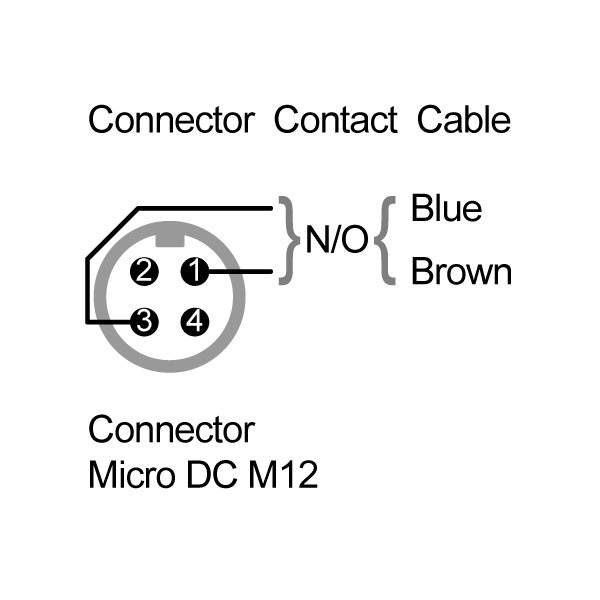

M12 Connector : 1 Normally Open Contacts

Technical Specifications
Safety Output Up to 2 x NO
Safety Output Rating 230Vac / 2Amps, 110Vac / 3Amps or 24Vdc / 1 Amp
Auxilliary Output Up to 1 x NC
Auxilliary Output Rating 15W / 10VA
Cable / Connector Quick disconnect
Cable Length 5 or 10 metre
Coding None
Dimensions of Switch (mm) 82.5 x 19 x 17mm
Dimensions of Actuator (mm) 82.5 x 19 x 19mm
Weight na
IP Rating IP67
Construction Red ABS, Resin Filled
Mounting 4 x M4 Security Screws
Environmental Specifications
Operating Temperature -25°C to +55°C
Storage Temperature -25°C to +55°C
Safety Related Data
PL in accordance with EN ISO 13849-1 na
SIL CL in accordance with EN IEC 62061 na
PFHd in accordance with EN IEC 62061 4.3 x 10-8 See Note 1
PFH 6.52 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM > 20 Years
DC 99%
SFF 98%
Notes

Based on dual channel wiring according to CAT 3. Diagnostic coverage provided by downstream control logic. DC - medium, MTTFd = 100 Years

File Title File Name Download File
MECHAN MAGNASAFE MS6&21 INSTALLATION GUIDE 350-402-ID1rev5-Mechan-Magnasafe-MS621-Install-Guide.pdf PDF (2 MB)
