CMP

CMP CMP CMP CMP

Approvals

CE Approved

•   Unique code electronic safety switch
•   Fully encapsulated, IP67
•   Pre-wired, 5, 10, 15 metre cable (Max 100m)
•   Built in liquid tight anaconda adaptor

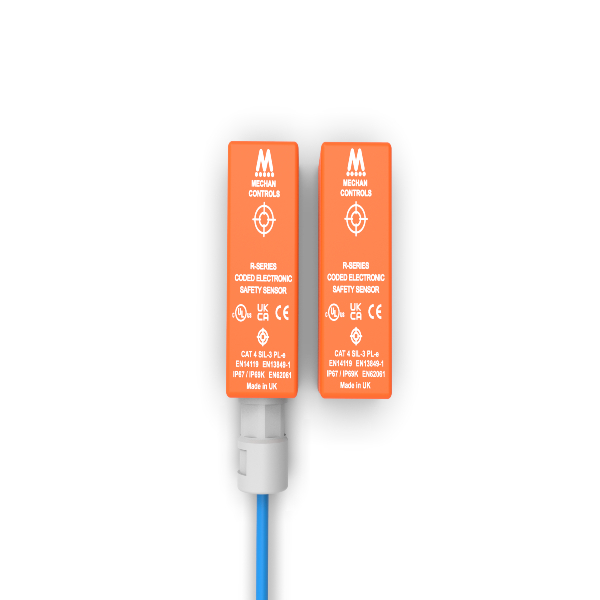

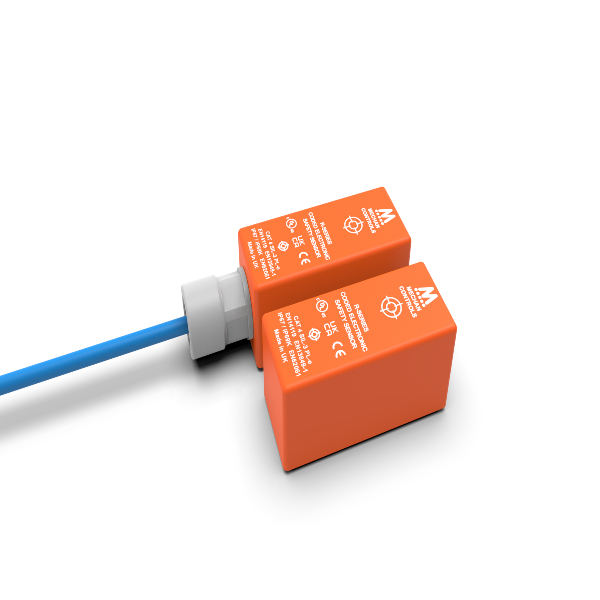

The NEW CMP safety switches are uniquely coded electronic RFID safety switches. Fully encapsulated into orange ABS housings the CMP safety switches have all the strengths of the F-Series switches with the additional benefit of unique coding. The C-Series meets the highest requirement of EN 14119, enabling unique switches to be mounted on every guarding position. The CMP can also be used along with the standard F-Type switches if only a few guards in the system need the additional security of unique coding.

Product Code Description Part No. Quote options Added to Basket
311.006 CMP-10M F-TYPE CODED SAFETY SWITCH CMP-10M
Qty: - +

311.007 CMP-15M F-TYPE CODED SAFETY SWITCH CMP-15M
Qty: - +

Get Quote

Dimensions (mm)

Dimensions in millimetres

Connection Drawing 1

Technical Specifications
Power Consumption na
Cable / Connector Pre-wired
Cable Length 5/10 15 metre longer to order
Coding Electronic, Unique Codes
Reset Options At control unit
Indication At control unit
Dimensions of Switch (mm) 75 x 34 x 32mm
Dimensions of Actuator (mm) 75 x 34 x 32mm
Weight na
IP Rating IP67
Construction Orange ABS, Resin Filled
Mounting 4 x M6 Bolts
Environmental Specifications
Operating Temperature -20°C to 50°C
Storage Temperature -20°C to 50°C
Safety Related Data
PL in accordance with EN ISO 13849-1 PL-e, CAT 4
SIL CL in accordance with EN IEC 62061 SIL 3
PFHd in accordance with EN IEC 62061 6.0 x 10 -9
PFH 6.52 x 10 -9
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM 20 years
DC 99%
SFF 99.50%
Notes

As part of an F Series system
