RSSG LQD

RSSG LQD

Approvals

CE Approved

Housing:
    Orange ABS, Resin Encapsulated
Contacts:
    2NO + 1NC (with door open)
Connection:
    M12, 8-Pole
Coding:
    Uniquely Coded, RFID
Indication:
    Bi-Colour LED (Open/Close Indication)
Ingress Protection Rating:
    IP67 and (IP69K: Pre-Wired Only)

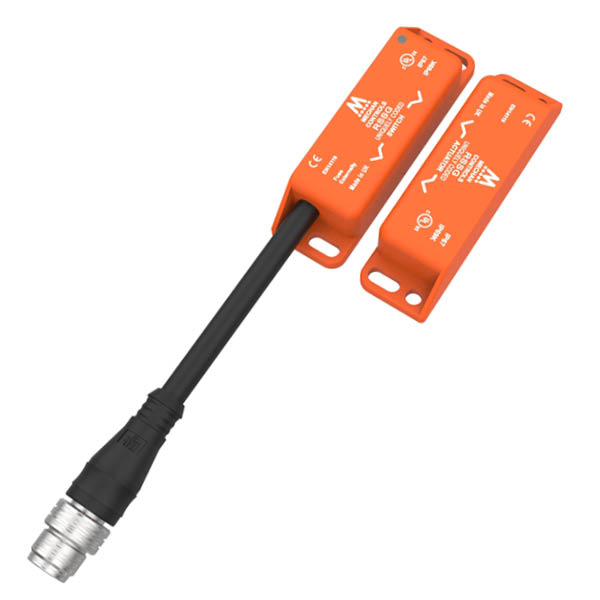

RSSG are standalone, non-contact RFID safety switches. With 2NO + 1NC contacts, capable of switching 3A at 24Vdc / 230Vac. With tamper proof RFID switching, the RSSG are suitable for use with most safety relays. A dual colour, built in LED helps the operator in speedy fault diagnosis. The RSSO safety switches are available with an M12 leaded quick disconnect which are fully sealed and suitable for use in most wet / harsh environments.

Product Code Description Part No. Quote options Added to Basket
364.025 RSSG / Plastic / 2NO + 1NC / 24VDC / 8-Pole M12 (Switch and Actuator) - No Cable RSSG-21-DC-LQD
Qty: - +

364.023 RSSG / Plastic / 2NO + 1NC / 24VDC / 8-Pole M12 (Switch and Actuator) - 05M Cable RSSG-21-DC-LQD-05M
Qty: - +

364.024 RSSG / Plastic / 2NO + 1NC / 24VDC / 8-Pole M12 (Switch and Actuator) - 10M Cable RSSG-21-DC-LQD-10M
Qty: - +

364.035 RSSG-ACT ACTUATOR ONLY RSSG-ACT
Qty: - +

356.073 CABLE 8 CORE 05M 1 KEY WAY QD 8-CORE-1KEYWAY-05M-QD
Qty: - +

356.077 CABLE 8 CORE 10M 1 KEY WAY QD 8-CORE-1KEYWAY-10M-QD
Qty: - +

Get Quote

DIMENSIONS

DIMENSIONS 2

CONNECTION DRAWING 1

Technical Specifications
Supply Voltage Options 24Vdc
Power Consumption 2VA / 2W
Safety Output 2 X NO
Safety Output Rating 24Vdc/230Vac / 3 Amps
Auxilliary Output 1 X NC
Auxilliary Output Rating 24Vdc/230Vac / 3 Amps
Cable / Connector PRE-WIRED
Cable Length 3, 6 or 10 metre
Coding RFID, Uniquely coded
Indication DUAL COLOUR LED
Dimensions of Switch (mm) 88 X 25 X 20
Dimensions of Actuator (mm) 88 X 25 X 20
IP Rating IP69K
Construction ORANGE ABS, RESIN FILLED
Mounting 4 x M4 Security Screws
Environmental Specifications
Operating Temperature -10°C to +60°C
Storage Temperature -10°C to +60°C
Safety Related Data
PL in accordance with EN ISO 13849-1 E
SIL CL in accordance with EN IEC 62061 3
PFHd in accordance with EN IEC 62061 4.3 x 10-8
PFH 6.52 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM > 20 Years
DC 99%
SFF 99%
Notes

1) Based on dual channel wiring according to CAT 4. Diagnostic coverage provided by downstream control logic. DC - medium, MTTFd = 100 Years
