• 1 safety switch input
• Dual channel output & monitoring
• 35mm DIN Rail mounting
• Fully electronic safety switches
• Unique code option (EN 14119)

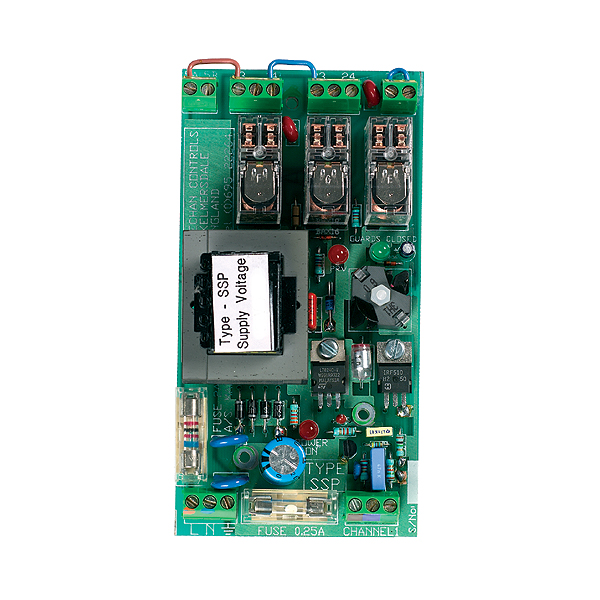

The SSP has 2 NO safety output contacts and a reset/monitoring circuit for simple connection to existing control systems. Designed to monitor 1 fully electronic, Mechan safety switch, the SSP can be added to other MPX safety control units to monitor larger systems. Mounted on a chassis plate the SSP is designed for easy fitting into a control panel. Optional indicator boards give the safety switch input LED, TFR or volt free contact status indication.

The SSP control units are designed to work with the F-Type, B-Type, S-Type, Dinky electronic safety switches and the unique code CMA electronic safety switches.

Product Code Description Part No. Quote options Added to Basket
305.000 SSP 24VDC SAFETY CONTROL UNIT CHASSIS MOUNTED SSP 24VDC
Qty: - +

305.001 SSP 24VAC SAFETY CONTROL UNIT CHASSIS MOUNTED SSP 24VAC
Qty: - +

305.002 SSP 110VAC SAFETY CONTROL UNIT CHASSIS MOUNTED SSP 110VAC
Qty: - +

305.003 SSP 240VAC SAFETY CONTROL UNIT CHASSIS MOUNTED SSP 240VAC
Qty: - +

Get Quote

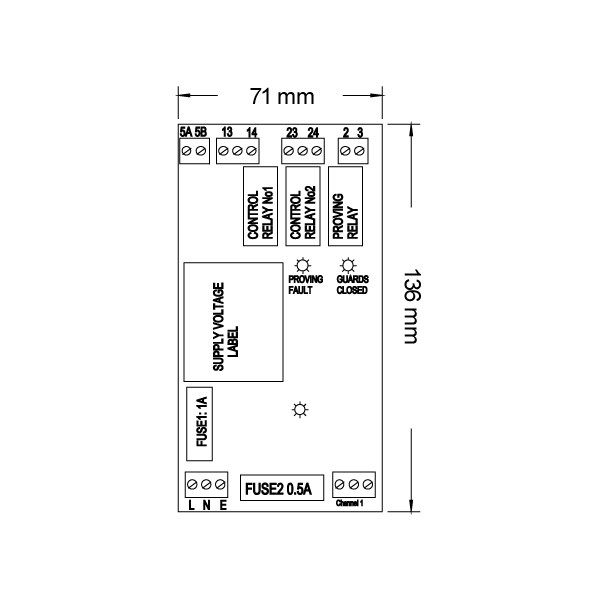

Dimensions ( mm )

Dimensions in millimetres

Product Layout

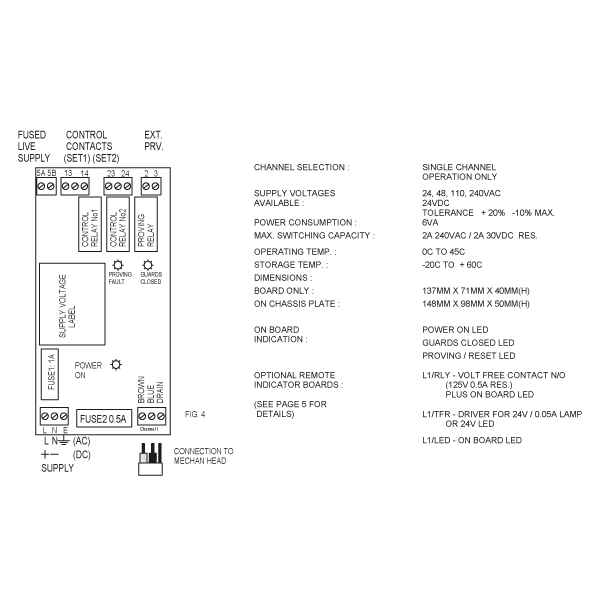

Connection Drawing 1

Connection Drawing 2

Connection Drawing 3

Technical Specifications
Supply Voltage Options 24VDC / 24VAC / 110VAC / 230VAC
Power Consumption 6VA
Safety Output 2 Normally Open
Safety Output Rating 2A/240VAC / 2A 30VDC
Coding Electronic, Generic code
Input 1 Electronic Safety Switch
Reset Options External Proving / reset Connection
Indication On board LED's for Power, Run& Fault, Optional Ind
Dimensions of Control Unit (mm) PCB Only 137(d) x 71(w) x 40(h)mm / Chassis Plate
Weight na
Construction Open PCB
Mounting Chassis Plate
Environmental Specifications
Operating Temperature 0°C to 45°C
Storage Temperature -20°C to 60°C
Safety Related Data
File Title File Name Download File
MECHAN MPX v4 INSTALLATION GUIDE 303-400V3-MECHAN-MPX-v4-INSTALLATION-GUIDE.pdf PDF (105 KB)
