MS1

MS1 MS1 MS1

Approvals

CE Approved

•   Max Contacts 2 Safety 1 Auxiliary
•   Contact Rating 2Amp 230VAC / 1Amp 24VDC
     (3A 110VAC Version available)
•   10mm Switching
•   Fully Sealed IP67

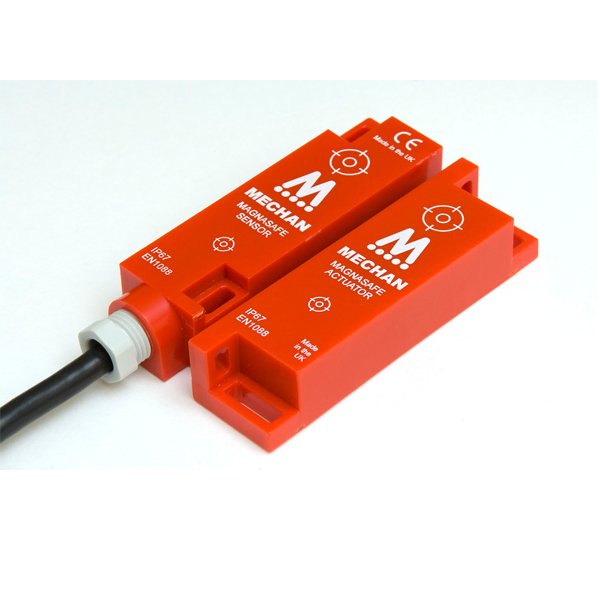

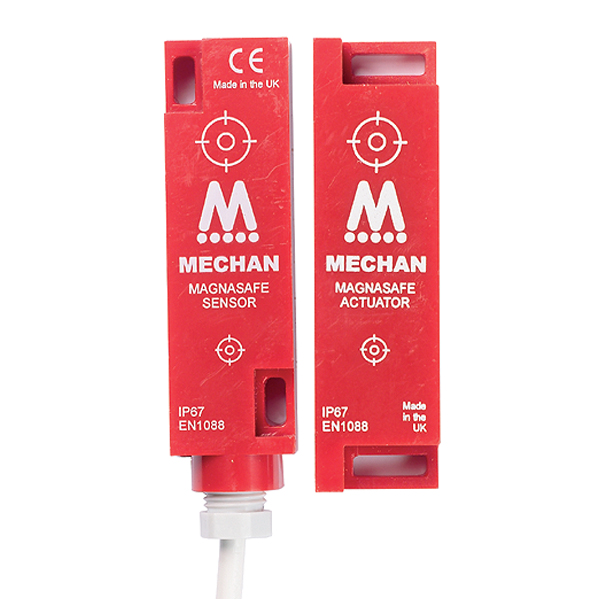

The Magnasafe MS1 are magnetically operated safety switches, suitable for use in machine guarding applications. Encapsulated into red ABS housings, the MS1 safety switches are easy to install, tolerant to misalignment. With an 8 – 10 mm switching distance helping to ensure a long and trouble free operating life.



Product Code Description Part No. Quote options Added to Basket
350.000 MS1-10-AC-03M SWITCH AND ACTUATOR MS1-10-AC-03M
Qty: - +

350.001 MS1-11-AC-03M SWITCH AND ACTUATOR MS1-11-AC-03M
Qty: - +

350.002 MS1-20-AC-03M SWITCH AND ACTUATOR MS1-20-AC-03M
Qty: - +

350.003 MS1-21-AC-03M SWITCH AND ACTUATOR MS1-21-AC-03M
Qty: - +

350.004 MS1-10-110AC-03M SWITCH AND ACTUATOR MS1-10-110AC-03M
Qty: - +

350.005 MS1-10-110AC-06M SWITCH AND ACTUATOR MS1-10-110AC-06M
Qty: - +

350.006 MS1-11-AC-10M SWITCH AND ACTUATOR MS1-11-AC-10M
Qty: - +

350.007 MS1-21-AC-10M SWITCH AND ACTUATOR MS1-21-AC-10M
Qty: - +

350.008 MS1-10-AC-05M SWITCH AND ACTUATOR MS1-10-AC-05M
Qty: - +

350.009 MS1-11-110AC-03M SWITCH AND ACTUATOR MS1-11-110AC-03M
Qty: - +

350.010 MS1-10-AC-03M (switch only) MS1-10-AC-03M(SO)
Qty: - +

350.011 MS1-11-AC-03M (switch only) MS1-11-AC-03M(SO)
Qty: - +

350.012 MS1-20-AC-03M (switch only) MS1-20-AC-03M(SO)
Qty: - +

350.013 MS1-21-AC-03M (switch only) MS1-21-AC-03M(SO)
Qty: - +

350.014 MS1-10-110AC-03M (switch only) MS1-10-110AC-03M
Qty: - +

350.015 MS1-10-AC-06M SWITCH AND ACTUATOR MS1-10-AC-06M
Qty: - +

350.050 MS1-10-DC-03M SWITCH AND ACTUATOR MS1-10-DC-03M
Qty: - +

350.051 MS1-11-DC-03M SWITCH AND ACTUATOR MS1-11-DC-03M
Qty: - +

350.052 MS1-20-DC-03M SWITCH AND ACTUATOR MS1-20-DC-03M
Qty: - +

350.053 MS1-21-DC-03M SWITCH AND ACTUATOR MS1-21-DC-03M
Qty: - +

350.054 MS1-20-DC-05M SWITCH AND ACTUATOR MS1-20-DC-05M
Qty: - +

350.055 MS1-21-DC-10M SWITCH AND ACTUATOR MS1-21-DC-10M
Qty: - +

350.060 MS1-10-DC-03M (switch only) MS1-10-DC-03M(SO)
Qty: - +

350.061 MS1-11-DC-03M (switch only) MS1-11-DC-03M(SO)
Qty: - +

350.062 MS1-20-DC-03M (switch only) MS1-20-DC-03M(SO)
Qty: - +

350.063 MS1-21-DC-03M (switch only) MS1-21-DC-03M
Qty: - +

350.099 MS1-ACT (ACTUATOR ONLY) MS1-ACT
Qty: - +

Get Quote

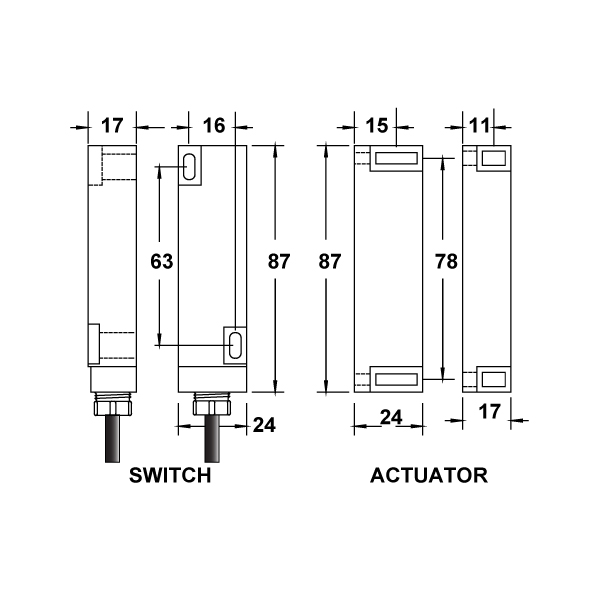

DIMENSIONS (MM)

Dimensions in millimetres

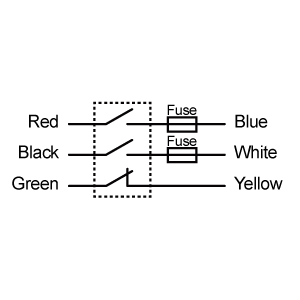

2 Normally Open Contacts + 1 Normally Closed Contact

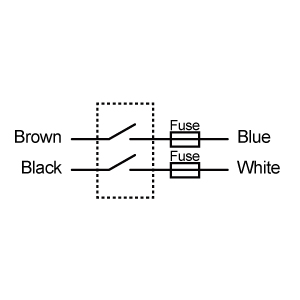

2 Normally Open Contacts

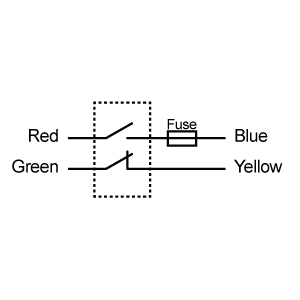

1 Normally Open Contact + 1 Normally Closed Contact

1 Normally Closed Contact

Technical Specifications
Safety Output Up to 2 x NO
Safety Output Rating 230Vac/2Amps or 30Vdc / 1Amp Inductive/Resistive
Auxilliary Output Up to 1 x NC
Auxilliary Output Rating 15W / 10VA
Cable / Connector Pre-wired
Cable Length 3, 6 or 10 metre
Coding None
Input Magnetic
Dimensions of Switch (mm) 87 x 24 x 17mm
Dimensions of Actuator (mm) 87 x 24 x 17mm
Weight na
IP Rating IP67
Construction Red ABS, Resin Filled
Mounting 4 x M4 Security Screws
Environmental Specifications
Operating Temperature -10°C to 55°C
Storage Temperature -20°C to 60°C
Safety Related Data
PL in accordance with EN ISO 13849-1 na
SIL CL in accordance with EN IEC 62061 na
PFHd in accordance with EN IEC 62061 na
PFH na
B10d na
MTTFd na
TM na
DC na
SFF na
File Title File Name Download File
MECHAN MAGNASAFE MS1 INSTALLATION GUIDE 350-400v9-MECHAN-MAGNASAFE-MS1-INSTALLATION-GUIDE.pdf PDF (574 KB)
