CS3

CS3 CS3 CS3

Approvals

CE Approved

•   Electronic safety switch
•   Fully encapsulated, IP67
•   Pre-wired, 5, 10, 15 metre cable (Max 100m)
•   Built in cable strain relief

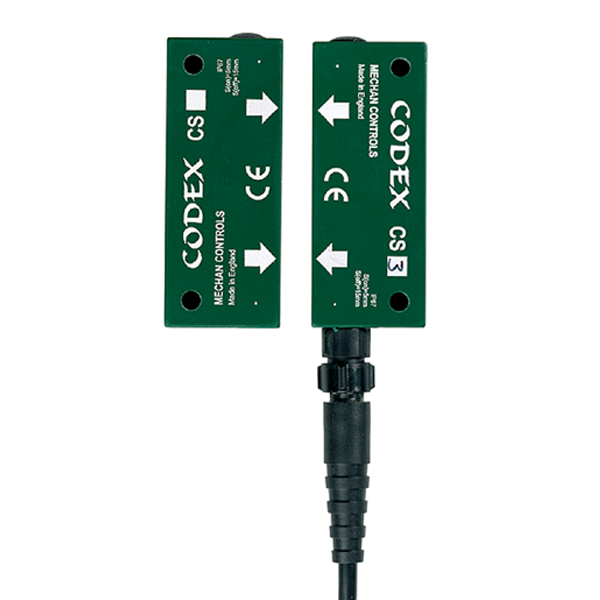

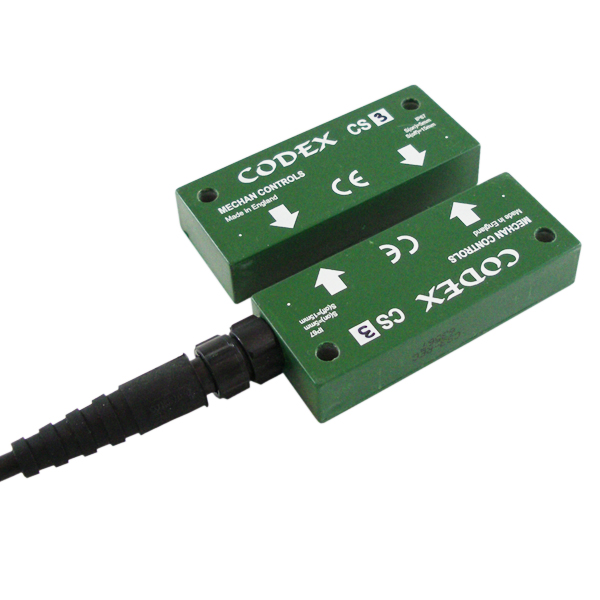

CS3 digital electronic safety switches are part of the CODEX safety system. Fully encapsulated into green ABS housings, with pre-drilled fixing holes directly through the body of the switch for additional strength and a consistent 10mm switching even when mounted on metal frames. The CS3 version has 2-pole connector to enable easy installation and change if required. The CODEX safety switches are easy to fit and offer exceptional physical strength for long term reliability.

Product Code Description Part No. Quote options Added to Basket
322.006 CS3-5M CODEX SAFETY SWITCH CS3-5M
Qty: - +

322.007 CS3-10M CODEX SAFETY SWITCH CS3-10M
Qty: - +

322.008 CS3-15M CODEX SAFETY SWITCH CS3-15M
Qty: - +

322.026 CS3-20M CODEX SAFETY SWITCH CS3-20M
Qty: - +

322.016 CS3-REC-5M CODEX RECEIVER WITH 5M QD CABLE CS3-5M (REC)
Qty: - +

322.017 CS3-REC-10M CODEX RECIEVER WITH 10M QD CABLE CS3-10M (REC)
Qty: - +

322.031 CS3-REC-15M CODEX RECIEVER WITH 15M QD CABLE CS3-15M (REC)
Qty: - +

322.019 CS3-REC-20M CODEX RECEIVER WITH 20M QD CABLE CS3-REC-20M
Qty: - +

322.018 CS3-REC CODEX RECIEVER ONLY - NO CABLE CS3-REC
Qty: - +

322.028 CS3 REC & ACT (NO CABLE) CS3-REC/ACT
Qty: - +

322.090 CODEX CS3 CABLE - 5M CS3-CABLE-5M
Qty: - +

322.091 CODEX CS3 CABLE 10M CS3-CABLE-10M
Qty: - +

322.092 CODEX CS3 CABLE 15M CS3-CABLE-15M
Qty: - +

322.093 CODEX CS3 CABLE 20M CS3-CABLE-20M
Qty: - +

322.099 CS3-ACT CODEX ACTUATOR ONLY CS3-ACT
Qty: - +

Get Quote

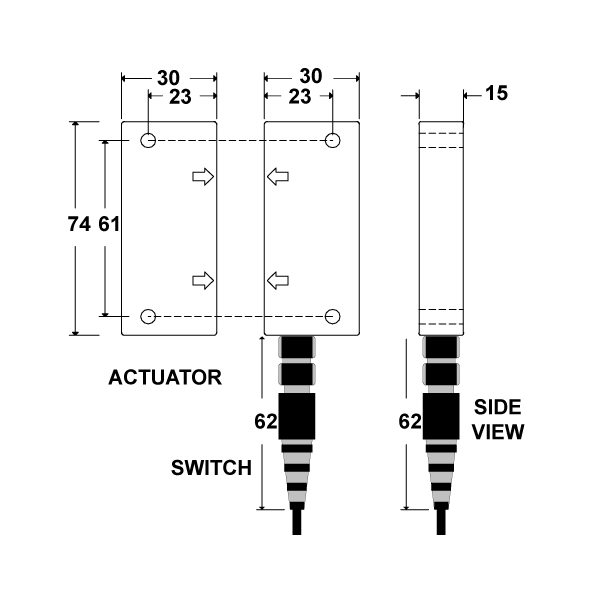

DIMENSIONS (MM)

Dimensions in millimetres

Connection Drawing 1

Technical Specifications
Power Consumption NA
Cable / Connector DEUTSCH 2 PIN QUICK DISCONNECT
Cable Length 5, 10 , 15 OR 20 METER
Coding Digital Electronic, Generic code
Dimensions of Switch (mm) 74 x 30 x 15mm
Dimensions of Actuator (mm) 74 x 30 x 15mm
Weight na
IP Rating IP67
Construction Green ABS, Resin Filled
Mounting 4 x M4
Environmental Specifications
Operating Temperature 0°C to 45°C
Storage Temperature -20°C to 50°C
Safety Related Data
PL in accordance with EN ISO 13849-1 CAT 4
SIL CL in accordance with EN IEC 62061
PFHd in accordance with EN IEC 62061
PFH
B10d
MTTFd
TM
DC
SFF
Notes

As part of a CODEX system

File Title File Name Download File
MECHAN CODEX INSTALLATION GUIDE 320-400V7-MECHAN-CODEX-INSTALLATION-GUIDE.pdf PDF (526 KB)
