Codex

Approvals

CE Approved

•   CAT 4 SIL 3 PL-E safety system
•   Modular control unit
•   Digital electronic safety switches
•   Monitor up to 30 switches
•   Safety switches with unique code option (EN 14119)

CODEX is a multi-gate safety switch monitoring system. Easy to install and expand, it can be used to monitor up to 30 gates with one control unit.
The fully electronic safety switches connect to the control unit and when power up are continuously monitored for faults in the switch or the connecting cable. Each switch has an LED and volt free contact indicator output at the control unit ensuring easy identification of open gates or faults.

To be sold for replacement parts only. For new systems, please refer to the F-Series.

Fit & Forget - Safety from Mechan

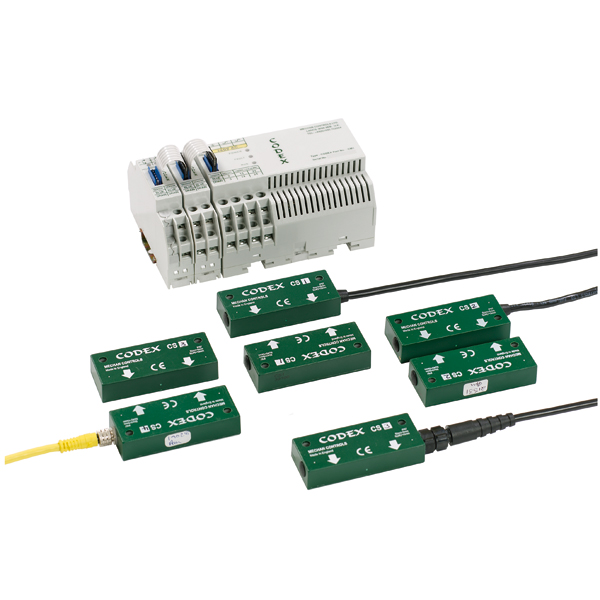

CODEX, is a CAT 4 safety system suitable for use in most machine guarding applications where guard locking is not required. Mechan's unique modular design makes it easy to install and expand a safety system that exactly meets our needs.

The CODEX safety control module is made up from an CM1 Safety Control Module and the required number of CX2 or CX1 extender modules.

The CM1 is the main module containing the power supply input, re-set circuit, control relays with dual channel output, and the input and indication outputs for one Mechan safety switch.

The Extender Modules clip onto the same DIN rail as the CM1 and connect to the adjacent unit via the attached strap. Any combination of Extender Module can be used to suit the application. Modules available include :

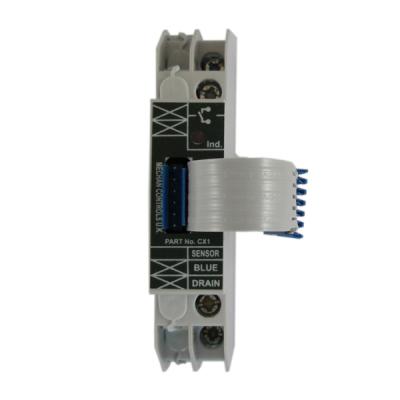

  • CX1 has the input connections and indication outputs for one safety switch.

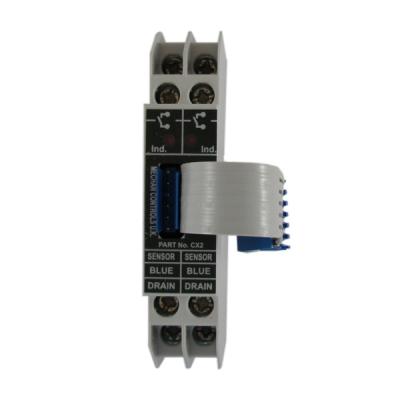

  • CX2 has the input connections and indication outputs for two safety switches
  • CLI has one safety switch input with a Limited Inch Override option
  • C2HO has one safety switch input with a 2 Hand Override Option
  • ESM has inputs for a Dual Channel Emergency Stop Button


The flexible, DIN rail mounting safety control unit can monitor up to 30 Mechan Safety Switches or Emergency Stop Buttons in one system. Providing dual safety output at the control module along with LED and volt free contacts from each safety switch.

The electronic non-contact safety switches connect to the control unit inputs using a screened cable encapsulated into the switches. Using digital signals to communicate with the control unit ensuring both switch, cable and input are continuously monitored.

The unique CODE CM9 and , CX9 controllers are matched to a specific safety switch, ensuring that only the correct actuator can be used to operate the switch input. The CS9 version of the switches can be used as ‘electronic keys’ for access / control of specific parts of the controls system / machinery.




CONTROL MODULES - Standardcodex_cm1_electronic_safety_control_unit2.jpg

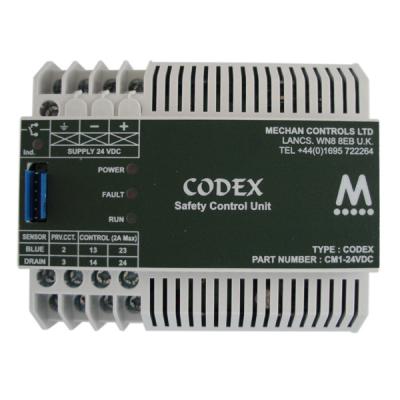

  • 24vDC / 110vAC or 230vAC version CM1
  • Dual channel PGC relay output
  • Manual or Monitored Manual reset
  • 35mm DIN Rail mounting
  • LED Status indication on each module
  • 17.5mm wide Extender modules
  •  Modules Available
  • = CM1 Main control module
  • = CX1 or CX2 Safety Switch Inputs

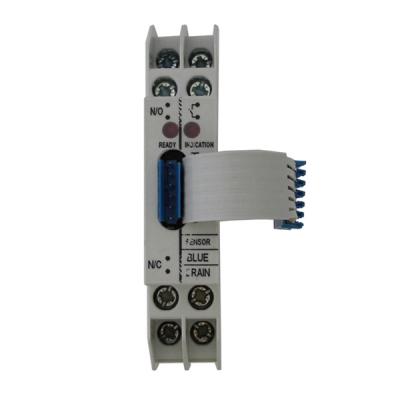

  • = CLI-2 CLI-4 CLI-5 Safety Switch with Limited Inch option

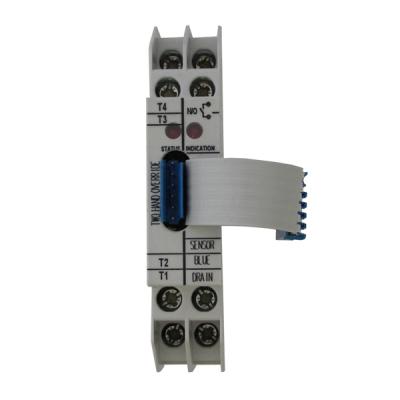

  • = C2HO Safety Switch with Two Hand Override option
  • = ESM Dual Channel Emergency Stop Button InpuT






 SAFETY SWITCHEScodex_cs1_electronic_safety_switch.jpg

  • Digital  electronic safety switches
  • Fully encapsulated, can be used in high pressure hose cleaning environments
  • Easy to install and tolerant to misalignment and guard wear
  • Robust construction / fixing gives long operational life
  • Switches Available

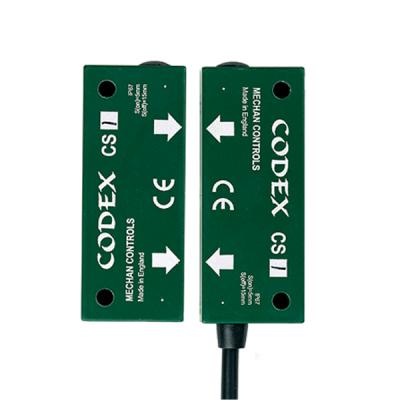

  • = CS1 - In line fixing holes

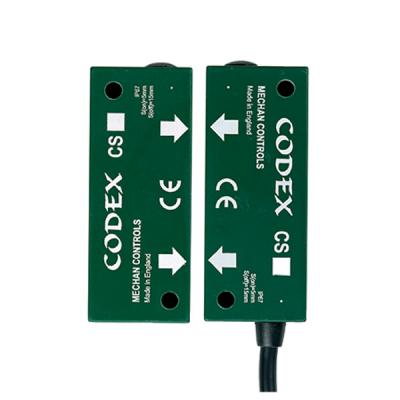

  • = CS2 – Off set fixing holes

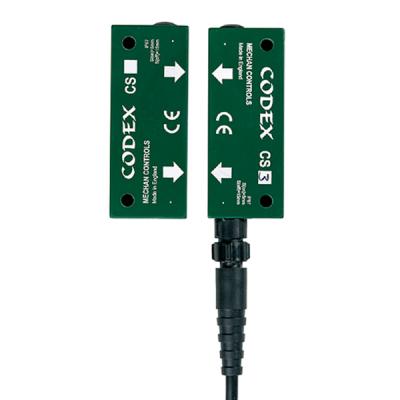

  • = CS3 – In line fixing holes with quick disconnect option








SYSTEM INSTALLATION
