MPX

Approvals

CE Approved

   High performance safety system
•   DIN Rail or chassis mounting
•   Fully electronic safety switches

•   Monitor up to 8 electronic safety switches
•   Unique code option  (EN 14119)

Mechan safety control units have been monitoring 1000's of Mechan electronic safety switches of over 40 years. Proving to be safe, reliable and easy to install, the MPX range is a cost effective way to continuously monitor all your safety switches.

Available in chassis mount or 35mm DIN rail mount each control unit has dual safety outputs, and indication from each switch. Works with all current switches in the F-Series safety switch range.

Fit & Forget - Safety from Mechan

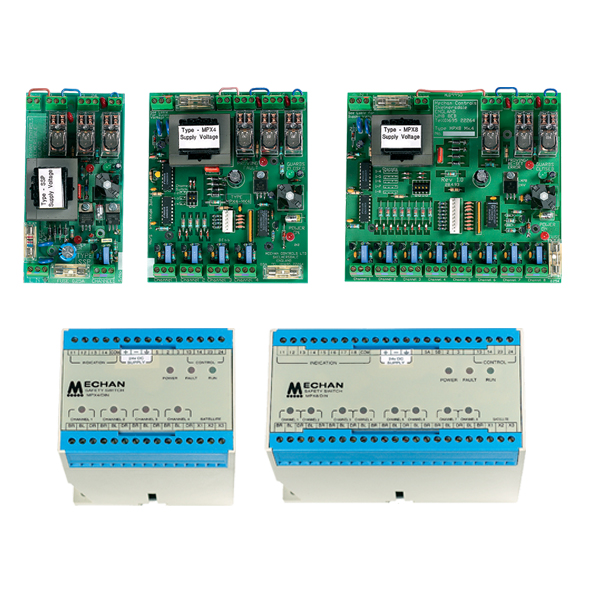

Mechan Safety Control units have been in use for over 30 years. The MPX range is a cost effective, simple to use, safety control unit for monitoring the
Mechan electronic safety switches. The Mechan safety control units are available mounted on a chassis plate or complete in a steel or stainless steel enclosure.
Each control unit has dual relay safety outputs, monitoring circuit, on-board LED indication and is available in 24Vdc, 24Vac, 110Vac or 230Vac.

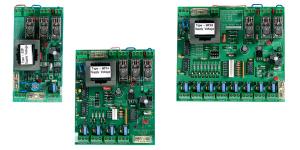

mpx cp



The SSP is a safety control unit for monitoring one safety switch.

The MPX4 monitors 2 - 4 Mechan electronic safety switches
The MPX8 monitors 4 - 8 Mechan electronic safety switches
Additional indicator boards are available for the SSP,MPX4 and MPX8 safety control units giving remote LED,LAMP, or Volt Free contact indication.

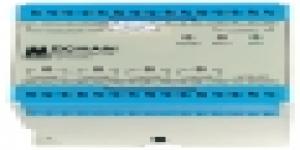

The MPX/DIN range of safety control units were developed to make installation of the Mechan electronic safety system easier. The MPX4/DIN and the MPX8/DINhave all the features of the standard MPX range inside a clip–on to 35mm DIN rail housing. The MPX/DIN range of safety control units are designed to monitor Mechan electronic safety switches. Each control unit has dual relay safety outputs, monitoring circuit, on-board system LED indication,Volt Free and LED guard status indication and is available in 24Vdc, 24Vac,110Vac or 230Vac options.

mpx din



The MPX4/DIN and the MPX8/DIN are switch selectable to monitor the number of guards required.
The MPX4/DIN monitors 1 - 4 Mechan electronic safety switches
The MPX8/DIN monitors 5 - 8 Mechan electronic safety switches

File Title File Name Download File
MECHAN MPX4/DIN INSTALLATION GUIDE 301-400V3-MECHAN-MPX4-DIN-INSTALLATION-GUIDE.pdf PDF (0)
MECHAN MPX8/DIN INSTALLATION GUIDE 302-400V3-MECHAN-MPX8-DIN-INSTALLATION-GUIDE.pdf PDF (0)
MECHAN MPX v4 INSTALLATION GUIDE 303-400V3-MECHAN-MPX-v4-INSTALLATION-GUIDE.pdf PDF (0)

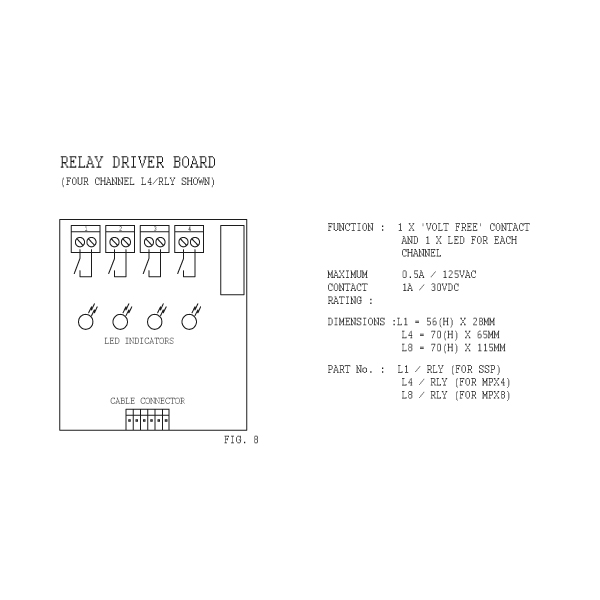

IND RLY IND-RLY.jpg JPG (0)
Product Type Product Code Description Part No.  Quote options Added to basket

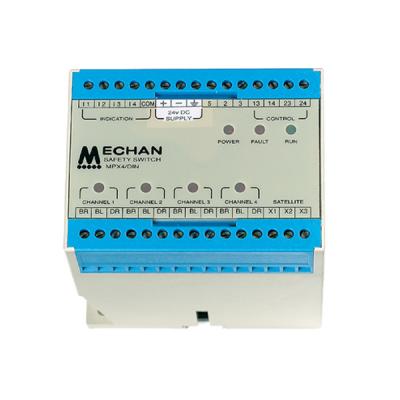

mpx mpx4din electronic safety control unit MPX MPX4DIN
  301.000

MPX4/DIN 24VDC SAFETY CONTROL UNIT

MPX4/DIN 24VDC
Qty: - +

  301.001 MPX4/DIN 24VAC SAFETY CONTROL UNIT MPX4/DIN 24VAC
Qty: - +

  301.002 MPX4/DIN 110VAC SAFETY CONTROL UNIT MPX4/DIN 110VAC
Qty: - +

  301.003 MPX4/DIN 240VAC SAFETY CONTROL UNIT MPX4/DIN 240VAC
Qty: - +

Get Quote

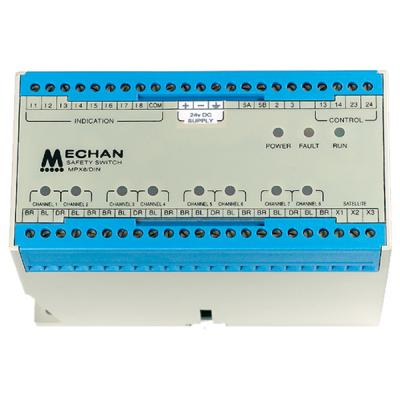

mpx_mpx8din_electronic_safety_control_unit.jpg MPX MPX8DIN
  302.000

MPX8/DIN 24VDC SAFETY CONTROL UNIT

MPX8/DIN 24VDC
Qty: - +

  302.001 MPX8/DIN 24VAC SAFETY CONTROL UNIT MPX8/DIN 24VAC
Qty: - +

  302.002 MPX8/DIN 110VAC SAFETY CONTROL UNIT MPX8/DIN 110VAC
Qty: - +

  302.003 MPX8/DIN 240VAC SAFETY CONTROL UNIT MPX8/DIN 240VAC
Qty: - +

Get Quote

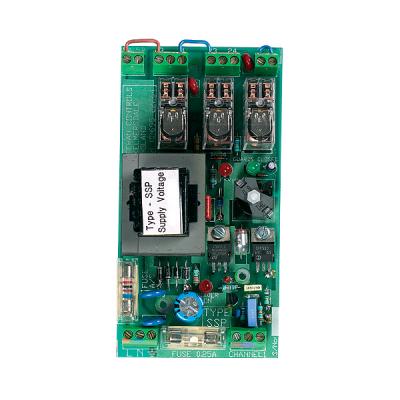

mpx ssp electronic safety control unit MPX SSP
  305.000

SSP 24VDC SAFETY CONTROL UNIT CHASSIS MOUNTED

SSP 24VDC
Qty: - +

  305.001 SSP 24VAC SAFETY CONTROL UNIT CHASSIS MOUNTED SSP 24VAC
Qty: - +

  305.002 SSP 110VAC SAFETY CONTROL UNIT CHASSIS MOUNTED SSP 110VAC
Qty: - +

  305.003 SSP 240VAC SAFETY CONTROL UNIT CHASSIS MOUNTED SSP 240VAC
Qty: - +

Get Quote

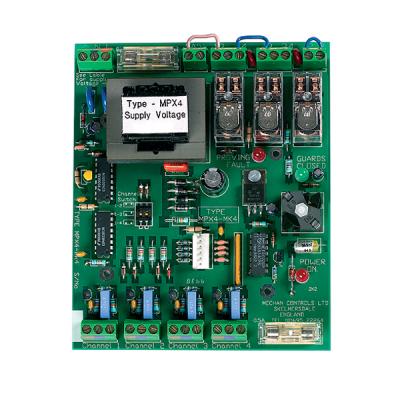

mpx_mpx4_electronic_safety_control_unit.jpg MPX MPX4
  303.000

MPX4 24VDC SAFETY CONTROL UNIT CHASSIS MOUNTED

MPX4 24VDC
Qty: - +

  303.001 MPX4 24VAC SAFETY CONTROL UNIT CHASSIS MOUNTED MPX4 24VAC
Qty: - +

  303.002 MPX4 110 VAC SAFETY CONTROL UNIT CHASSIS MOUNTED MPX4 110VAC
Qty: - +

  303.003 MPX4 240VAC SAFETY CONTROL UNIT CHASSIS MOUNTED MPX4 240VAC
Qty: - +

Get Quote

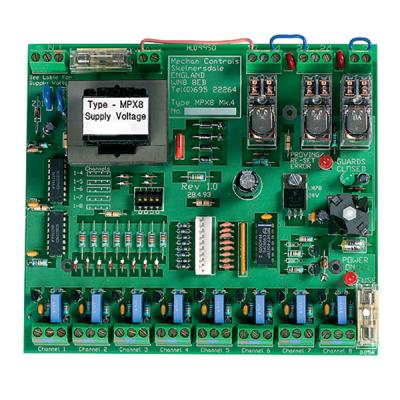

mpx mpx8 electronic safety control unit MPX MPX8
  304.000

MPX8 24VDC SAFETY CONTROL UNIT CHASSIS MOUNTED

MPX8 24VDC
Qty: - +

  304.001 MPX8 24VAC SAFETY CONTROL UNIT CHASSIS MOUNTED MPX8 24VAC
Qty: - +

  304.002 MPX8 110VAC SAFETY CONTROL UNIT CHASSIS MOUNTED MPX8 110VAC
Qty: - +

  304.003 MPX8 240VAC SAFETY CONTROL UNIT CHASSIS MOUNTED MPX8 240VAC
Qty: - +

Get Quote

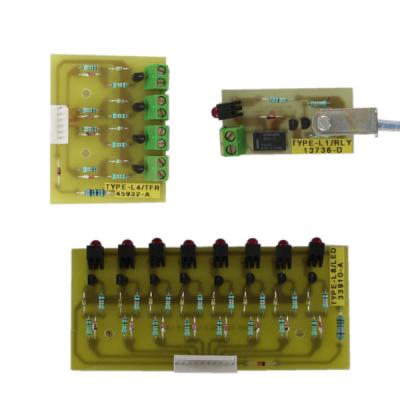

mpx indicator MPX INDICATOR
  313.000

L1/TFR INDICATOR BOARD

L1/TFR
Qty: - +

  313.001 L1/LED INDICATOR BOARD L1/LED
Qty: - +

  313.002 L1/LED/R INDICATOR BOARD L1/LED/R
Qty: - +

  313.003 L1/RLY INDICATOR BOARD L1/RLY
Qty: - +

  313.004 L4/TFR INDICATOR BOARD L4/TFR
Qty: - +

  313.005 L4/LED INDICATOR BOARD L4/LED
Qty: - +

  313.006 L4/LED/R INDICATOR BOARD L4/LED/R
Qty: - +

  313.007 L4/RLY INDICATOR BOARD L4/RLY
Qty: - +

  313.008 L8/TFR INDICATOR BOARD L8/TFR
Qty: - +

  313.009 L8/LED INDICATOR BOARD L8/LED
Qty: - +

  313.01 L8/LED/R INDICATOR BOARD L8/LED/R
Qty: - +

  313.011 L8/RLY INDICATOR BOARD L8/RLY
Qty: - +

Get Quote
