Approvals
Housing:
Red, Glass Reinforced Polymer
Contacts:
2 NO + 1NC (with door open)
Mechanical Holding Force:
2000N +
Coding:
Uniquely Coded, RFID
Indication:
RGB LEDs (Advanced Diagnostics)
Ingress Protection Rating:
IP67

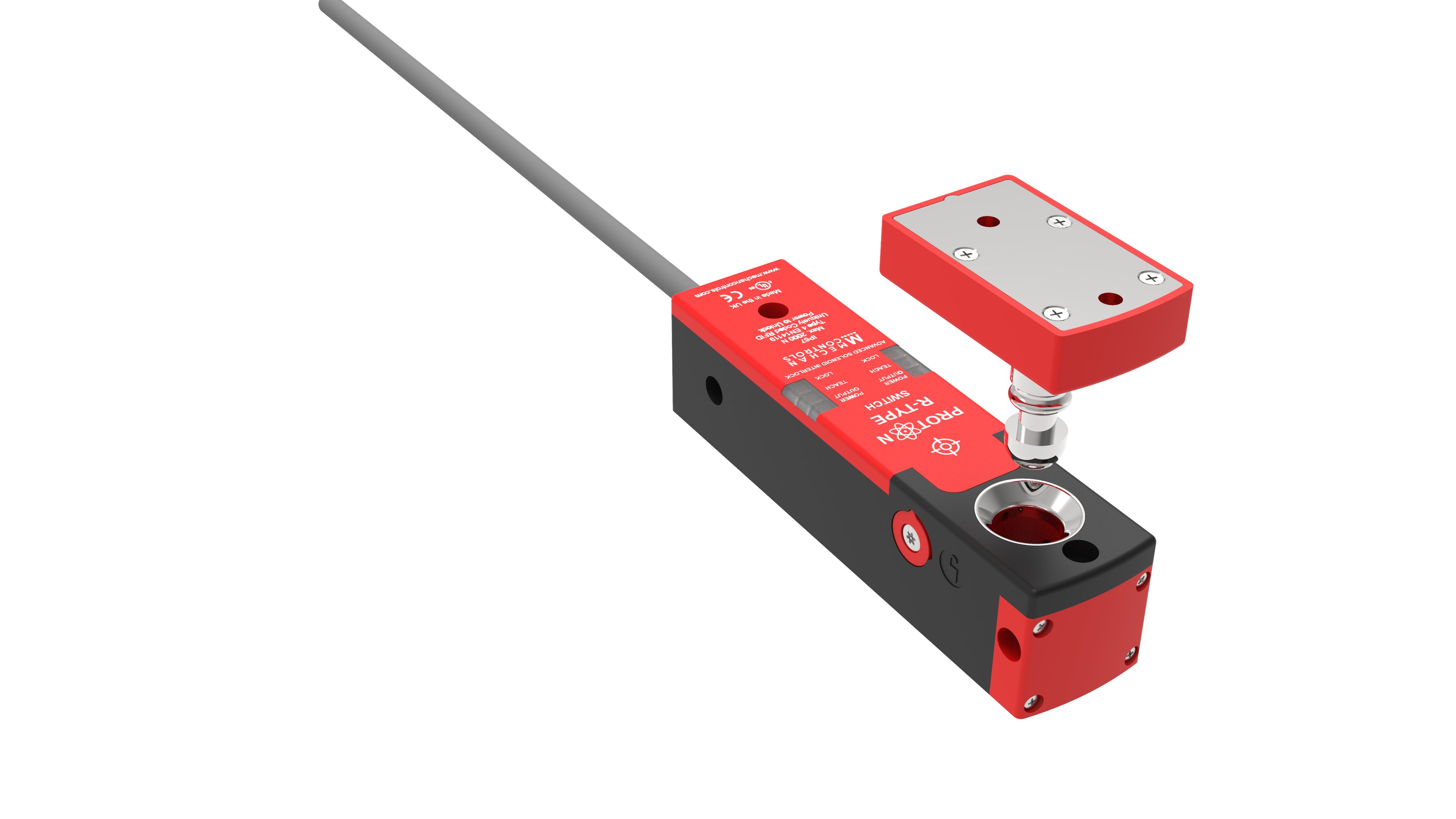

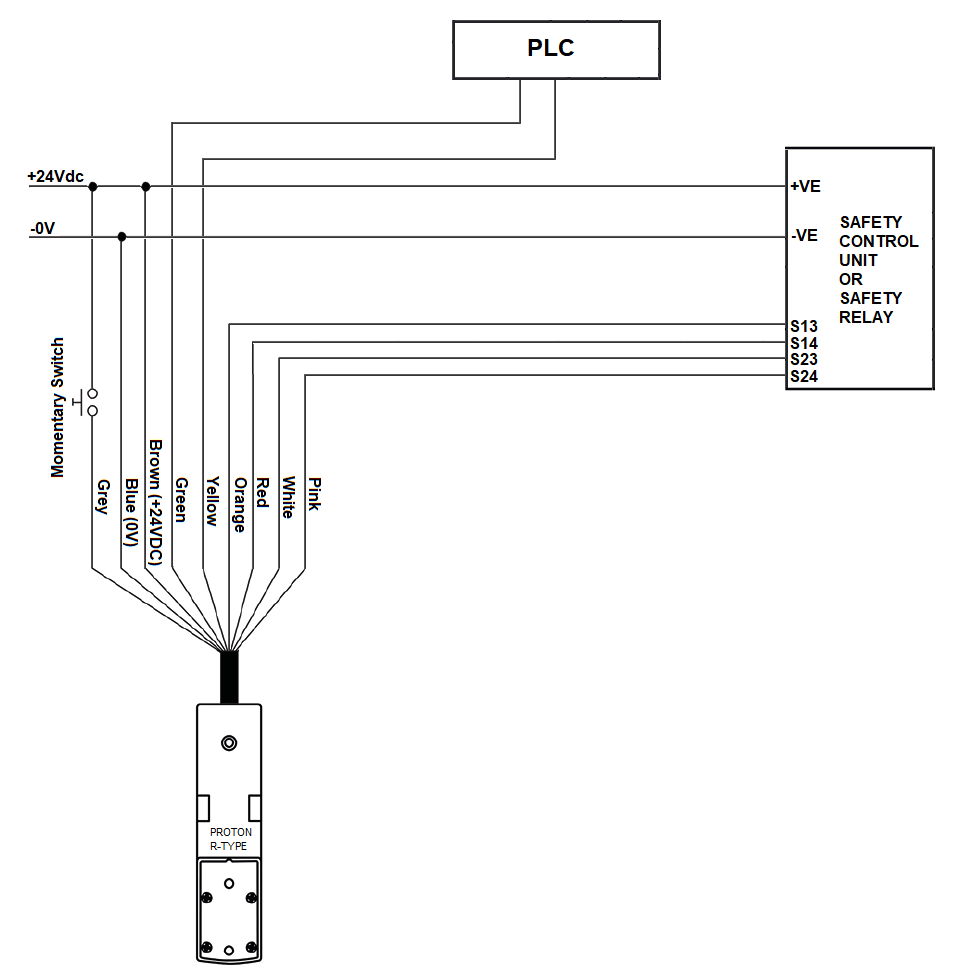

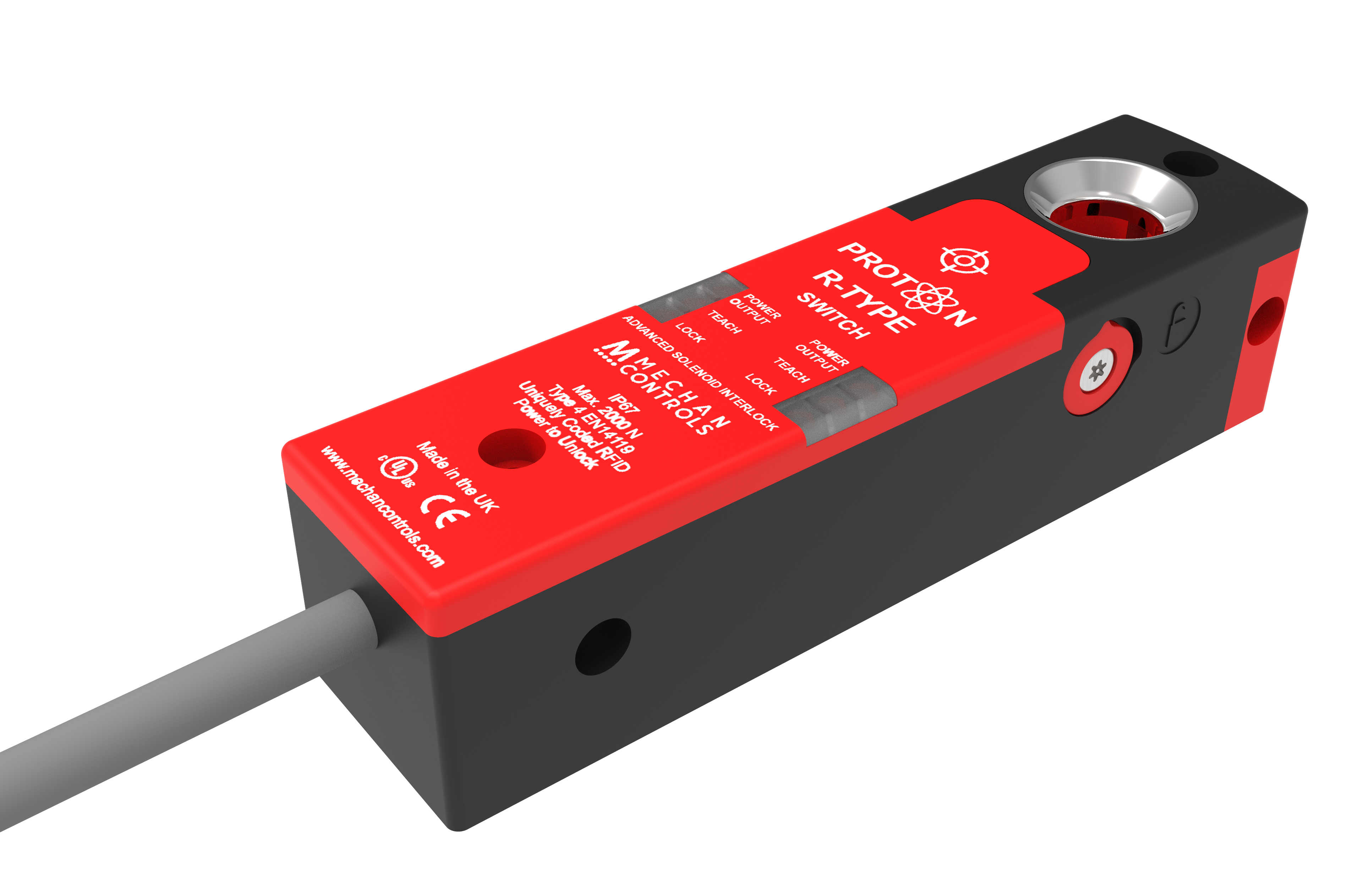

Proton is a slim line and ultra-strong, advanced solenoid interlock with high coded RFID. The volt free contact output technology means each switch includes 2 normally open and 1 normally closed outputs that are designed to be connected to a Mechan Safety Relay (SRL-1 or EM1 & ESM) or any Safety PLC.
The Proton also comes with momentary push button support, that can be wired in automatic and manual reset mode.
The slim line body has been designed to mount directly onto aluminium extrusion and features 3 mounting positions, ideal for both hinged and sliding door applications. The self-aligning actuator ensures a trouble free operating life, even on misaligned guards.
For technical details, please download the operation manual included on the download tab below.
Download Step Drawing Proton-Switch.STEP Download Step Drawing Proton-Actuator.STEP
| Technical Specifications | |
|---|---|
| Supply Voltage Options | 24VDC (+/- 15%) |
| Safety Output | Up to 2 x NO |
| Safety Output Rating | 24Vdc / 500mA |
| Auxilliary Output | Up to 1 x NC |
| Auxilliary Output Rating | 24Vdc / 500mA |
| Cable / Connector | Pre-wired / Quick disconnect |
| Cable Length | 3, 6 or 10 metre |
| Coding | RFID, UNIQUELY CODED |
| Reset Options | At Safety Control Unit |
| Indication | 6 x RGB LEDs |

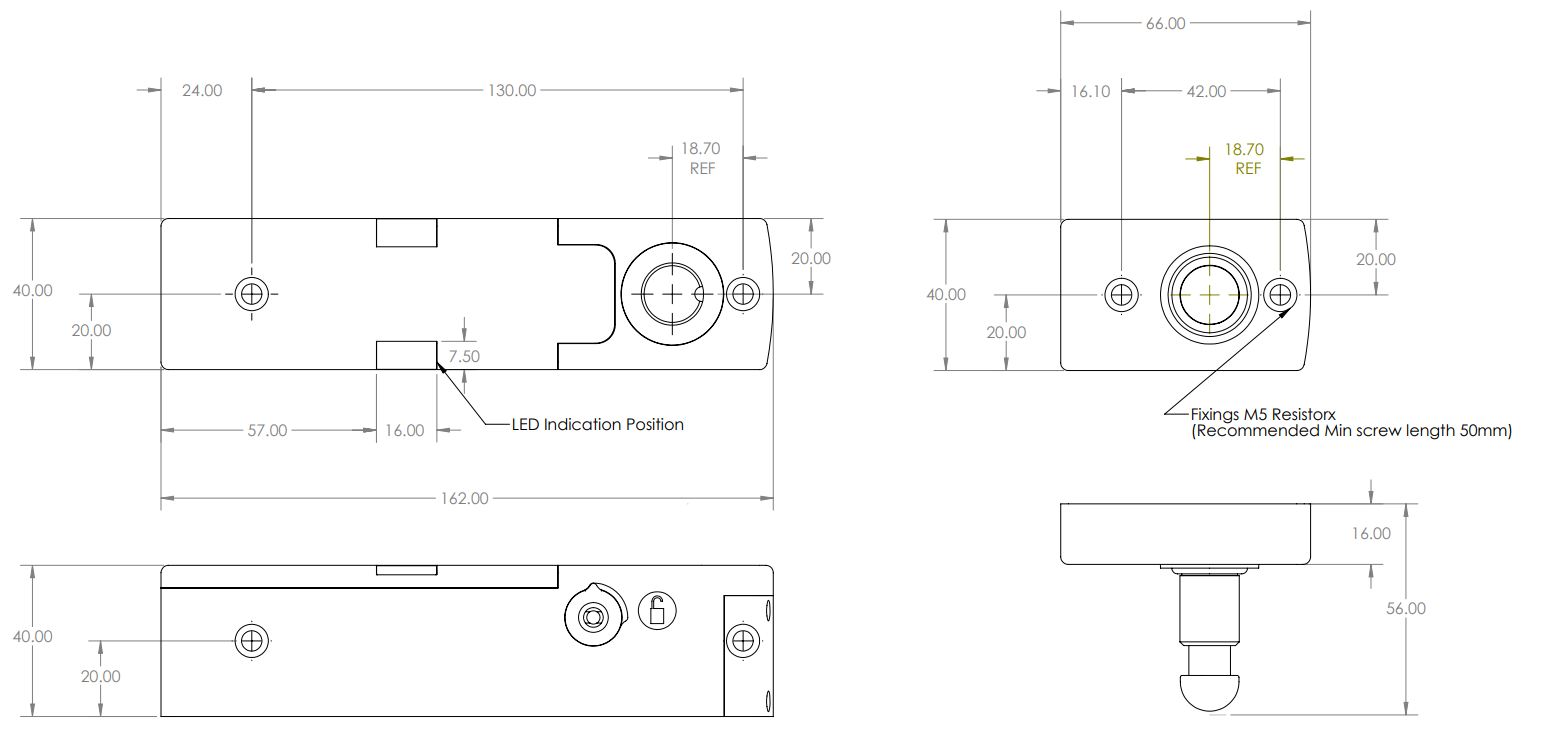

| Dimensions of Switch (mm) | 162 x 40 x 40 |
| Dimensions of Actuator (mm) | 66 x 40 x 16 |
| Weight | |
| IP Rating | IP67 |
| Construction | Red ABS - Glass Fibre Reinforced & Black ABS |
| Mounting | 4 x M5 Security Screws |
| Environmental Specifications | |
| Operating Temperature | -10ºC to +60ºC |
| Storage Temperature | -10ºC to +60ºC |
| Safety Related Data | |
| PL in accordance with EN ISO 13849-1 | E |
| SIL CL in accordance with EN IEC 62061 | 3 |
| PFHd in accordance with EN IEC 62061 | 1.12 x 10-9 |
| PFH | 1.1 x 15-9 |
| B10d | 10,000,000 |
| MTTFd | Hight > 385 Years (Based on usage rate of 360 Days |
| TM | > 100 Years |
| DC | 99% |
| SFF | 99.5% |
| File Title | File Name | Download File |
|---|---|---|
| 317 400 Proton R Type Installation Manual Issue 1 | 317-400-Proton-R-Type-Installation-Manual-Issue-1.pdf | PDF (2.2 MB) |
| Proton Switch | Proton-Switch.STEP | STEP (7 MB) |
| Proton Actuator | Proton-Actuator.STEP | STEP (697 KB) |
