C2H0

C2H0 C2H0 C2H0

Approvals

CE Approved

•   One Mechan safety switch input
•   Monitored 2 button control input
•   LED and volt free contact indication
•   35mm DIN rail mounting
•   17.5 mm wide

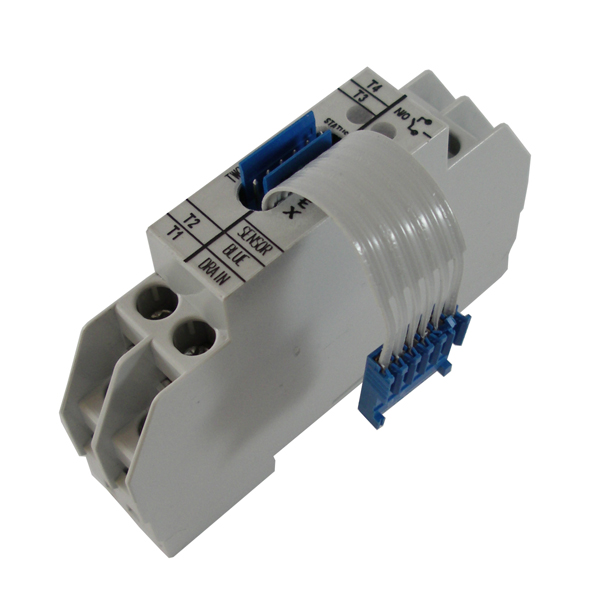

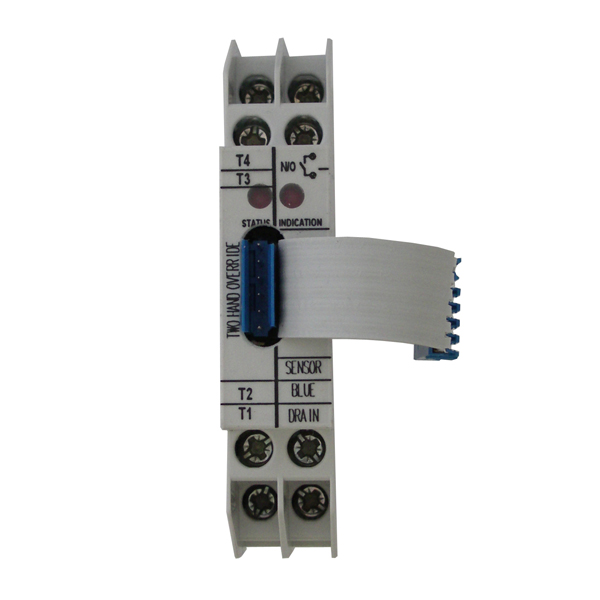

The C2HO extender module provides the option of using a 2 button control station (not supplied) to override one Mechan safety switch in a CODEX safety system. Simple connection via a built in 6-way strap to the adjacent CODEX module, the C2HO has the input for 1 Mechan safety switch and  connections for the 2 button override station. When fitted correctly the buttons can be used to override the Mechan switch connected to the C2HO. Both buttons need to be pressed to  override the connected Mechan switch. Releasing either button re-activates the switch.

Product Code Description Part No. Quote options Added to Basket
325.000 C2HO CODEX 2 HAND OVERIDE C2HO
Qty: - +

Get Quote

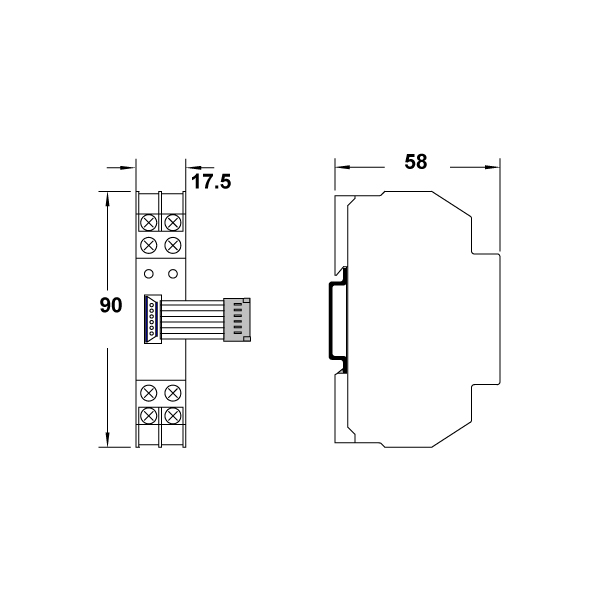

DIMENSIONS (MM)

Dimensions in millimetres

Technical Specifications
Coding Digital Electronic, Generic code
Input 1 Codex Safety Switch + 2 Hand Override
Indication Guard Status LED and Volt Free Contact
Dimensions of Control Unit (mm) 17.5 x 90 x 58mm
Weight na
IP Rating Housing IP40, Terminals IP20
Construction Grey PC-GF
Mounting 35mm DIN Rail
Environmental Specifications
Operating Temperature 0°C to 45°C
Storage Temperature -20°C to 50°C
Safety Related Data
PL in accordance with EN ISO 13849-1 CAT 4
SIL CL in accordance with EN IEC 62061
PFHd in accordance with EN IEC 62061
PFH
B10d
MTTFd
TM
DC
SFF
Notes

As part of a CODEX system
