S-Type - RFID Safety Switches

Approvals

CE Approved

• Tamper-proof, RFID Safety Switching (Single Code)
• 7mm Operating Distance
• Guard Status Indication
Standalone, Volt-Free Contact Outputs
• SSS / SS-R (3Amp Safety Output Rating)

• Quick Disconnect Option (M12)

The S-Type range are RFID, non-contact safety switches with volt free contact outputs. The unique RFID technology features a single master code that offers protection against manipulation, interference and defeat. The electronic design provides precision switching and on-switch indication for reliable operation.

The S-Type safety switches are available in three sizes with up to 2NO safety contacts and 1NC auxiliary contact.

Fit & Forget - Safety from Mechan




s_type_ssr_electronic_safety_switch2.jpgThe Mechan S-TYPE switches are frequency operated electronically operated safety switches. Using Mechan’s unique frequency operated switching system the S-Type safety switches provide a more secure non-contact safety switch. With precise switching and indication on the switch reliable operation is assured along with easy operator identification of guard status.



The S-Type safety switches can approach each other from most directions. When closed the targets printed on the front face of the switches must be aligned. (Large target to large target and small target to small target). When the power is on and the switch and actuator are apart the Normally Open contact(s) will be open and the Normally Closed contact will be closed. When the actuator is brought within the specified switching distance the Normally Open contact(s) will close and the Normally Closed contact will open.



The S-Type safety switches are available in 3 sizes, the SS-R, SS-C and SSS. And provide a variety of output contacts to suit different applications.



SYSTEM INSTALLATION





File Title File Name Download File
360 400 Iss15 MECHAN S Type Installation Guide 360-400-Iss15-MECHAN-S-Type-Installation-Guide.pdf PDF (0)
360 400 Iss14 MECHAN S Type Installation Guide 360-400-Iss14-MECHAN-S-Type-Installation-Guide.pdf PDF (0)
SSC-PLASTIC-SWITCH-PRE-WIRED-3D SSC-PLASTIC-SWITCH-PRE-WIRED.STEP STEP (0)
SSC-PLASTIC-ACTUATOR-3D SSC-PLASTIC-ACTUATOR.STEP STEP (0)
SSR-PLASTIC-SWITCH-PRE-WIRED-3D SSR-PLASTIC-SWITCH-PRE-WIRED.STEP STEP (0)
SSR-PLASTIC-ACTUATOR-3D SSR-PLASTIC-ACTUATOR.STEP STEP (0)
SSS-PLASTIC-SWITCH-PRE-WIRED-3D SSS-PLASTIC-SWITCH-PRE-WIRED.STEP STEP (0)
SSS-PLASTIC-ACTUATOR-3D SSS-PLASTIC-ACTUATOR.STEP STEP (0)
Product Type Product Code Description Part No.  Quote options Added to basket

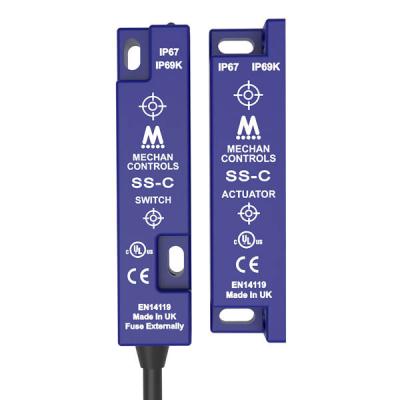

SS C FRONT V2 S-Type SSC
  363.002

SS-C / Plastic / 1NO + 1NC / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

SS-C-11-03M
Qty: - +

  363.000

SS-C / Plastic / 1NO + 1NC / 24VDC / 05-Metre Pre-Wired (Switch and Actuator)

SS-C-11-05M
Qty: - +

  363.001

SS-C / Plastic / 1NO + 1NC / 24VDC / 10-Metre Pre-Wired (Switch and Actuator)

SS-C-11-10M
Qty: - +

  363.005

SS-C / Plastic / 2NO / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

SS-C-20-03M
Qty: - +

  363.098

SS-C-SP-ACT ACTUATOR

SS-C-SP-ACT
Qty: - +

  363.099

SS-C-ACT (ACTUATOR ONLY)

SS-C-ACT
Qty: - +

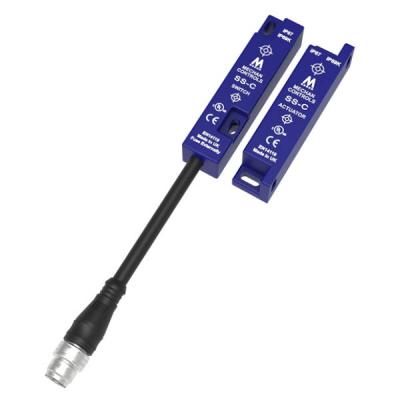

SS C LQD V2 S-Type SSCLQD
  363.003

SS-C / Plastic / 1NO / 24VDC / 8-Pole M12 (Switch and Actuator) - No Cable

SS-C-10-QD
Qty: - +

  363.004

SS-C / Plastic / 2NO / 24VDC / 8-Pole M12 (Switch and Actuator) - No Cable

SS-C-20-LQD
Qty: - +

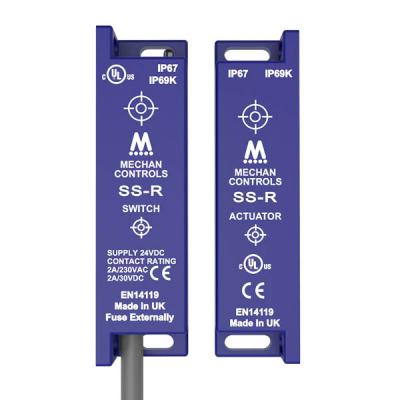

SSR FRONT V2 S-Type SSR
  362.000

SS-R / Plastic / 2NO + 1NC / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

SS-R-21-03M
Qty: - +

  362.004

SS-R / Plastic / 2NO + 1NC / 24VDC / 05-Metre Pre-Wired (Switch and Actuator)

SS-R-21-05M
Qty: - +

  362.005

SS-R / Plastic / 2NO + 1NC / 24VDC / 06-Metre Pre-Wired (Switch and Actuator)

SS-R-21-06M
Qty: - +

  362.001

SS-R / Plastic / 2NO + 1NC / 24VDC / 10-Metre Pre-Wired (Switch and Actuator)

SS-R-21-10M
Qty: - +

  362.006

SS-R / Plastic / 2NO + 1NC / 24VDC / 15-Metre Pre-Wired (Switch and Actuator)

SS-R-21-15M
Qty: - +

  362.002

SS-R-21-03M (SWITCH ONLY)

SS-R-21-03M SO
Qty: - +

  362.003

SS-R-21-10M (SWITCH ONLY)

SS-R-21-10M SO
Qty: - +

  362.099

SS-R-ACT (ACTUATOR ONLY)

SS-R-ACT
Qty: - +

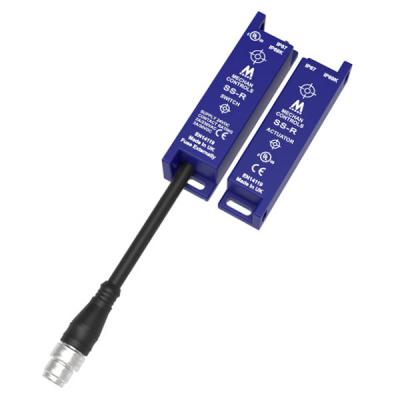

SSR LQD V2 S-Type SSRLQD
  362.007

SS-R / Plastic / 2NO +1NC / 24VDC / 8-Pole M12 (Switch and Actuator) - No Cable

SS-R-21-LQD
Qty: - +

  362.008

SS-R / Plastic / 2NO +1NC / 24VDC / 8-Pole M12 (Switch and Actuator) - 05M Cable

SS-R-21-LQD-05M
Qty: - +

  362.009

SS-R / Plastic / 2NO +1NC / 24VDC / 8-Pole M12 (Switch and Actuator) - 10M Cable

SS-R-21-LQD-10M
Qty: - +

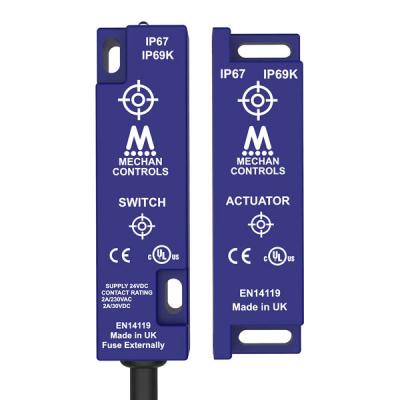

SSS FRONT V2 S-Type SSS
  360.001

SSS / Plastic / 1NO + 1NC / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

SSS-11-03M
Qty: - +

  360.008

SSS / Plastic / 1NO + 1NC / 24VDC / 06-Metre Pre-Wired (Switch and Actuator)

SSS-11-06M
Qty: - +

  360.007

SSS / Plastic / 1NO + 1NC / 24VDC / 10-Metre Pre-Wired (Switch and Actuator)

SSS-11-10M
Qty: - +

  360.000

SSS / Plastic / 2NO / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

SSS-20-03M
Qty: - +

  360.010

SSS / Plastic / 2NO / 24VDC / 05-Metre Pre-Wired (Switch and Actuator)

SSS-20-05M
Qty: - +

  360.011

SSS / Plastic / 2NO / 24VDC / 06-Metre Pre-Wired (Switch and Actuator)

SSS-20-06M
Qty: - +

  360.009

SSS / Plastic / 2NO / 24VDC / 10-Metre Pre-Wired (Switch and Actuator)

SSS-20-10M
Qty: - +

  360.099

SSS-ACT (ACTUATOR ONLY)

SSS-ACT
Qty: - +

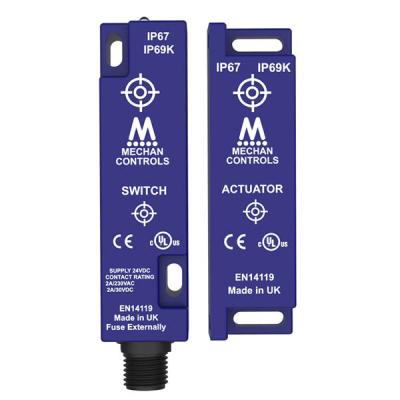

SSS QD V2 S-Type SSSQD
  360.002

SSS / Plastic / 2NO / 24VDC / 6-Pole M12 (Switch and Actuator) - No Cable

SSS-20-DC-QD
Qty: - +

  360.003

SSS / Plastic / 1NO + 1NC / 24VDC / 6-Pole M12 (Switch and Actuator) - No Cable

SSS-11-DC-QD
Qty: - +

  360.005

SSS / Plastic / 2NO / 24VDC / 6-Pole M12 (Switch and Actuator) - 05M Cable

SSS-20-QD-05M
Qty: - +

  360.006

SSS / Plastic / 1NO + 1NC / 24VDC / 6-Pole M12 (Switch and Actuator) - 05M Cable

SSS-11-QD-05M
Qty: - +
