FX1

FX1 FX1 FX1 FX1

Approvals

CE Approved

•   Single gate extender module
•   LED and volt free contact indication
•   35mm DIN rail mounting
•   17.5 mm wide


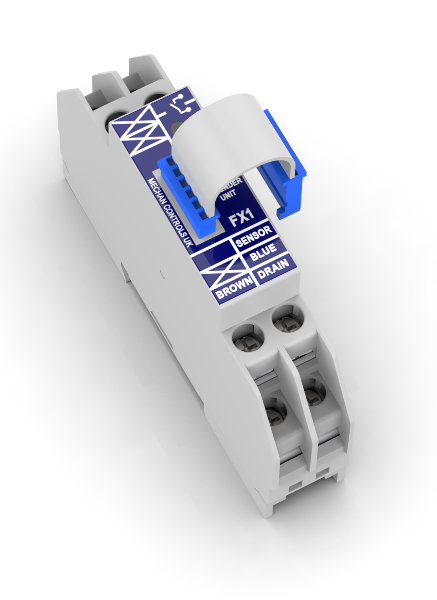

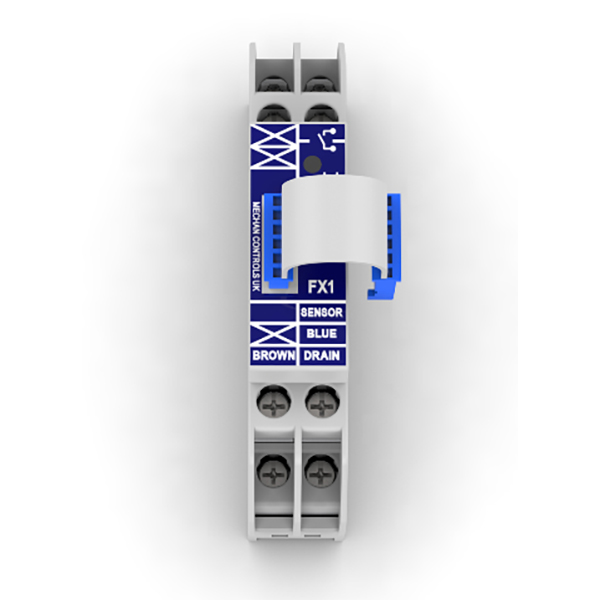

The FX1 extender module adds one safety switch input to a F-Series safety system. Connects via a built in 6-way strap to the adjacent FM1 control module (or extender module) and has the indication output, LED and volt free contact, for that switch.

Product Code Description Part No. Quote options Added to Basket
328.000 FX1 EXTENDER MODULE FX1
Qty: - +


Dimensions (mm)

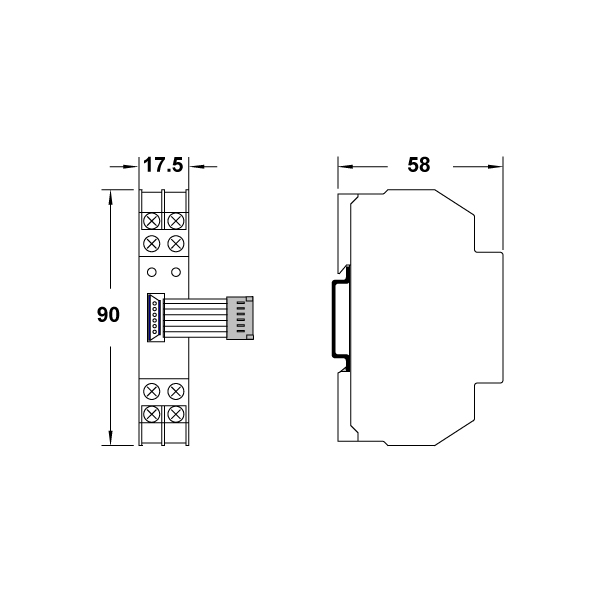

Dimensions in millimetres

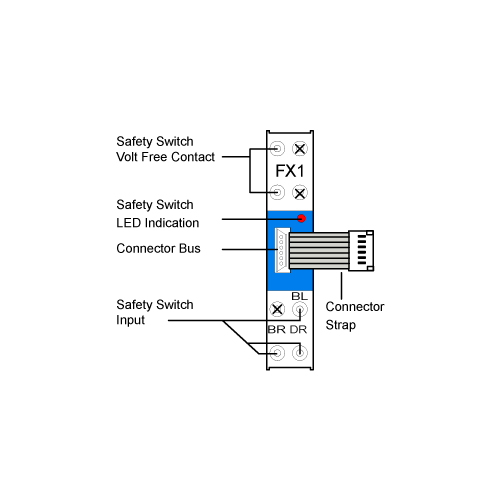

FX1 Layout

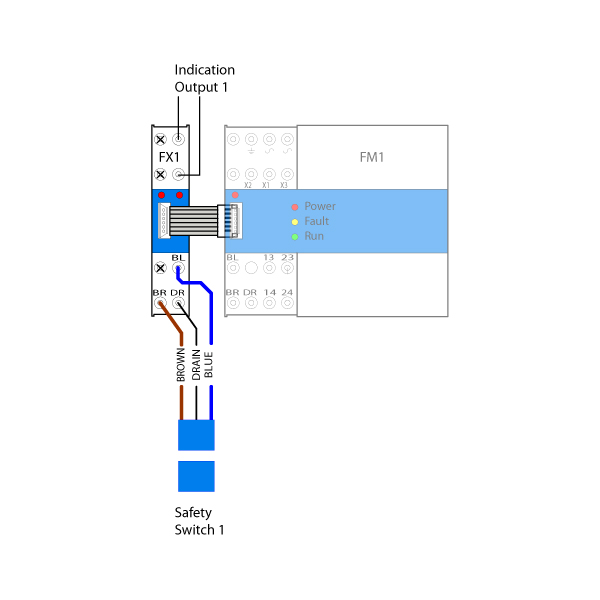

Connection Drawing 1

Technical Specifications
Power Consumption 3VA
Cable / Connector Screw Terminals
Coding Electronic, Generic code
Input 1 Electronic Safety Switch
Indication Guard Status LED and Volt Free Contact
Dimensions of Control Unit (mm) 17.5 x 90 x 58mm
Weight xxx
IP Rating Housing IP30, Terminals IP20
Construction Grey PC-GF
Mounting 35mm DIN Rail
Environmental Specifications
Operating Temperature 0°C to 45°C
Storage Temperature -20°C to 60°C
Safety Related Data
PL in accordance with EN ISO 13849-1 PL-e, CAT 4
SIL CL in accordance with EN IEC 62061 SIL 3
PFHd in accordance with EN IEC 62061 6.0 x 10 -9
PFH 6.52 x 10 -9
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM 20 years
DC 99%
SFF 99.50%
File Title File Name Download File
327 400 ID Iss7 Mechan F Series Install Guide 327-400-ID-Iss7-Mechan-F-Series-Install-Guide.pdf PDF (1009 KB)
