ISIS

ISIS ISIS ISIS

Approvals

CE Approved

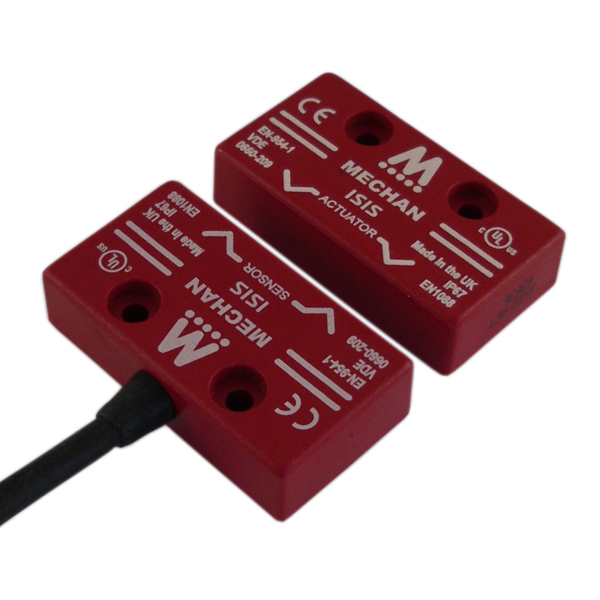

•   Coded Magnetic Safety Switch
•   ABS Housing
•   Fully Encapsulated, IP67
•   Pre-wired, 3, 5 or 10 metre cable ( Max 100m)

The ISIS safety switches are non-contact, tamper resistant safety switches. Resin encapsulated into an ABS housings, providing environmental protection to IP67, The switches can withstand most conditions including: water, dust and high pressure hose cleaning.

The 2-wire connection to each safety switch is monitored by the control unit, detecting both open and short circuit faults immediately and returning the control unit to the off state even if the gate is not operated.



Product Code Description Part No. Quote options Added to Basket
372.000 ISIS-03M SAFETY SWITCH ISIS-03M
Qty: - +

372.001 ISIS-05M SAFETY SWITCH ISIS-05M
Qty: - +

372.002 ISIS-10M SAFETY SWITCH ISIS-10M
Qty: - +

372.005 ISIS-03M switch only ISIS-03M(SO)
Qty: - +

372.099 ISIS ACTUATOR ISIS-ACT
Qty: - +

Get Quote

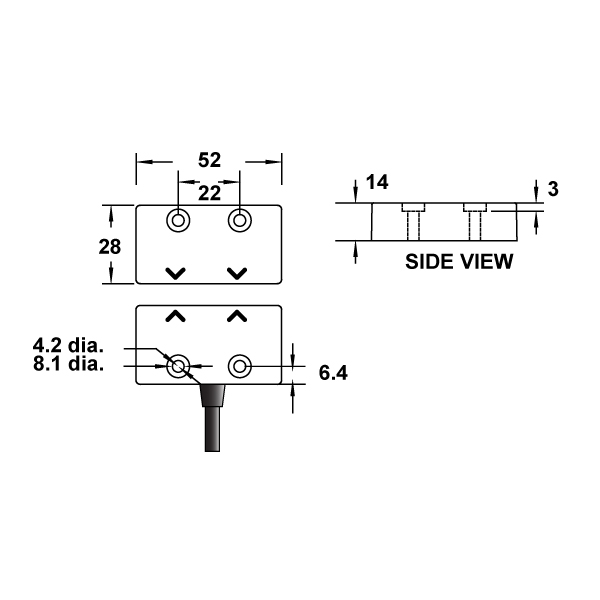

Dimensions (mm)

Dimensions in millimetres

Connection drawing 1

Connection drawing 2

Technical Specifications
Cable / Connector Pre-wired
Cable Length 3, 6, 10 metre
Coding Coded Magnetic, Single Code
Reset Options At control unit
Indication At control unit
Dimensions of Switch (mm) 52 x 28 x 14mm
Dimensions of Actuator (mm) 52 x 28 x 14mm
Weight na
IP Rating IP67
Construction Red ABS, Resin Filled
Mounting 4 x M4 Security Screws
Environmental Specifications
Operating Temperature -10°C to 55°C
Storage Temperature -20°C to 60°C
Safety Related Data
PL in accordance with EN ISO 13849-1 PL-e, CAT 3
SIL CL in accordance with EN IEC 62061 SIL 3
PFHd in accordance with EN IEC 62061 3.37 x 10-8
PFH 5.63 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM 20 Years
DC 99%
SFF 99.40%
Notes

As part of an ISIS System

File Title File Name Download File
370-400v13(MECHAN ISIS INSTALLATION GUIDE).pdf 370-400v13MECHAN-ISIS-INSTALLATION-GUIDE.pdf PDF (180 KB)
