CX1

CX1 CX1 CX1 CX1

Approvals

CE Approved

•   Single gate extender module
•   LED and volt free contact indication
•   35mm DIN rail mounting
•   17.5 mm wide

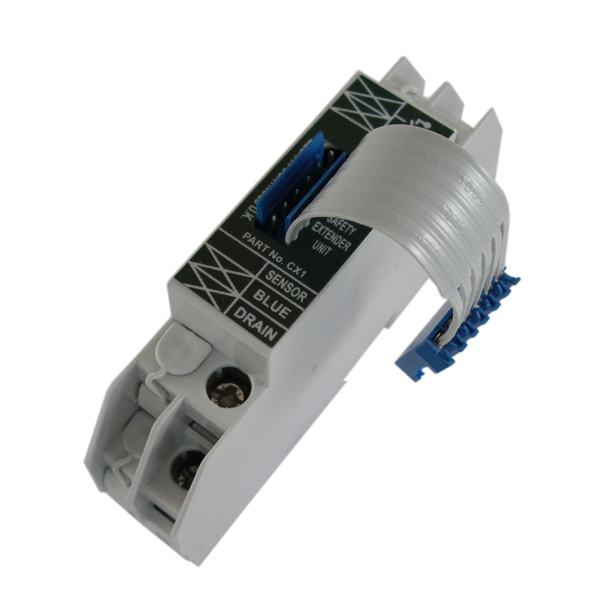

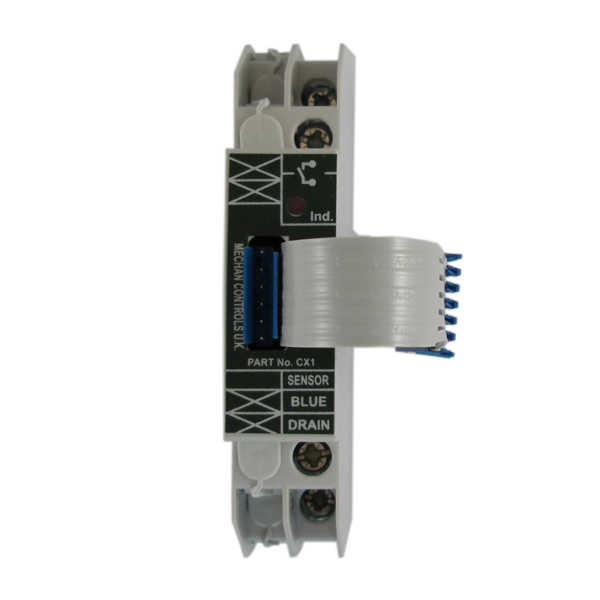

The CX1 extender module adds one safety switch input to a CODEX safety system. Connects via a built in 6-way strap to the adjacent CM1 control module (or extender module) and has the indication output, LED and volt free contact, for that switch.

Product Code Description Part No. Quote options Added to Basket
321.000 CX1 EXTENDER MODULE CX1
Qty: - +

321.001 CX2 EXTENDER MODULE CX2
Qty: - +

Get Quote

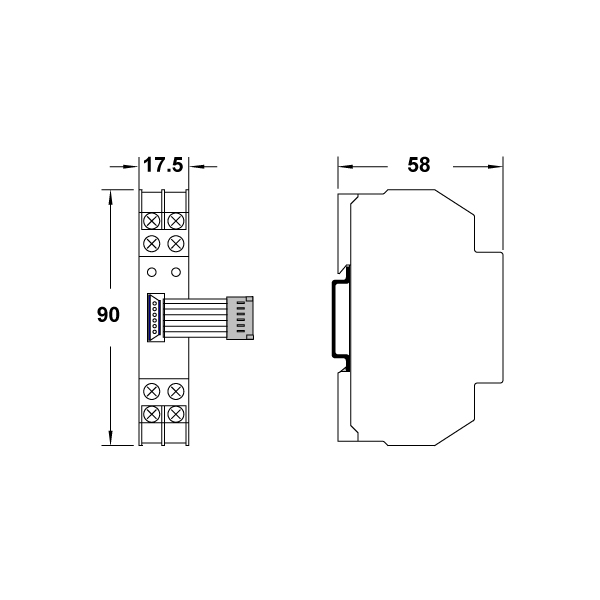

DIMENSIONS (MM)

Dimensions in millimetres

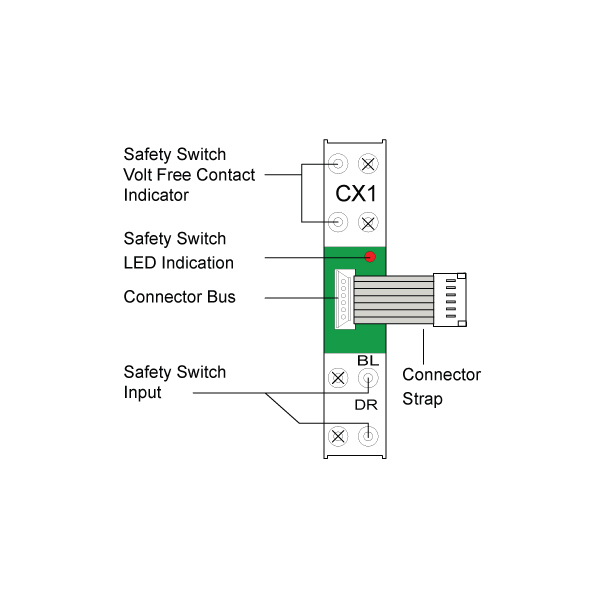

PRODUCT LAYOUT

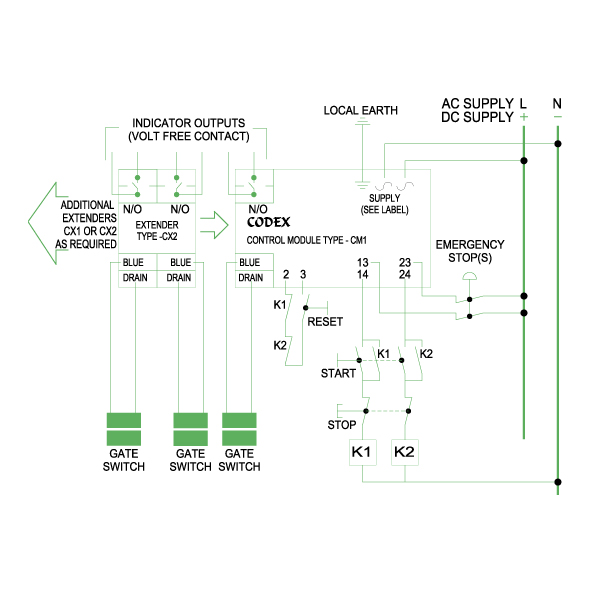

CONNECTION DRAWING 1

Technical Specifications
Power Consumption NA
Coding Digital Electronic, Generic code
Input 1 Codex Safety Switch
Indication Guard Status LED and Volt Free Contact
Dimensions of Control Unit (mm) 17.5 x 90 x 58mm
Weight na
IP Rating Housing IP40, Terminals IP20
Construction Grey PC-GF
Mounting 35mm DIN Rail
Environmental Specifications
Operating Temperature 0°C to 45°C
Storage Temperature -20°C to 50°C
Safety Related Data
PL in accordance with EN ISO 13849-1 CAT 4
SIL CL in accordance with EN IEC 62061
PFHd in accordance with EN IEC 62061
PFH
B10d
MTTFd
TM
DC
SFF
Notes

As part of a CODEX system

File Title File Name Download File
MECHAN CODEX INSTALLATION GUIDE 320-400V7-MECHAN-CODEX-INSTALLATION-GUIDE.pdf PDF (526 KB)
