MPX8

MPX8 MPX8 MPX8 MPX8

Approvals

CE Approved

• 4-8 safety switch inputs
• Dual channel output & monitoring
• 35mm DIN rail mounting
• Fully electronic safety switches
• Unique code option (EN 14119)

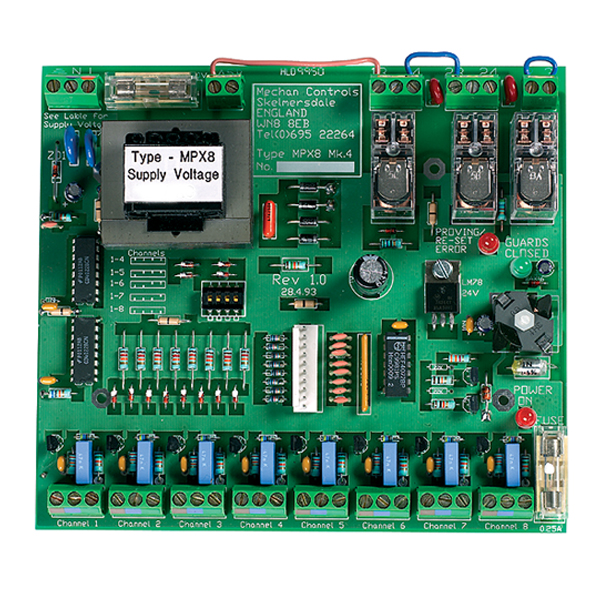

The MPX8 has 2 NO safety output contacts and a reset/monitoring circuit for simple connection to existing control systems. A DIP switch mounted on the PCB of the MPX8 can set the unit to monitor between 4 and 8 fully electronic, Mechan safety switches. Mounted on a chassis plate the MPX8 is designed for easy fitting into a control panel. Optional indicator boards give each safety switch input LED, TFR or volt free contact status indication.

The MPX control units are designed to work with the F-Type, B-Type, S-Type, Dinky electronic safety switches and the unique code CMA electronic safety switches.

Product Code Description Part No. Quote options Added to Basket
304.000 MPX8 24VDC SAFETY CONTROL UNIT CHASSIS MOUNTED MPX8 24VDC
Qty: - +

304.001 MPX8 24VAC SAFETY CONTROL UNIT CHASSIS MOUNTED MPX8 24VAC
Qty: - +

304.002 MPX8 110VAC SAFETY CONTROL UNIT CHASSIS MOUNTED MPX8 110VAC
Qty: - +

304.003 MPX8 240VAC SAFETY CONTROL UNIT CHASSIS MOUNTED MPX8 240VAC
Qty: - +

Get Quote

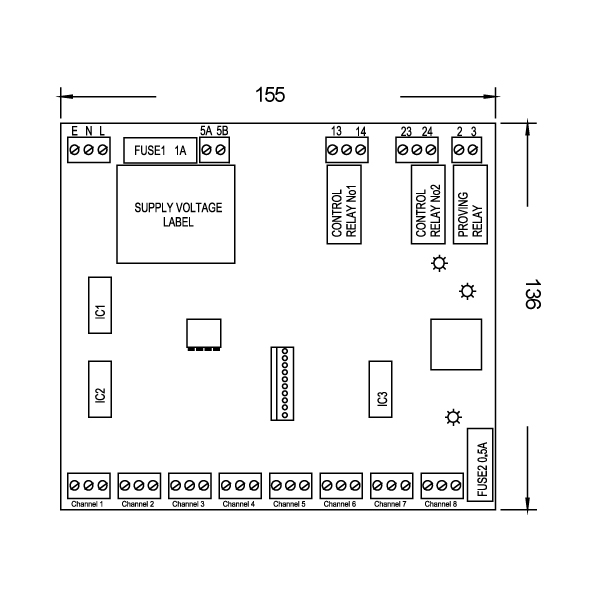

DIMENSIONS (MM)

Dimensions in millimetres

PRODUCT LAYOUT

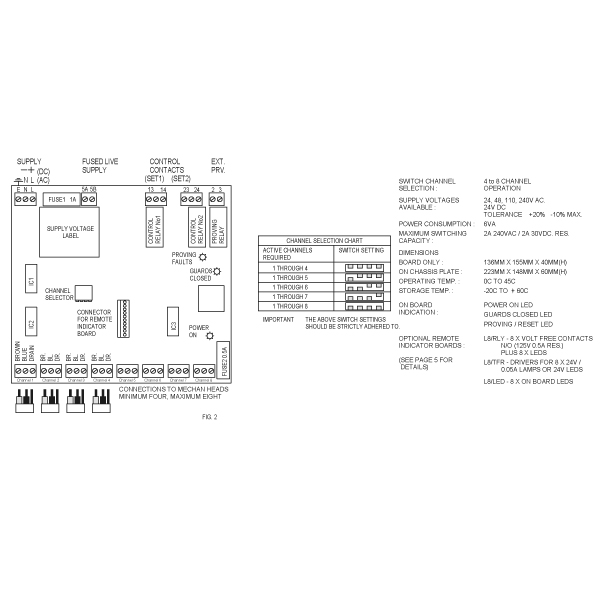

Connection Drawing 1

Connection Drawing 2

Connection Drawing 3

Technical Specifications
Supply Voltage Options 24VDC / 24VAC / 110VAC / 230VAC
Power Consumption 6VA
Safety Output 2 Normally Open
Safety Output Rating 2A/240VAC / 2A 30VDC
Coding Electronic, Generic code
Input 4 - 8 Electronic Safety Switches
Reset Options External Proving / reset Connection
Indication On board LED's for Power, Run& Fault
Dimensions of Control Unit (mm) PCB Only 136(d) x 155(w) x 40(h)mm / Chassis Plate
Weight na
Construction Open PCB
Mounting Chassis Plate
Environmental Specifications
Operating Temperature 0°C to 45°C
Storage Temperature -20°C to 60°C
Safety Related Data
File Title File Name Download File
MECHAN MPX v4 INSTALLATION GUIDE 303-400V3-MECHAN-MPX-v4-INSTALLATION-GUIDE.pdf PDF (105 KB)
