ISIS4

ISIS4 ISIS4 ISIS4 ISIS4

Approvals

CE Approved

•   4 Gate Safety Control Module
•   Integrated E'Stop function
•   24V ac-dc, 110Vac or 230Vac
•   LED Diagnostics
•   Dual Channel Output + Auxilliary
•   Automatic / Manual-Monitored Reset

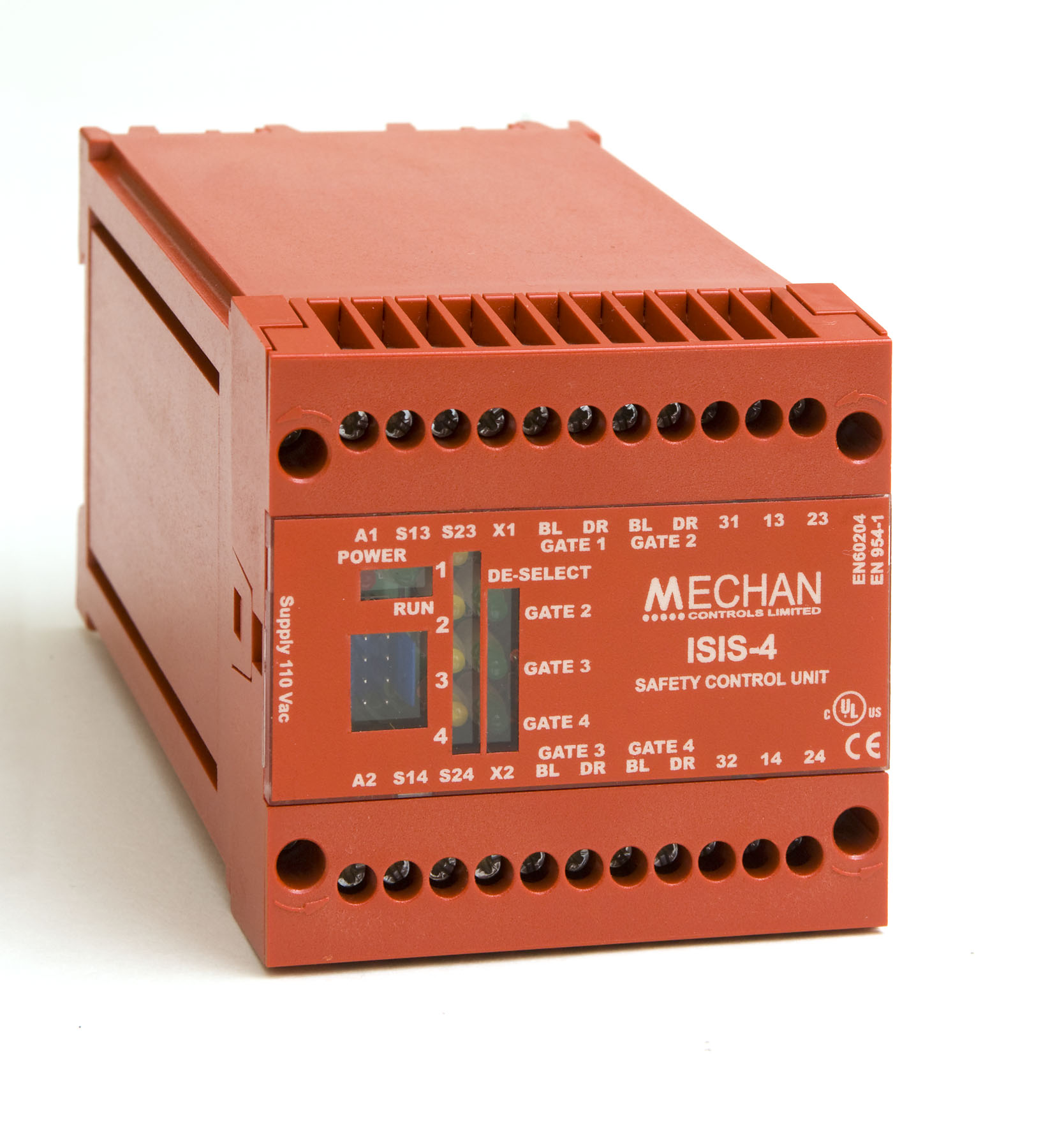

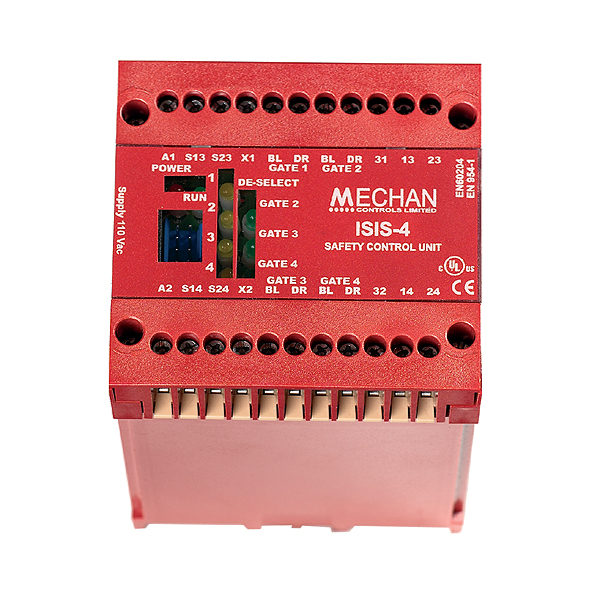

The ISIS-4 is a combined Safety Switch and E-Stop control unit. Along with the ability to monitor up to four ISIS safety switches it can also monitor the normally closed contacts of emergency stop buttons or mechanical safety switches in dual channel control circuits. The ISIS-4 has 2 normally open safety contact outputs and 1 normally closed auxiliary output, an external re-set/proving circuit and LED indication for ‘Power’, ‘Run’ and the status of each activated gate switch.

Product Code Description Part No. Quote options Added to Basket
370.000 ISIS-4 24V AC/DC SAFETY CONTROL UNIT ISIS-4-24V
Qty: - +

370.001 ISIS-4 110VAC SAFETY CONTROL UNIT ISIS-4-110VAC
Qty: - +

370.002 ISIS-4 240VAC SAFETY CONTROL UNIT ISIS-4-240VAC
Qty: - +

Get Quote

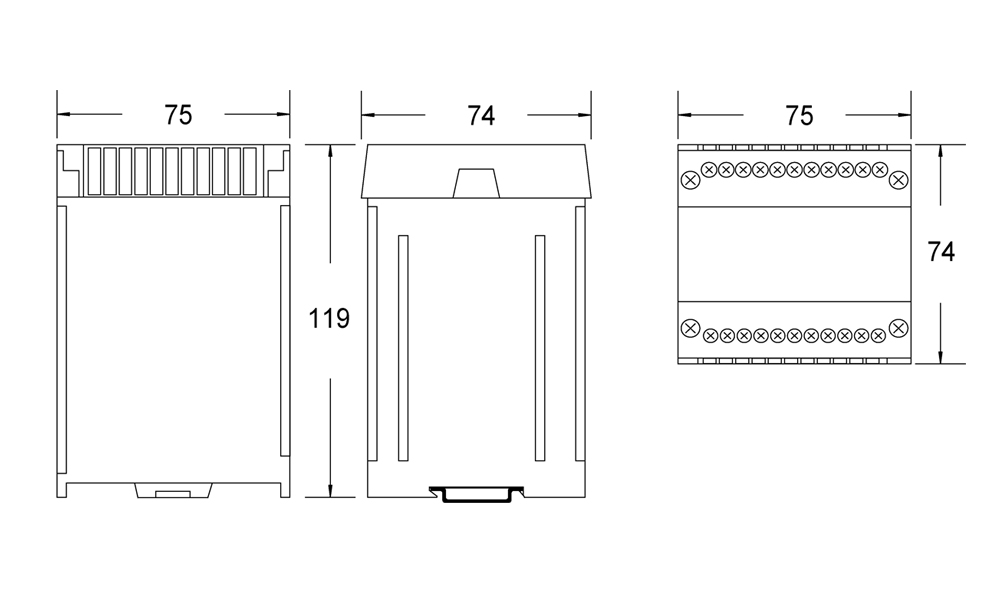

Dimensions (mm)

Dimensions in millimetres

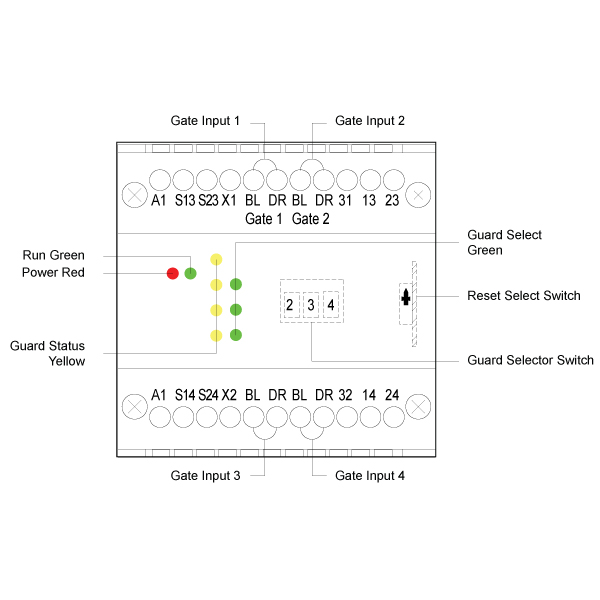

Product Layout


connection drawing 1

Technical Specifications
Supply Voltage Options 110Vac or 24Vac/dc (+/- 15 %)
Power Consumption 6VA
Safety Output 2 x NO
Safety Output Rating 4A/230Vac; 2A/24Vdc(Res.)@Cos=1
Auxilliary Output 1 x NC
Auxilliary Output Rating 4A/230Vac; 2A/24Vdc(Res.)@Cos=1
Coding Single Code, Tamper Resistant
Input Up to 4 ISIS Switches + 1 E'Stop
Reset Options Automatic or Manual Monitored
Indication Power & Run LED's + Guard Select & Status LED's
Dimensions of Control Unit (mm) 75 x 74 x 119mm
Weight na
IP Rating Housing IP40, Terminals IP20
Construction Red Polycarbonate housing and terminals
Mounting 35mm DIN Rail
Environmental Specifications
Operating Temperature -10°C to 55°C
Storage Temperature -20°C to 60°C
Safety Related Data
PL in accordance with EN ISO 13849-1 PL-e, CAT 3
SIL CL in accordance with EN IEC 62061 SIL 3
PFHd in accordance with EN IEC 62061 3.37 x 10-8
PFH 5.63 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 days
TM 20 Years
DC 99%
SFF 99.40%
Notes

As part of an ISIS System
