MS7LQD

MS7LQD MS7LQD

Approvals

CE Approved

Housing:
    Red ABS, Resin Encapsulated
Contacts:
    2NO + 1NC (with door open)
Contact Rating:
    300mA 24VDC
Connection Type:
    M12, 4-Pole / 6-Pole
Operating Distance:
    7mm ON / 20mm OFF
Ingress Protection Rating:
    IP67 and (IP69K: Pre-Wired Only)

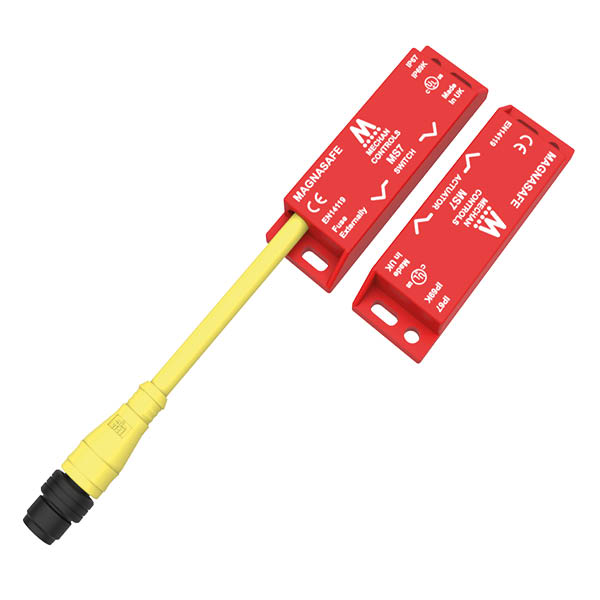

The MAGNASAFE MS7 safety switches are tamper resistant magnetic safety switches suitable for use in machine guarding applications. Encapsulated into red ABS housings, the MS7 safety switches are easy to install, tolerant to misalignment. The magnetic non-contact operation has a minimum 7 mm switching distance helping to ensure a long and trouble free operating life.

Product Code Description Part No. Quote options Added to Basket
357.004 MS7 / Plastic / 2NO + 1NC / DC / 6-Pole M12 (Switch and Actuator) - 5m Cable MS7-21-DC-LQD-5M
Qty: - +

357.008 MS7 / Plastic / 2NO + 1NC / DC / 6-Pole M12 (Switch and Actuator) - 10m Cable MS7-21-DC-LQD-10M
Qty: - +

357.009 MS7 / Plastic / 2NO + 1NC / DC / 6-Pole M12 (Switch and Actuator) - No Cable MS7-21-DC-LQD (NC)
Qty: - +

360.004 CABLE 6 CORE 05M 2 KEY WAY QD 6-CORE-2KEYWAY-05M-QD
Qty: - +

360.012 CABLE 6 CORE 10M 2 KEY WAY QD 6-CORE-2KEYWAY-10M-QD
Qty: - +

Get Quote

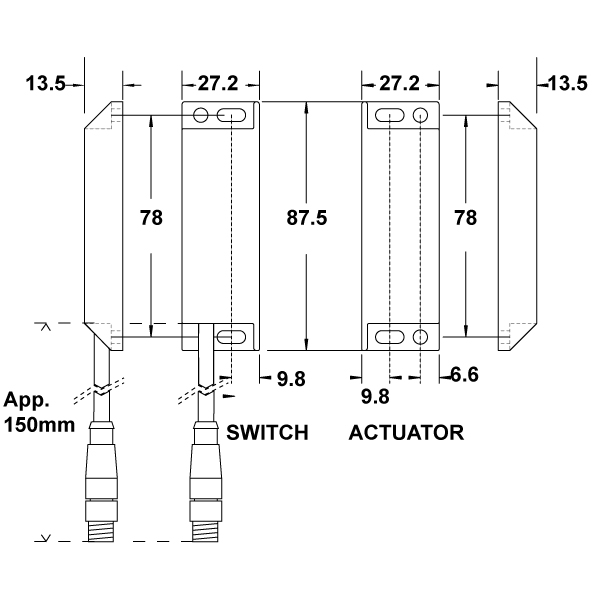

Dimensions in millimetres

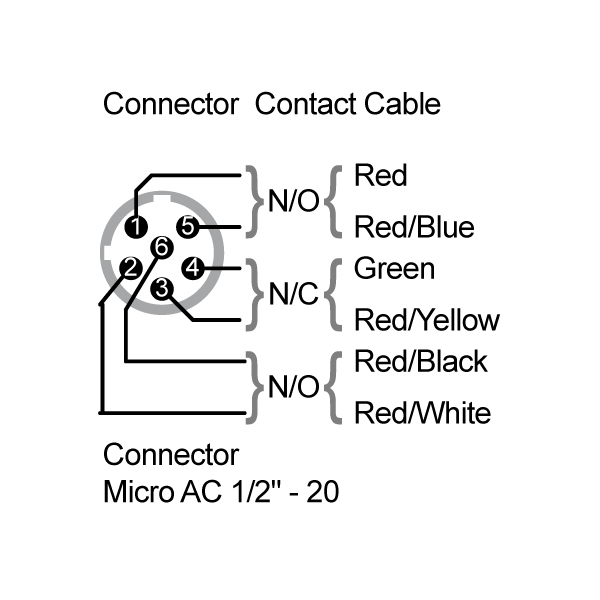

2 Normally Open Contacts + 1 Normally Closed

Technical Specifications
Safety Output Up to 2 x NO
Safety Output Rating 24Vdc / 300mA
Auxilliary Output Up to 1 x NC
Auxilliary Output Rating 15W / 10VA
Cable / Connector Leaded Quick Disconnect
Cable Length 5 or 10 metre
Coding Tamper resistant
Indication 1 x Volt Free Contact
Dimensions of Switch (mm) 87.5 x 27.2 x 13.5
Dimensions of Actuator (mm) 87.5 x 27.2 x 13.5
Weight na
IP Rating IP67
Construction Red ABS, Resin Filled
Mounting 4 x M4 Security Screws
Environmental Specifications
Operating Temperature -25°C to +55°C
Storage Temperature -25°C to +55°C
Safety Related Data
PL in accordance with EN ISO 13849-1 na
SIL CL in accordance with EN IEC 62061 na
PFHd in accordance with EN IEC 62061 4.3 x 10-8 See Note 1
PFH 6.52 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM > 20 Years
DC 99%
SFF 98%
Notes

1)
Based on dual channel wiring according to CAT 3. Diagnostic coverage provided by downstream control logic. DC - medium, MTTFd = 100 Years

File Title File Name Download File
350 401 Iss10 MECHAN MS5 MS7 Installation Guide 350-401-Iss10-MECHAN-MS5-MS7-Installation-Guide.pdf PDF (1001 KB)
