CS1

CS1 CS1

Approvals

CE Approved

•   Electronic safety switch
•   Fully encapsulated, IP67
•   Pre-wired, 5, 10, 15 metre cable (Max 100m)
•   Built in cable strain relief

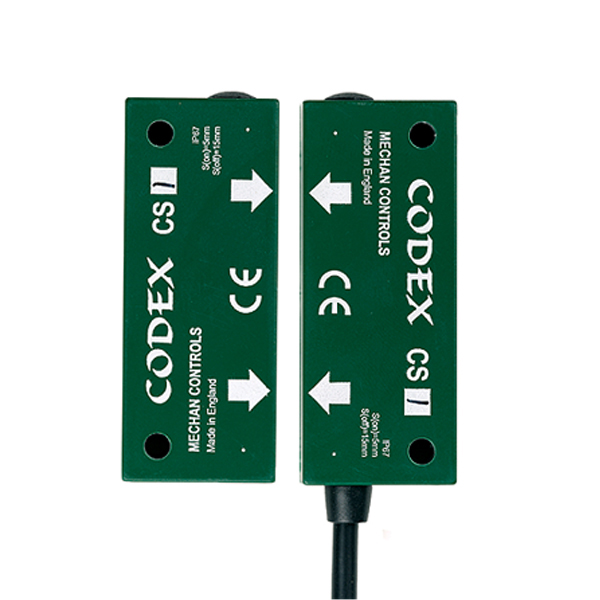

CS1 digital electronic safety switches are part of the CODEX safety system. Fully encapsulated into green ABS housings, with pre-drilled fixing holes directly through the body of the switch for additional strength and a consistent 10mm switching even when mounted on metal frames. The CODEX safety switches are easy to fit and offer exceptional physical strength for long term reliability.

Product Code Description Part No. Quote options Added to Basket
322.000 CS1-5M CODEX SAFETY SWITCH CS1-5M
Qty: - +

322.001 CS1-10M CODEX SAFETY SWITCH CS1-10M
Qty: - +

322.002 CS1-15M CODEX SAFETY SWITCH CS1-15M
Qty: - +

322.023 CS1-20M CODEX SAFETY SWITCH CS1-20M
Qty: - +

322.029 CS1-30M CODEX SAFETY SWITCH CS1-30M
Qty: - +

322.010 CS1-REC-5M CODEX RECEIVER WITH 5M CABLE CS1-5M (REC)
Qty: - +

322.011 CS1-REC-10M CODEX RECEIVER WITH 10M CABLE CS1-10M (REC)
Qty: - +

322.012 CS1-REC-15M CODEX RECEIVER WITH 15M CABLE CS1-15M (REC)
Qty: - +

322.097 CS1-ACT CODEX ACTUATOR ONLY CS1-ACT
Qty: - +

Get Quote

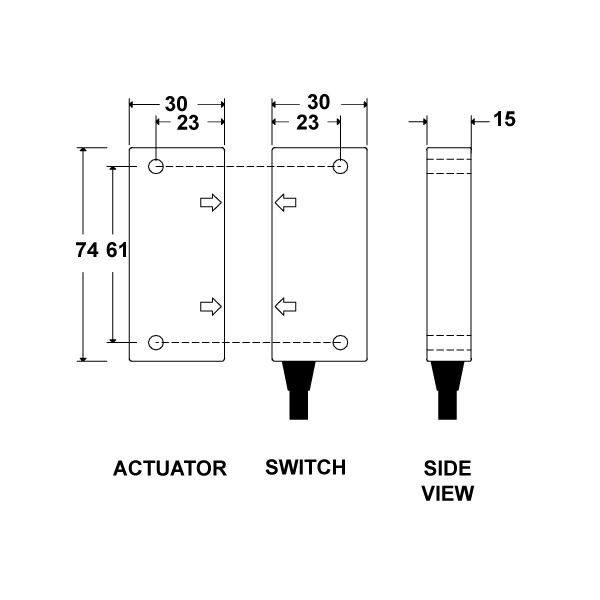

DIMENSIONS (MM)

Dimensions in millimetres

Connection Drawing 1

Technical Specifications
Power Consumption NA
Cable / Connector PRE-WIRED
Cable Length 5, 10 OR 15 METER
Coding Digital Electronic, Generic code
Dimensions of Switch (mm) 74 x 30 x 15mm
Dimensions of Actuator (mm) 74 x 30 x 15mm
Weight na
IP Rating IP67
Construction Green ABS, Resin Filled
Mounting 4 x M4
Environmental Specifications
Operating Temperature 0°C to 45°C
Storage Temperature -20°C to 50°C
Safety Related Data
PL in accordance with EN ISO 13849-1 CAT 4
SIL CL in accordance with EN IEC 62061
PFHd in accordance with EN IEC 62061
PFH
B10d
MTTFd
TM
DC
SFF
Notes

As part of a CODEX system

File Title File Name Download File
MECHAN CODEX INSTALLATION GUIDE 320-400V7-MECHAN-CODEX-INSTALLATION-GUIDE.pdf PDF (526 KB)
