PLU

PLU PLU

Approvals

CE Approved

• Versions available for ‘F’ series Control Modules
• Compact, safe, simple to install
• Quick fit pneumatic connections
• Fail safe totally sealed cylinder
• Uniquely coded sensors available

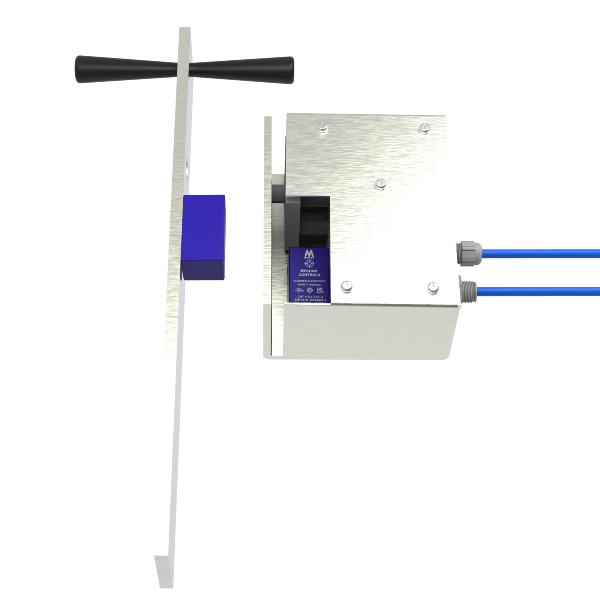

The Mechan PLU Air operated Locking unit is a complete, fail-safe system designed to lock a Gate or Access Lid securely until it is safe to enter. This can be determined either by a Motion Stop detector or a simple timer. It incorporates both a Bolt Position Sensor Switch and a Mechan Guard switch to sense when the locking bar (not shown ) is in position

Product Code Description Part No. Quote options Added to Basket
318.001 PLU PNEUMATIC LOCKING UNIT COMPLETE PLU
Qty: - +

318.003 PLU LOCKING UNIT WITHOUT COVER & LOCKING BAR
Qty: - +

318.004 BMS-PLU-15M SAFETY SWITCH FOR PLU LOCKING UNIT BMS-PLU-15M
Qty: - +

318.005 PLU Lid Only
Qty: - +

318.006 LOCKING ARM C/W BM ACTUATOR
Qty: - +

Get Quote

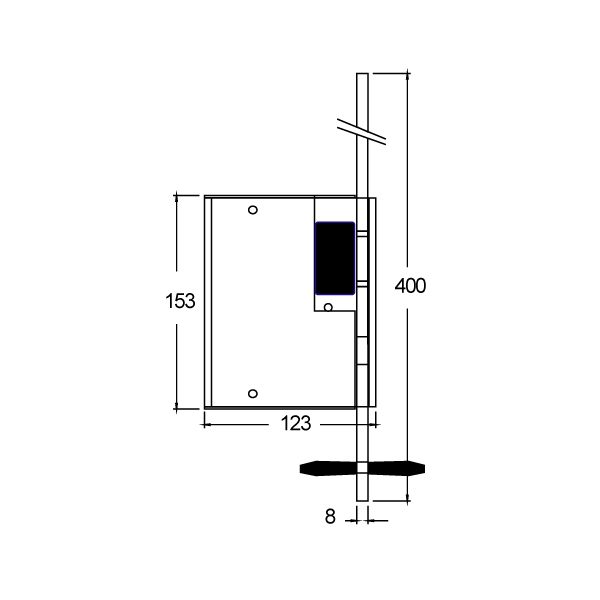

Dimensions (mm)

Dimensions in millimetres

Technical Specifications
Supply Voltage Options na
Power Consumption na
Safety Output At control unit
Cable / Connector Pre-wired
Cable Length 5/10 15 metre longer to order
Coding Electronic, Generic code
Reset Options At control unit
Indication At control unit
Dimensions of Control Unit (mm) See install guide
Dimensions of Switch (mm) na
Dimensions of Actuator (mm) na
Weight na
IP Rating IP67
Construction Alluminium
Mounting na
Environmental Specifications
Operating Temperature na
Storage Temperature na
Safety Related Data
PL in accordance with EN ISO 13849-1
SIL CL in accordance with EN IEC 62061
PFHd in accordance with EN IEC 62061
PFH
B10d
MTTFd
TM
DC
SFF
File Title File Name Download File
MECHAN PLU LOCKING UNIT 318-001v2-MECHAN-PLU-F-SERES.pdf PDF (412 KB)
MECHAN F-SERIES INSTALLATION GUIDE 327-400-ID-v1-1-Mechan-F-Series-Install-Guide.pdf PDF (2.1 MB)
