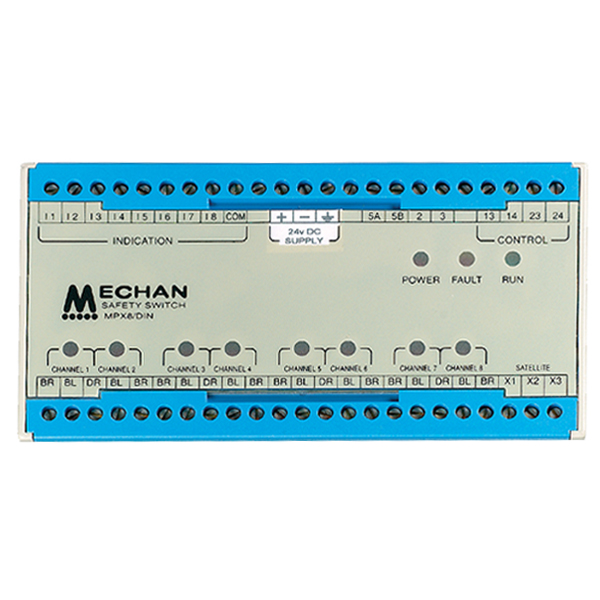

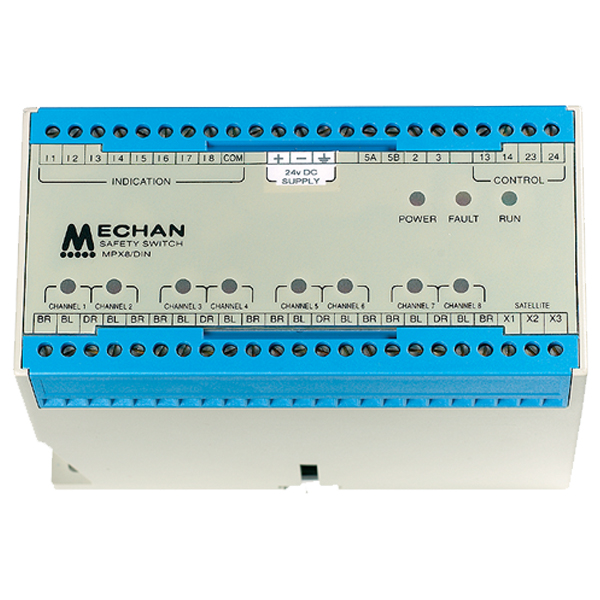

MPX8DIN

MPX8DIN MPX8DIN MPX8DIN MPX8DIN

Approvals

CE Approved

• 5-8 safety switch inputs
• Dual channel output & monitoring
• 35mm DIN Rail mounting
• Fully electronic safety switches
• Unique code option (EN 14119)

The MPX8/DIN has 2 NO safety output contacts and a reset/monitoring circuit for simple connection to existing control systems. A DIP switch mounted under the lid of the MPX8/DIN can set the unit to monitor between 5 and 8 fully electronic, Mechan safety switches. Each safety switch input has a LED status indicator on the control unit and a volt free contact for remote signalling to PLC or mimic panel.

The MPX/DIN control units are designed to work with the F-Type, B-Type, S-Type, Dinky electronic safety switches and the unique code CMA electronic safety switches.



Product Code Description Part No. Quote options Added to Basket
302.000 MPX8/DIN 24VDC SAFETY CONTROL UNIT MPX8/DIN 24VDC
Qty: - +

302.001 MPX8/DIN 24VAC SAFETY CONTROL UNIT MPX8/DIN 24VAC
Qty: - +

302.002 MPX8/DIN 110VAC SAFETY CONTROL UNIT MPX8/DIN 110VAC
Qty: - +

302.003 MPX8/DIN 240VAC SAFETY CONTROL UNIT MPX8/DIN 240VAC
Qty: - +

Get Quote

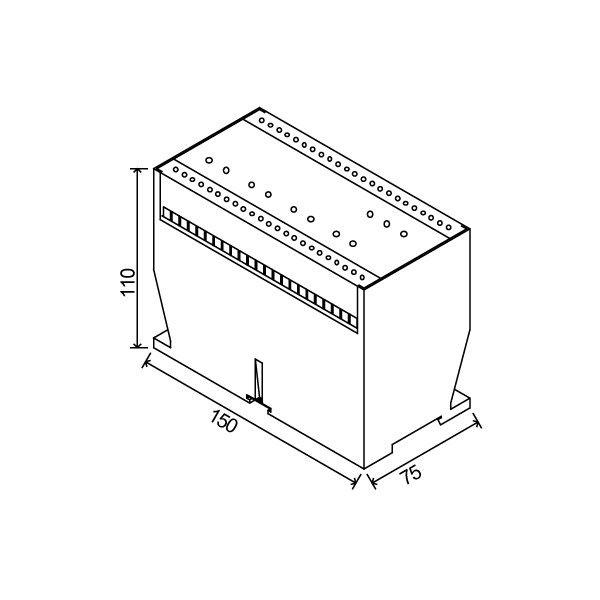

DIMENSIONS (MM)

Dimensions in millimetres

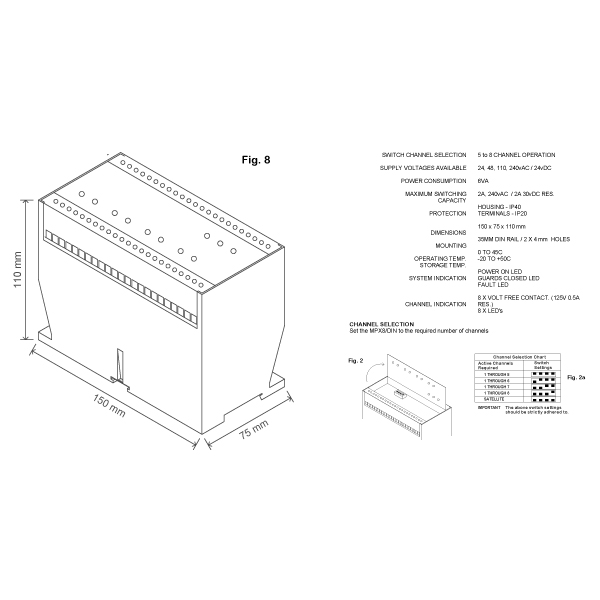

PRODUCT LAYOUT

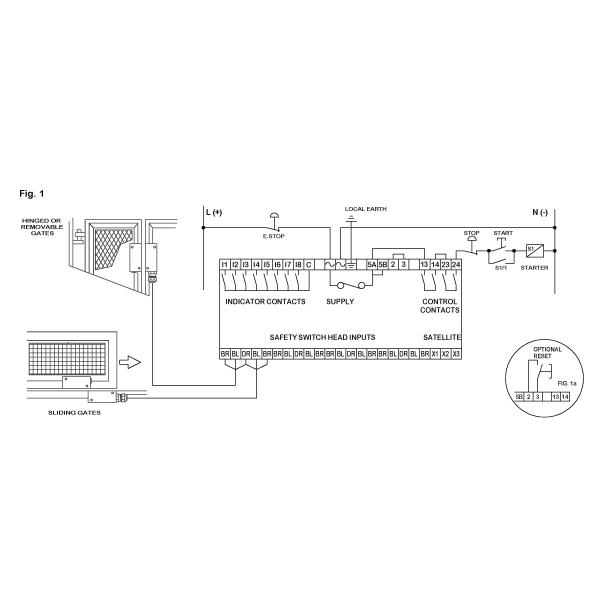

Connection Drawing 1

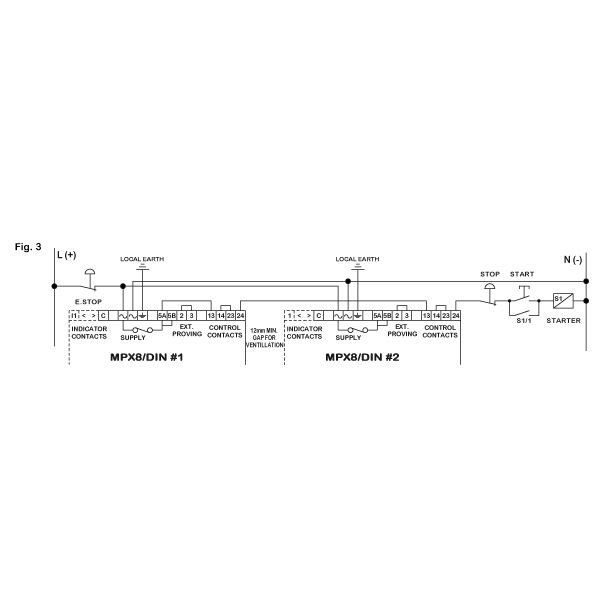

Connection Drawing 2

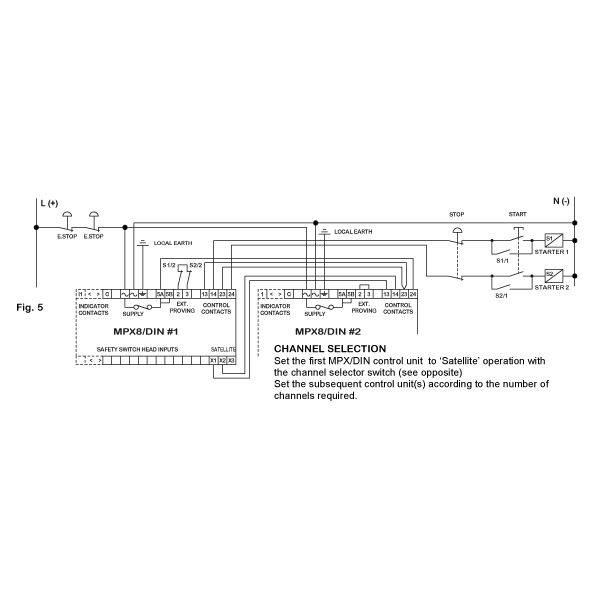

Connection Drawing 3

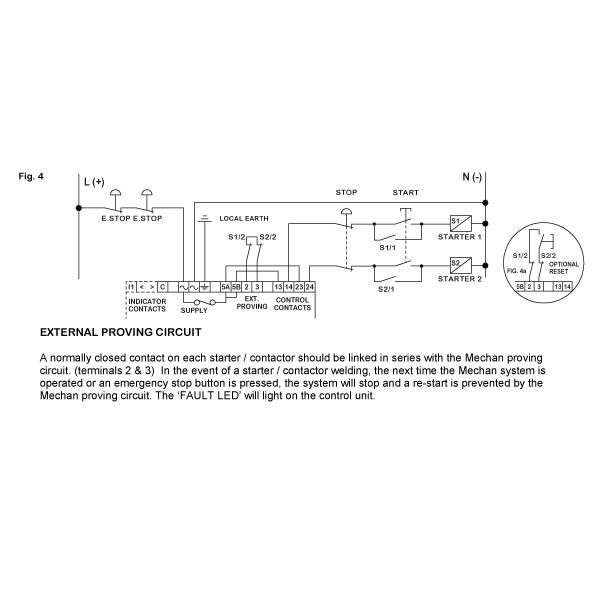

Connection Drawing 4

Technical Specifications
Supply Voltage Options 24VDC / 24VAC / 110VAC / 230VAC
Power Consumption 6VA
Safety Output 2 Normally Open
Safety Output Rating 2A/240VAC / 2A 30VDC
Coding Electronic, Generic code
Input 5 to 8 Electronic Safety Switches
Reset Options External Proving / reset Connection
Indication LED's for Power, Run & Fault. Guard Status LED
Dimensions of Control Unit (mm) 150 x 75 x 110mm
Weight na
IP Rating Housing IP40, Terminals IP20
Construction Grey Polycarbonate, Blue Terminals
Mounting 35mm DIN Rail
Environmental Specifications
Operating Temperature 0°C to 45°C
Storage Temperature -20°C to 50°C
Safety Related Data
