CM1

CM1 CM1 CM1 CM1

Approvals

CE Approved

•   Master control module
•   24Vdc/110Vac/230Vac
•   LED diagnostics
•   Dual Channel Output
•   Automatic/manual-monitored reset

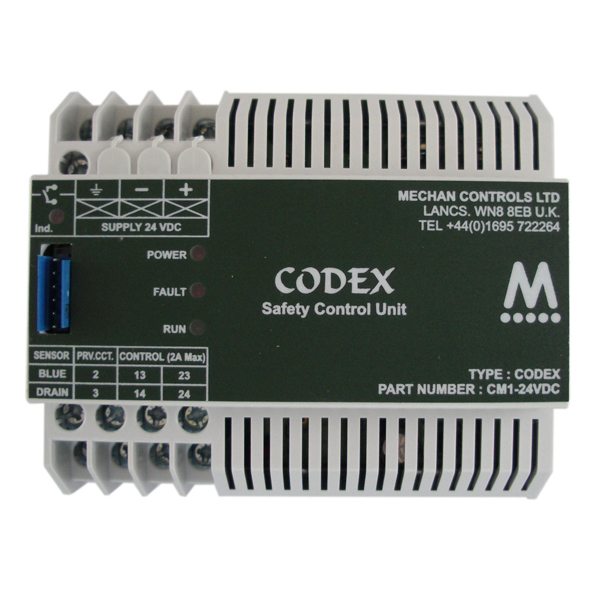

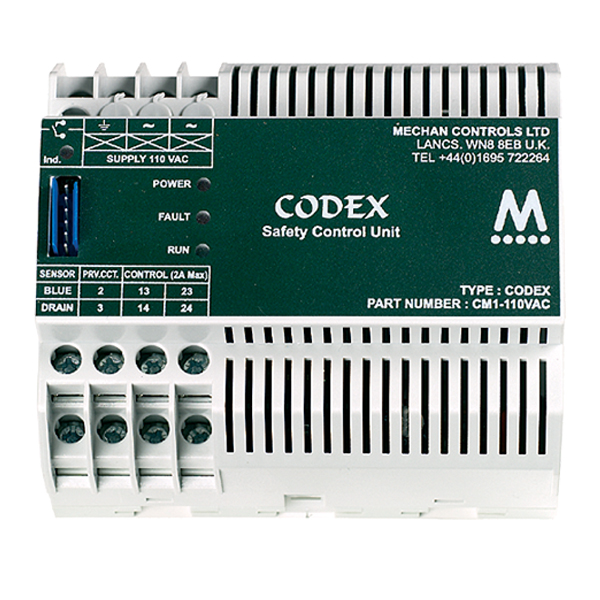

The CM1 is the master control module for each CODEX safety system.  The CM1 provides 2 NO force guided contact  safety outputs, internal and external relay monitoring circuit, LED system indication and the dynamic digital signal input for one Mechan safety switch sensor.
The CM1 can be ordered to operate with 24Vdc, 24Vac, 110Vac or 230Vac supply

Product Code Description Part No. Quote options Added to Basket
320.000 CM1 24VDC SAFETY CONTROL UNIT CM1-24VDC
Qty: - +

320.001 CM1 24VAC SAFETY CONTROL UNIT CM1-24VAC
Qty: - +

320.002 CM1 110VAC SAFETY CONTROL UNIT CM1-110VAC
Qty: - +

320.003 CM1 240VAC SAFETY CONTROL UNIT CM1-240VAC
Qty: - +

Get Quote

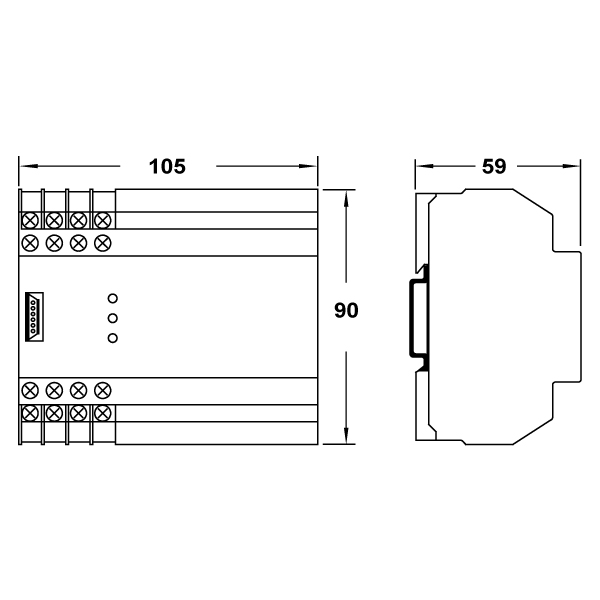

DIMENSIONS (MM)

Dimensions in millimetres

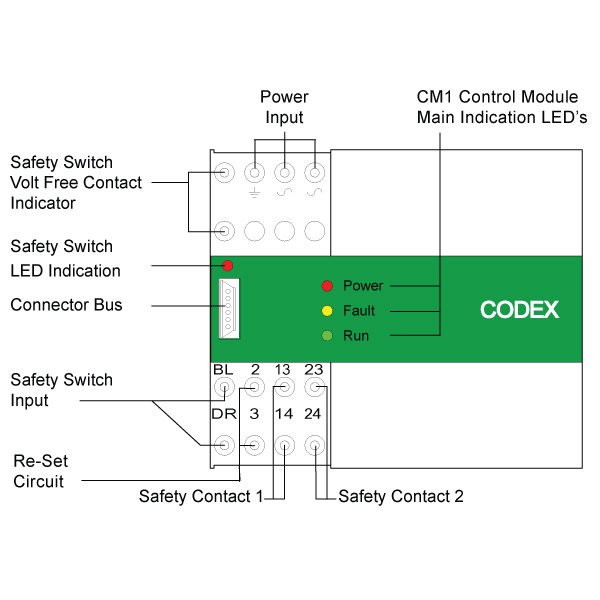

PRODUCT LAYOUT


CONNECTION DRAWING 1

Technical Specifications
Supply Voltage Options 24VDC / 24VAC / 110VAC / 230VAC
Power Consumption AC=6VA; DC=100mA + 20mA/Channel;
Safety Output 2 Normally Open
Safety Output Rating 2A/240VAC / 2A 30VDC
Auxilliary Output 1 NORMALLY OPEN
Auxilliary Output Rating 0.5A @ 125VAC
Coding Digital Electronic, Generic code
Input 1 Codex safety switch
Reset Options Manual / Automatic
Indication LED's for Power, Run& Fault. Guard Status LED and
Dimensions of Control Unit (mm) 105 x 90 x 59mm
Weight na
IP Rating Housing IP40, Terminals IP20
Construction Grey PC-GF
Mounting 35mm DIN Rail
Environmental Specifications
Operating Temperature 0°C to 45°C
Storage Temperature -20°C to 50°C
Safety Related Data
PL in accordance with EN ISO 13849-1 CAT 4
SIL CL in accordance with EN IEC 62061
PFHd in accordance with EN IEC 62061
PFH
B10d
MTTFd
TM
DC
SFF
Notes

As part of a CODEX system
