O-Type - OSSD Safety Switches

Approvals

CE Approved

   OHE1 - Coded Magnetic / ODNK & OSSG - Uniquely Coded RFID
•   Advanced OSSD Outputs, Connect up to 30 in Series Maintaining PL-e
•   Dual RGB Indication for Advanced Diagnostics

•   Unique Overhanging LED for Visibility in all Mounting Positions
•   External Device Monitoring with 2A Output Rating
•   IP67 & IP69K Fully Sealed, Washdown

The O-Type range combines 40+ years of experience design­ing and manufacturing machine guard safety switches with the latest in safety technology. There unique design means 30off O-Type switches can be connected in series maintaining PL-e.

The O-Type safety switches have been designed for use on applications where guard-locking is not required. They are available in either uniquely coded RFID (yellow) or coded magnetic (black). The dual channel OSSD outputs can be used to reach a safety category of CAT4, SIL3, PL-e in accordance with the latest international safety standards. Because they have no mechanical parts, they guarantee a long life even in applications with regular operation cycles and tough environmental conditions.

The O-Type switches can be used with a fea­ture called EDM (external device monitor­ing). This means you can monitor the state of contactors or safety relays in order to detect failure of the external device eliminating the need for a safety monitoring device.

File Title File Name Download File
365 400 O Type Installation Guide Iss8 365-400-O-Type-Installation-Guide-Iss8.pdf PDF (0)
Product Type Product Code Description Part No.  Quote options Added to basket

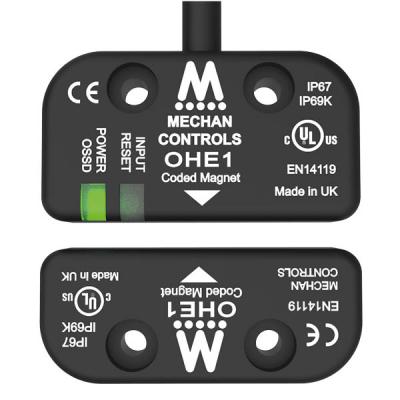

OHE1 FRONT V2 O-Type OHE1
  365.001

OHE1 / Plastic / 2 OSSD + 1NC / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

OHE1-21-DC-03M
Qty: - +

  365.002

OHE1 / Plastic / 2 OSSD + 1NC / 24VDC / 06-Metre Pre-Wired (Switch and Actuator)

OHE1-21-DC-06M
Qty: - +

  365.003

OHE1 / Plastic / 2 OSSD + 1NC / 24VDC / 10-Metre Pre-Wired (Switch and Actuator)

OHE1-21-DC-10M
Qty: - +

  365.004

OHE1 / Plastic / 2 OSSD + 1NC / EDM / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

OHE1-21-DC-EDM-03M
Qty: - +

  365.005

OHE1 / Plastic / 2 OSSD + 1NC / EDM / 24VDC / 06-Metre Pre-Wired (Switch and Actuator)

OHE1-21-DC-EDM-06M
Qty: - +

  365.006

OHE1 / Plastic / 2 OSSD + 1NC / EDM / 24VDC / 10-Metre Pre-Wired (Switch and Actuator)

OHE1-21-DC-EDM-10M
Qty: - +

  365.010

OHE1-ACT (ACTUATOR ONLY)

OHE1-ACT
Qty: - +

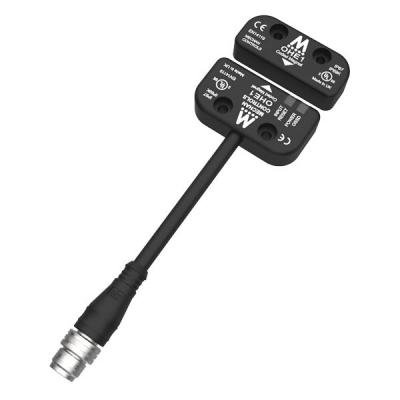

OHE1 LQD V2 O-Type OHE1-LQD
  365.007

OHE1 / 2 OSSD (OUTPUT ONLY) + 1NC / 24VDC / 5-PIN M12 (Switch and Actuator)

OHE1-21-DC-5LQD
Qty: - +

  365.008

OHE1 / 2 OSSD + 1NC / 24VDC / 8-PIN M12 (Switch and Actuator)

OHE1-21-DC-8LQD
Qty: - +

  365.009

OHE1 / 2 OSSD + 1NC / EDM / 24VDC / 12-PIN M12 (Switch and Actuator)

OHE1-21-DC-EDM-12LQD
Qty: - +

  365.010

OHE1-ACT (ACTUATOR ONLY)

OHE1-ACT
Qty: - +

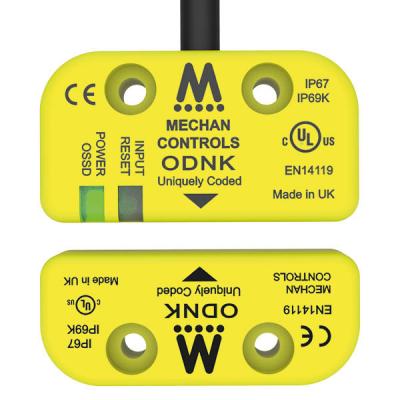

ODNK FRONT V2 O-Type ODNK
  365.011

ODNK / Plastic / 2 OSSD + 1NC / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

ODNK-21-DC-03M
Qty: - +

  365.012

ODNK / Plastic / 2 OSSD + 1NC / 24VDC / 06-Metre Pre-Wired (Switch and Actuator)

ODNK-21-DC-06M
Qty: - +

  365.013

ODNK / Plastic / 2 OSSD + 1NC / 24VDC / 10-Metre Pre-Wired (Switch and Actuator)

ODNK-21-DC-10M
Qty: - +

  365.014

ODNK / Plastic / 2 OSSD + 1NC / EDM / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

ODNK-21-DC-EDM-03M
Qty: - +

  365.015

ODNK / Plastic / 2 OSSD + 1NC / EDM / 24VDC / 06-Metre Pre-Wired (Switch and Actuator)

ODNK-21-DC-EDM-06M
Qty: - +

  365.016

ODNK / Plastic / 2 OSSD + 1NC / EDM / 24VDC / 10-Metre Pre-Wired (Switch and Actuator)

ODNK-21-DC-EDM-10M
Qty: - +

  365.020

ODNK-ACT (ACTUATOR ONLY)

ODNK-ACT
Qty: - +

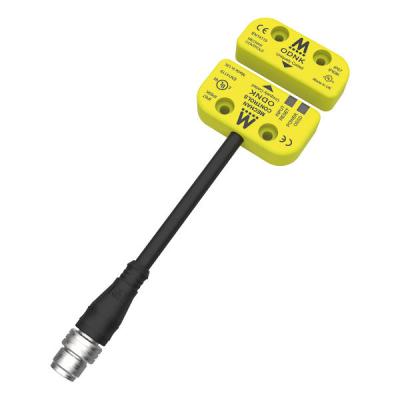

ODNK LQD V2 O-Type ODNK-LQD
  365.017

ODNK / 2 OSSD (OUTPUT ONLY) + 1NC / 24VDC / 5-PIN M12 (Switch and Actuator)

ODNK-21-DC-5LQD
Qty: - +

  365.018

ODNK / 2 OSSD + 1NC / 24VDC / 8-PIN M12 (Switch and Actuator)

ODNK-21-DC-8LQD
Qty: - +

  365.019

ODNK / 2 OSSD + 1NC / EDM / 24VDC / 12-PIN M12 (Switch and Actuator)

ODNK-21-DC-EDM-12LQD
Qty: - +

  365.020

ODNK-ACT (ACTUATOR ONLY)

ODNK-ACT
Qty: - +

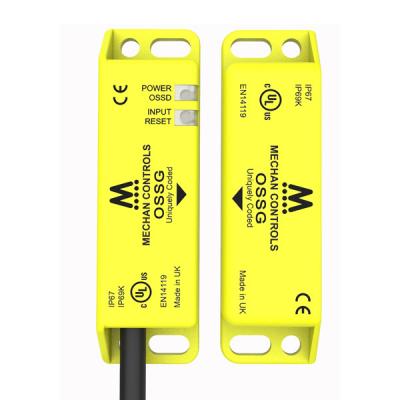

OSSG FRONT SWITCH O-Type OSSG
  365.018

OSSG / Plastic / 2 OSSD + 1NC / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

OSSG-21-DC-03M
Qty: - +

  365.019

OSSG / Plastic / 2 OSSD + 1NC / 24VDC / 06-Metre Pre-Wired (Switch and Actuator)

OSSG-21-DC-06M
Qty: - +

  365.020

OSSG / Plastic / 2 OSSD + 1NC / 24VDC / 10-Metre Pre-Wired (Switch and Actuator)

OSSG-21-DC-10M
Qty: - +

  365.021

OSSG / Plastic / 2 OSSD + 1NC / EDM / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

OSSG-21-DC-EDM-03M
Qty: - +

  365.022

OSSG / Plastic / 2 OSSD + 1NC / EDM / 24VDC / 06-Metre Pre-Wired (Switch and Actuator)

OSSG-21-DC-EDM-06M
Qty: - +

  365.023

OSSG / Plastic / 2 OSSD + 1NC / EDM / 24VDC / 10-Metre Pre-Wired (Switch and Actuator)

OSSG-21-DC-EDM-10M
Qty: - +

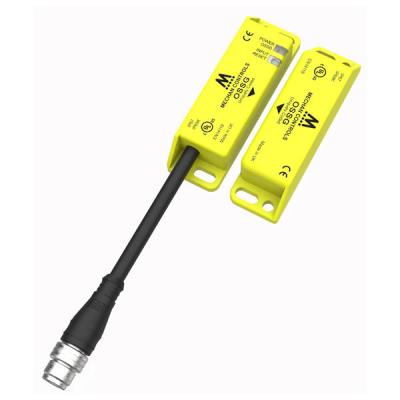

OSSG LQD O-Type OSSG-LQD
  365.024

OSSG / 2 OSSD (OUTPUT ONLY) + 1NC / 24VDC / 5-PIN M12 (Switch and Actuator)

ODNK-21-DC-5LQD
Qty: - +

  365.025

OSSG / 2 OSSD + 1NC / 24VDC / 8-PIN M12 (Switch and Actuator)

ODNK-21-DC-8LQD
Qty: - +

  365.026

OSSG / 2 OSSD + 1NC / EDM / 24VDC / 12-PIN M12 (Switch and Actuator)

ODNK-21-DC-EDM-12LQD
Qty: - +
