FM6

FM6 FM6 FM6

Approvals

CE Approved

•   Electronic safety switch
•   Fully encapsulated, IP67
•   Pre-wired, 5, 10, 15 metre cable (Max 100m)
•   Slimline housing (retro-fit magnetic switches)

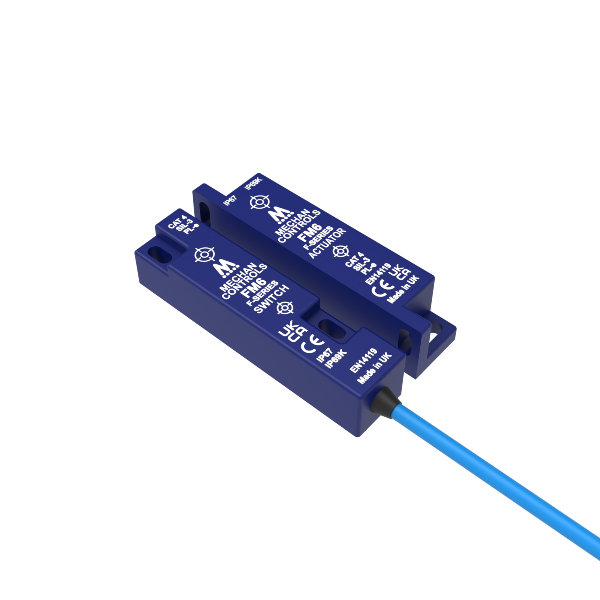

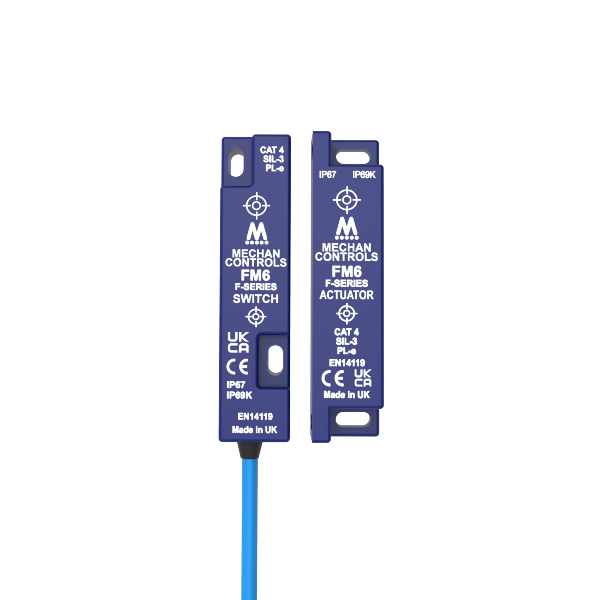

The FM6 electronic safety switches have the same Mechan electronic safety switching, fully encapsulated into industry standard slimline blue ABS housings. Designed to make it even easier to upgrade from older magnetic safety switches to higher performance electronic switches, the FM6 can replace many standard safety switches without the need to change mounting brackets or fixing holes.

Product Code Description Part No. Quote options Added to Basket
Get Quote

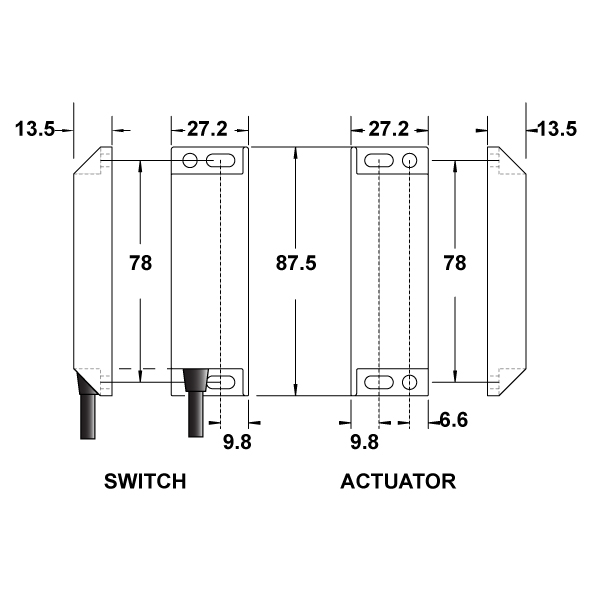

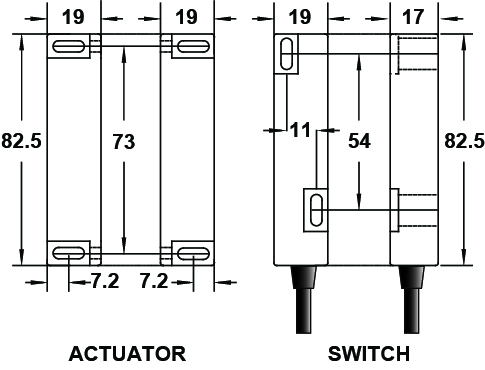

Dimensions (mm)

Dimensions in millimetres

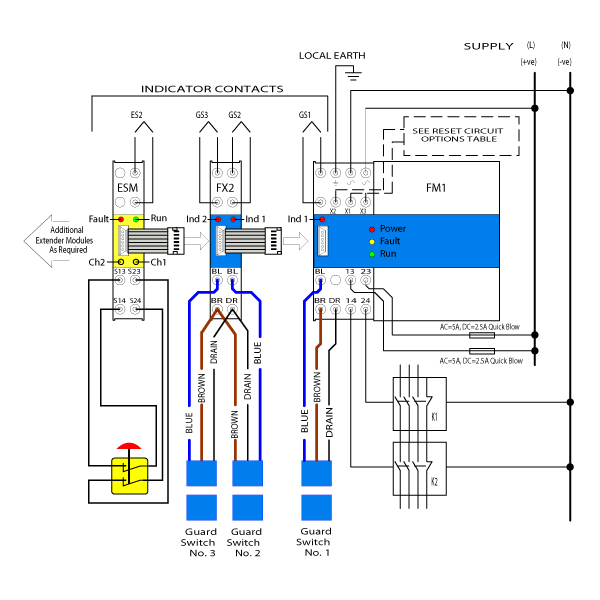

Connection Drawing 1

Technical Specifications
Power Consumption na
Cable / Connector Pre-wired
Cable Length 5/10 15 metre longer to order
Coding Electronic, Generic code
Reset Options At control unit
Indication At control unit
Dimensions of Switch (mm) 82.5 X 19 X 17MM
Dimensions of Actuator (mm) 82.5 X 19 X 19MM
Weight na
IP Rating IP67
Construction Blue ABS, Resin Filled
Mounting 4 x M4 Security Screws
Environmental Specifications
Operating Temperature -20°C to 50°C
Storage Temperature -20°C to 50°C
Safety Related Data
PL in accordance with EN ISO 13849-1 PL-e, CAT 4
SIL CL in accordance with EN IEC 62061 SIL 3
PFHd in accordance with EN IEC 62061 6.0 x 10 -9
PFH 6.52 x 10 -9
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM 20 years
DC 99%
SFF 99.50%
Notes

As part of an F Series system

File Title File Name Download File
MECHAN F-SERIES INSTALLATION GUIDE 327-400-ID-v1-1-Mechan-F-Series-Install-Guide.pdf PDF (2.1 MB)
