MPX4

MPX4 MPX4 MPX4 MPX4

Approvals

CE Approved

• 2-4 safety switch inputs
• Dual channel output & monitoring
• 35mm DIN rail mounting
• Fully electronic safety switches
• Unique code option (EN 14119)

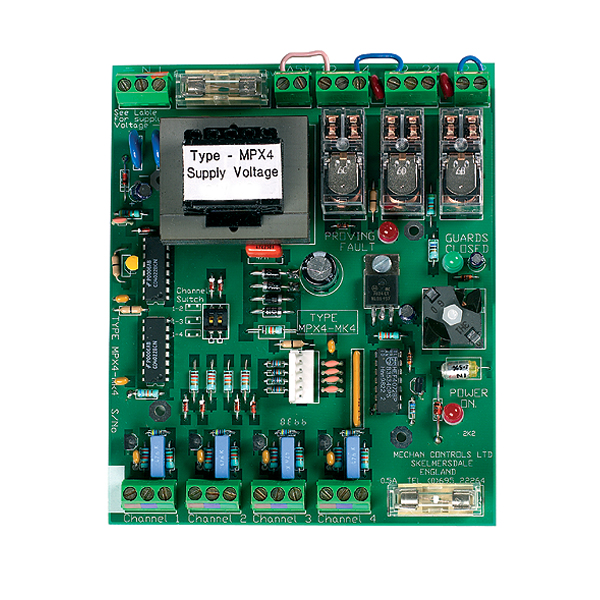

The MPX4 has 2 NO safety output contacts and a reset/monitoring circuit for simple connection to existing control systems. A DIP switch mounted on the PCB of the MPX4 can set the unit to monitor between 2 and 4 fully electronic, Mechan safety switches. Mounted on a chassis plate the MPX4 is designed for easy fitting into a control panel. Optional indicator boards give each safety switch input LED, TFR or volt free contact status indication.

The MPX control units are designed to work with the F-Type, B-Type, S-Type, Dinky electronic safety switches and the unique code CMA electronic safety switches.

Product Code Description Part No. Quote options Added to Basket
303.000 MPX4 24VDC SAFETY CONTROL UNIT CHASSIS MOUNTED MPX4 24VDC
Qty: - +

303.001 MPX4 24VAC SAFETY CONTROL UNIT CHASSIS MOUNTED MPX4 24VAC
Qty: - +

303.002 MPX4 110 VAC SAFETY CONTROL UNIT CHASSIS MOUNTED MPX4 110VAC
Qty: - +

303.003 MPX4 240VAC SAFETY CONTROL UNIT CHASSIS MOUNTED MPX4 240VAC
Qty: - +

Get Quote

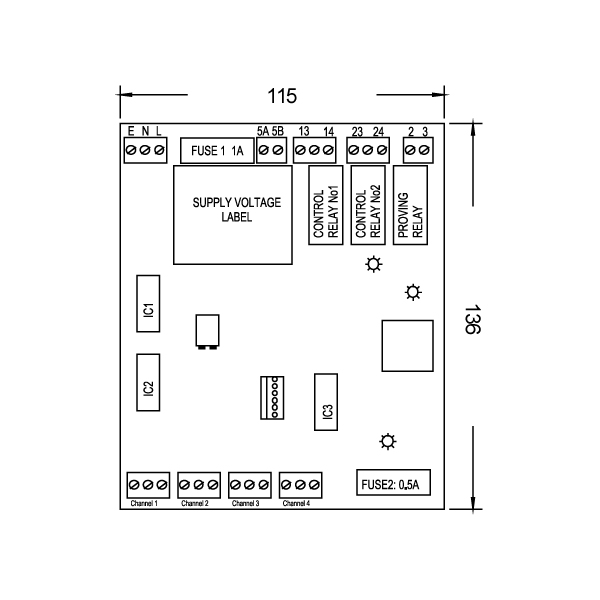

DIMENSIONS (MM)

Dimensions in millimetres

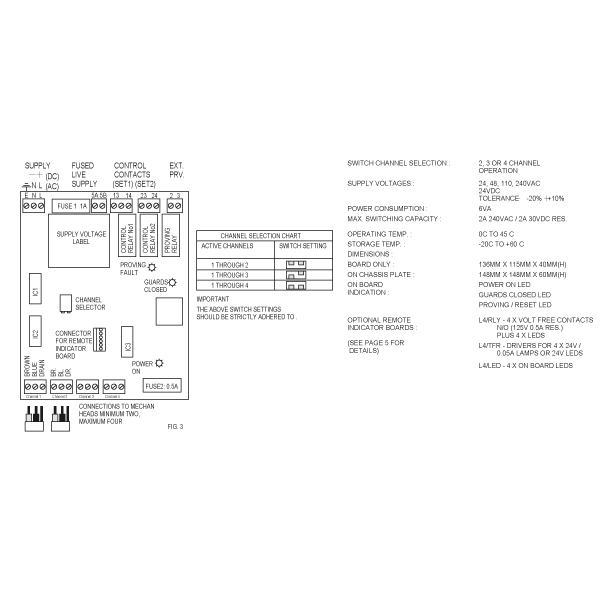

PRODUCT LAYOUT

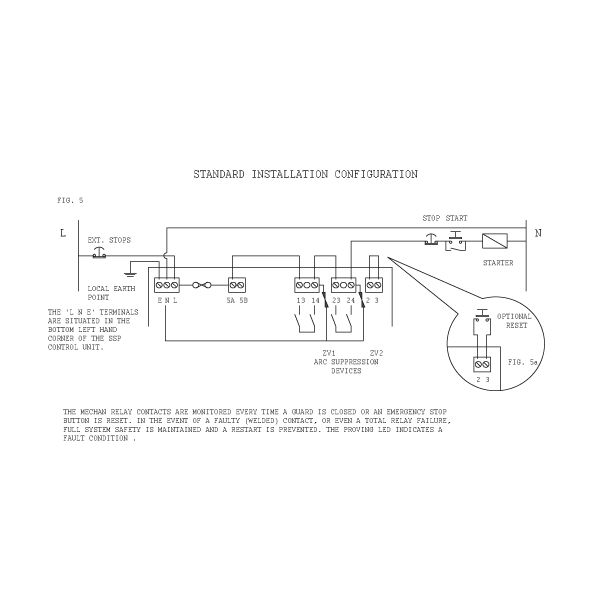

Connection Drawing 1

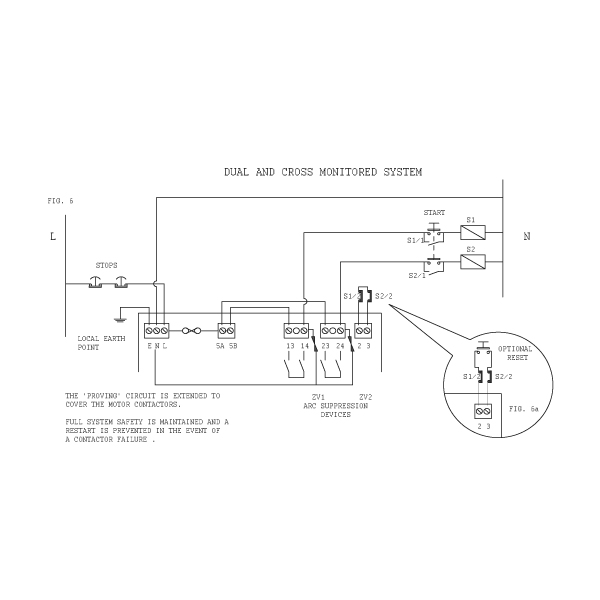

Connection Drawing 2

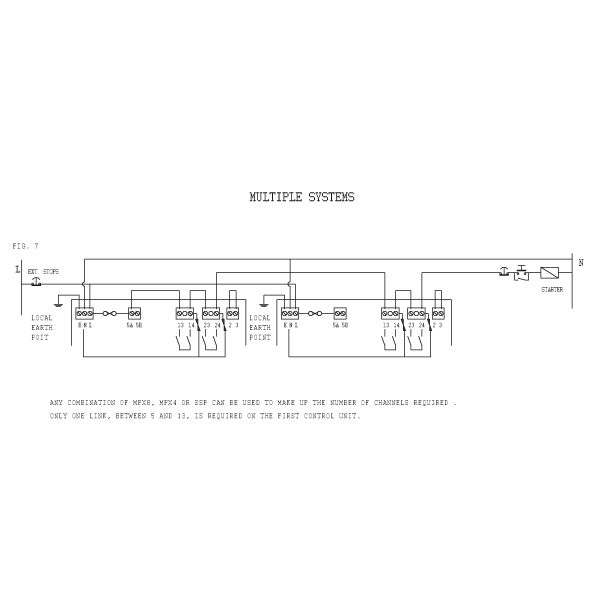

Connection Drawing 3

Technical Specifications
Supply Voltage Options 24VDC / 24VAC / 110VAC / 230VAC
Power Consumption 6VA
Safety Output 2 Normally Open
Safety Output Rating 2A/240VAC / 2A 30VDC
Coding Electronic, Generic code
Input 2,3 or 4 Electronic Safety Switches
Reset Options External Proving / reset Connection
Indication On board LED's for Power, Run & Fault
Dimensions of Control Unit (mm) PCB Only 136(d) x 115(w) x 40(h)mm / Chassis Plate
Weight na
Construction Open PCB
Mounting Chassis Plate
Environmental Specifications
Operating Temperature 0°C to 45°C
Storage Temperature -20°C to 60°C
Safety Related Data
File Title File Name Download File
MECHAN MPX v4 INSTALLATION GUIDE 303-400V3-MECHAN-MPX-v4-INSTALLATION-GUIDE.pdf PDF (105 KB)
