INDICATOR

INDICATOR INDICATOR INDICATOR INDICATOR

Approvals

CE Approved

   Add on indicator for MPX chassis mount
•   1, 4 or 8 way versions
•   Simple plug connection
•   LED - On board LED
•   TFR - Remote 24v lamp
•   RLY
 -
Relay, volt free contact outputs

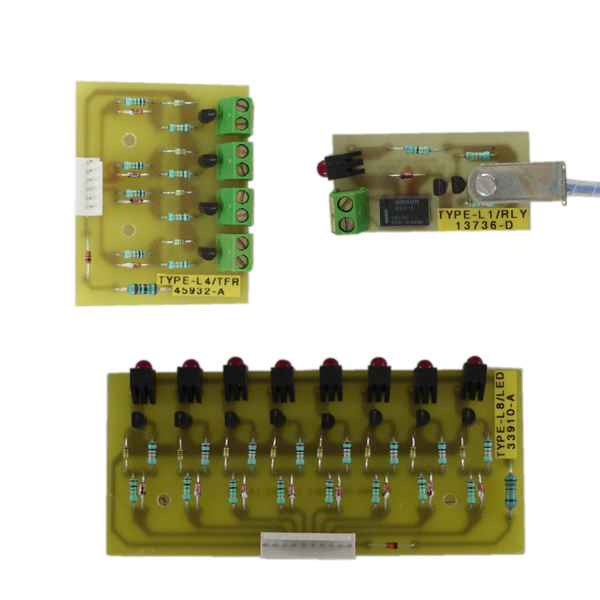

The MPX indicator boards are a simple add-on to the chassis mounted MPX safety control units. Providing each safety switch input with either LED, lamp or relay output for easy indication of fault/gate status to the operator, or signalling to PLC for system monitoring.

Product Code Description Part No. Quote options Added to Basket
313.000 L1/TFR INDICATOR BOARD L1/TFR
Qty: - +

313.001 L1/LED INDICATOR BOARD L1/LED
Qty: - +

313.002 L1/LED/R INDICATOR BOARD L1/LED/R
Qty: - +

313.003 L1/RLY INDICATOR BOARD L1/RLY
Qty: - +

313.004 L4/TFR INDICATOR BOARD L4/TFR
Qty: - +

313.005 L4/LED INDICATOR BOARD L4/LED
Qty: - +

313.006 L4/LED/R INDICATOR BOARD L4/LED/R
Qty: - +

313.007 L4/RLY INDICATOR BOARD L4/RLY
Qty: - +

313.008 L8/TFR INDICATOR BOARD L8/TFR
Qty: - +

313.009 L8/LED INDICATOR BOARD L8/LED
Qty: - +

313.01 L8/LED/R INDICATOR BOARD L8/LED/R
Qty: - +

313.011 L8/RLY INDICATOR BOARD L8/RLY
Qty: - +


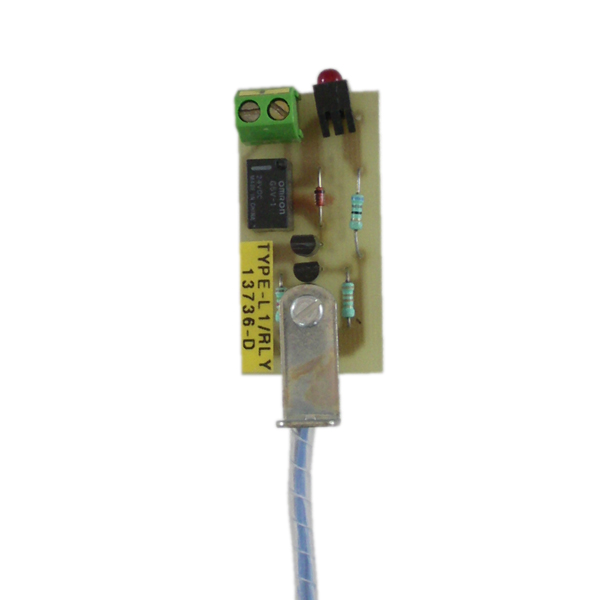

RLY Indicator Board

Download Step Drawing IND-RLY.jpg

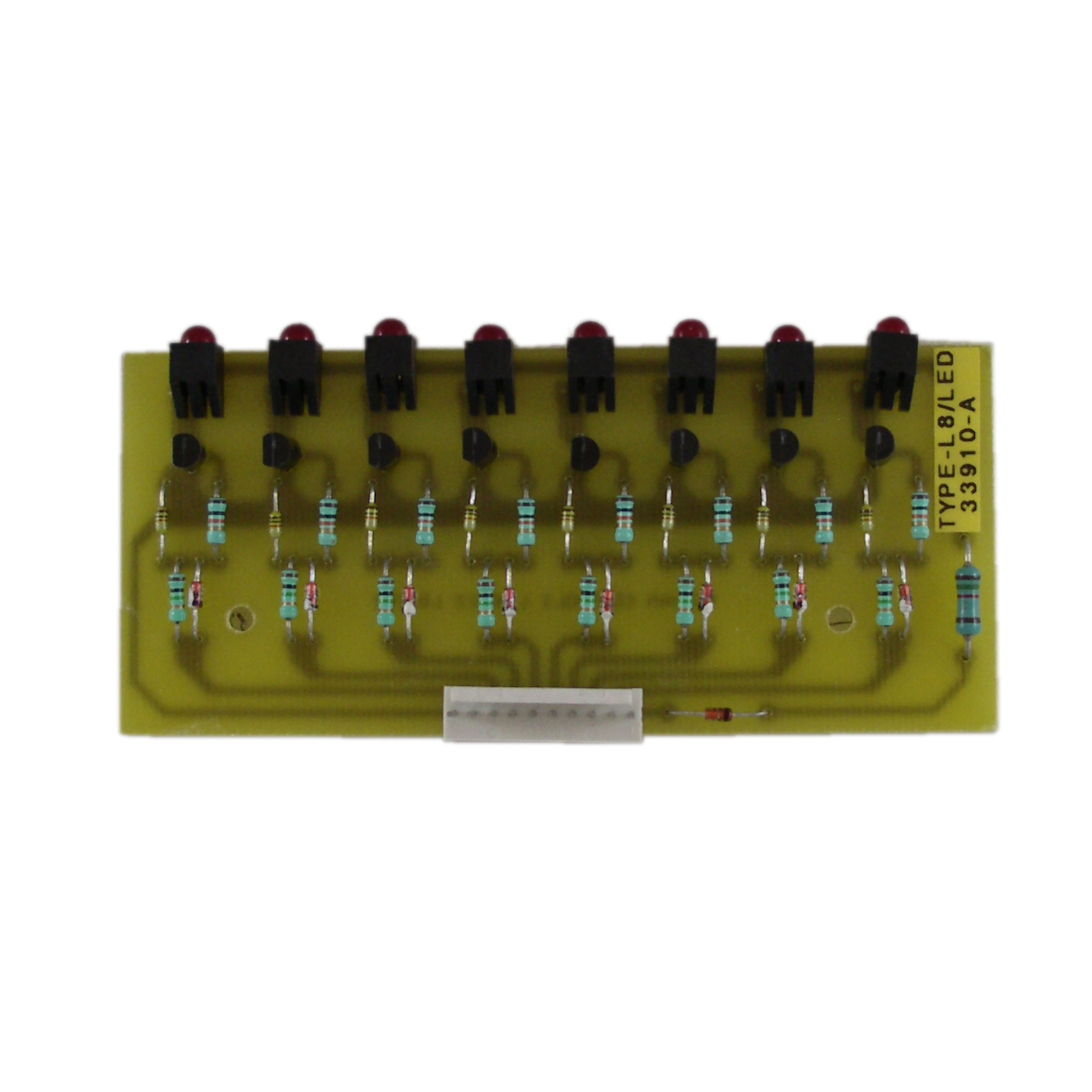

LED Indicator Board

Dimensions in millimetres

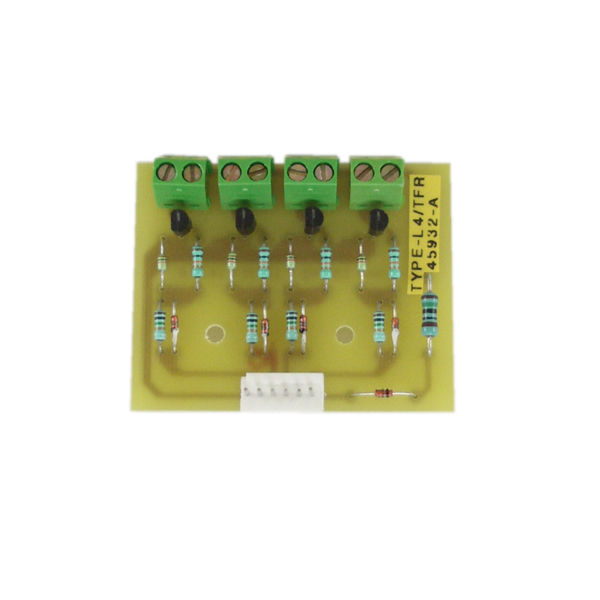

TFR Indicator Board

IND TFR

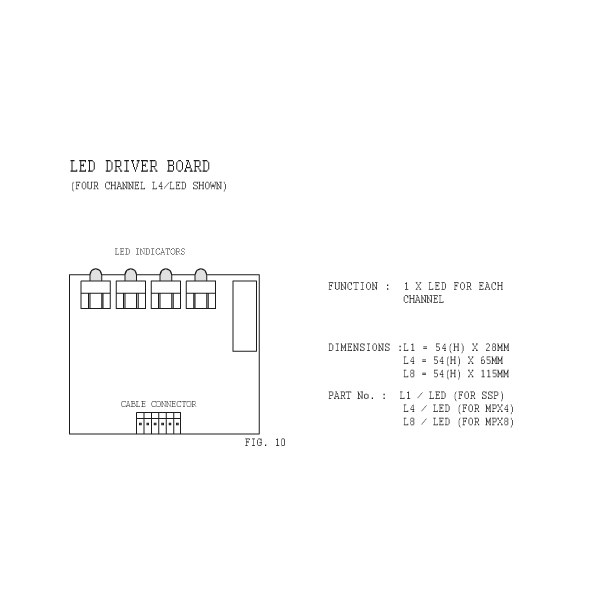

LED Indicator Board

IND LED

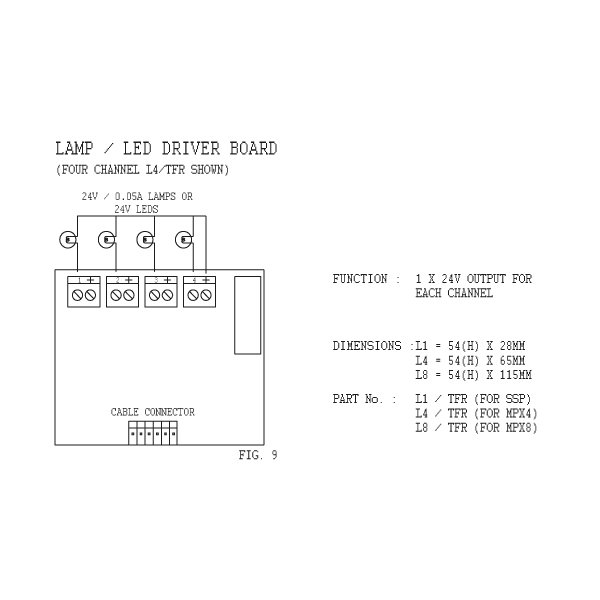

TFR Indicator Board

IND TFR

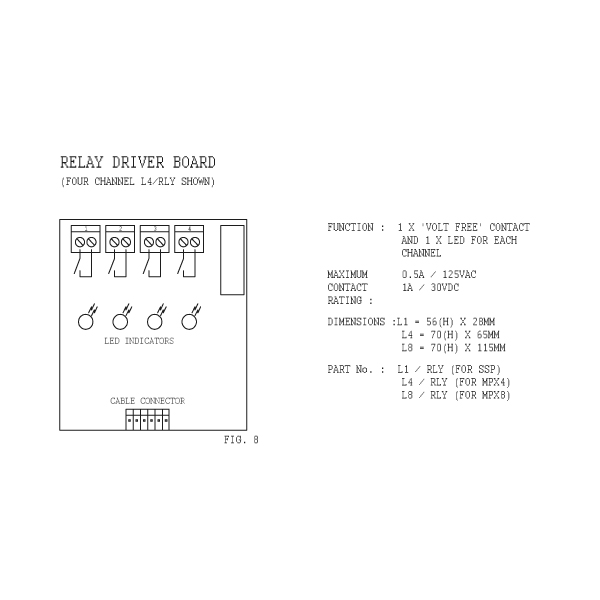

RLY Indicator Board

IND RLY

Technical Specifications
Construction Open PCB
Indication LED, Remote LED/Lamp, Relay
IP Rating na
Weight na
Mounting Right Angle Bracket
Cable Length Pre-wired connector to control board
Environmental Specifications
Operating Temperature 0°C to 45°C
Storage Temperature -20°C to 60°C
Safety Related Data
File Title File Name Download File
MECHAN MPX v4 INSTALLATION GUIDE 303-400V3-MECHAN-MPX-v4-INSTALLATION-GUIDE.pdf PDF (105 KB)
IND RLY IND-RLY.jpg JPG (42 KB)
